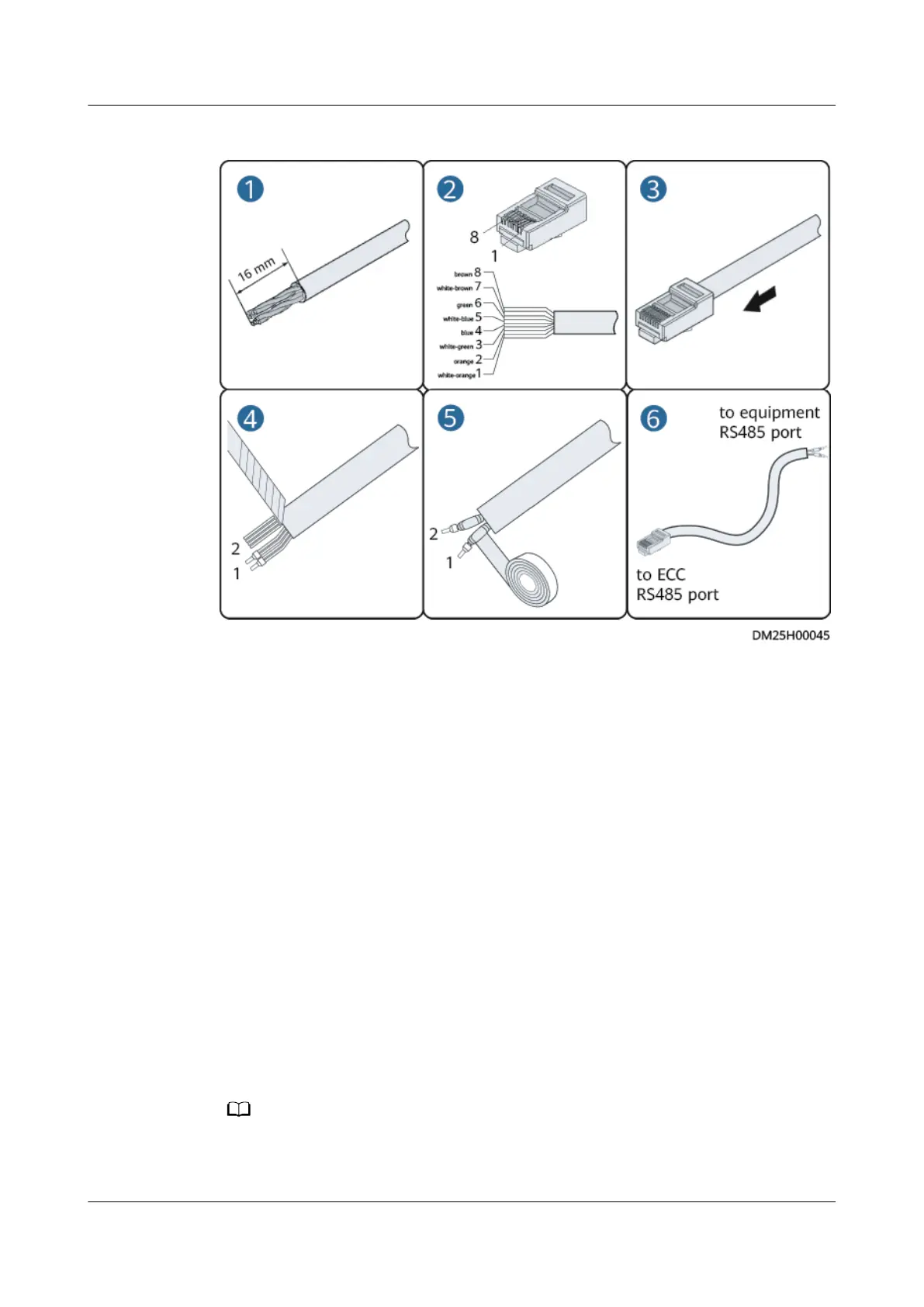

Figure 4-20 Preparing the RS485 monitoring cable for ECC800-Pro collector
Preparing a Dry Contact Monitoring Cable
The method of preparing a dry contact monitoring cable is similar to the method
of preparing the RS485 monitoring cable. Prepare cord end terminals on both ends
of each required core wire based on the number of dry contacts.
4.3.2 ECC800-Pro
4.3.2.1 Product
Conguration
The ECC800-Pro data center controller is mainly used to monitor the devices and
environment in a data center. It consists of the power module and main control
module, which are pluggable.
You can
congure the ECC800-Pro collector in the following two manners:
Conguration 1 (typical conguration): one power module and one main control
module
Conguration 2: two power modules and one main control module.
NO TE
● In conguration 1, install a ller panel in slot 2.
● In
conguration 2, install power modules in slots 1 and 2.
iMaster NetEco
Device Installation and Commissioning Guide (Data
Center) 4 Connecting Monitoring Cables to Devices
Issue 02 (2021-05-12) Copyright © Huawei Technologies Co., Ltd. 90
