Step 3 Install the baseplate, as shown by (3) in Figure 3-76.
Step 4 Route the ngerprint and card reader cable through the cable hole in the
baseplate, as shown by (4) in Figure 3-76.
The ngerprint and card reader is connected to the access actuator by a network cable.
Step 5 Check that cables are correctly connected.
Step 6 Secure the
ngerprint and card reader to the baseplate, as shown by (5) and (6)
in Figure 3-76.

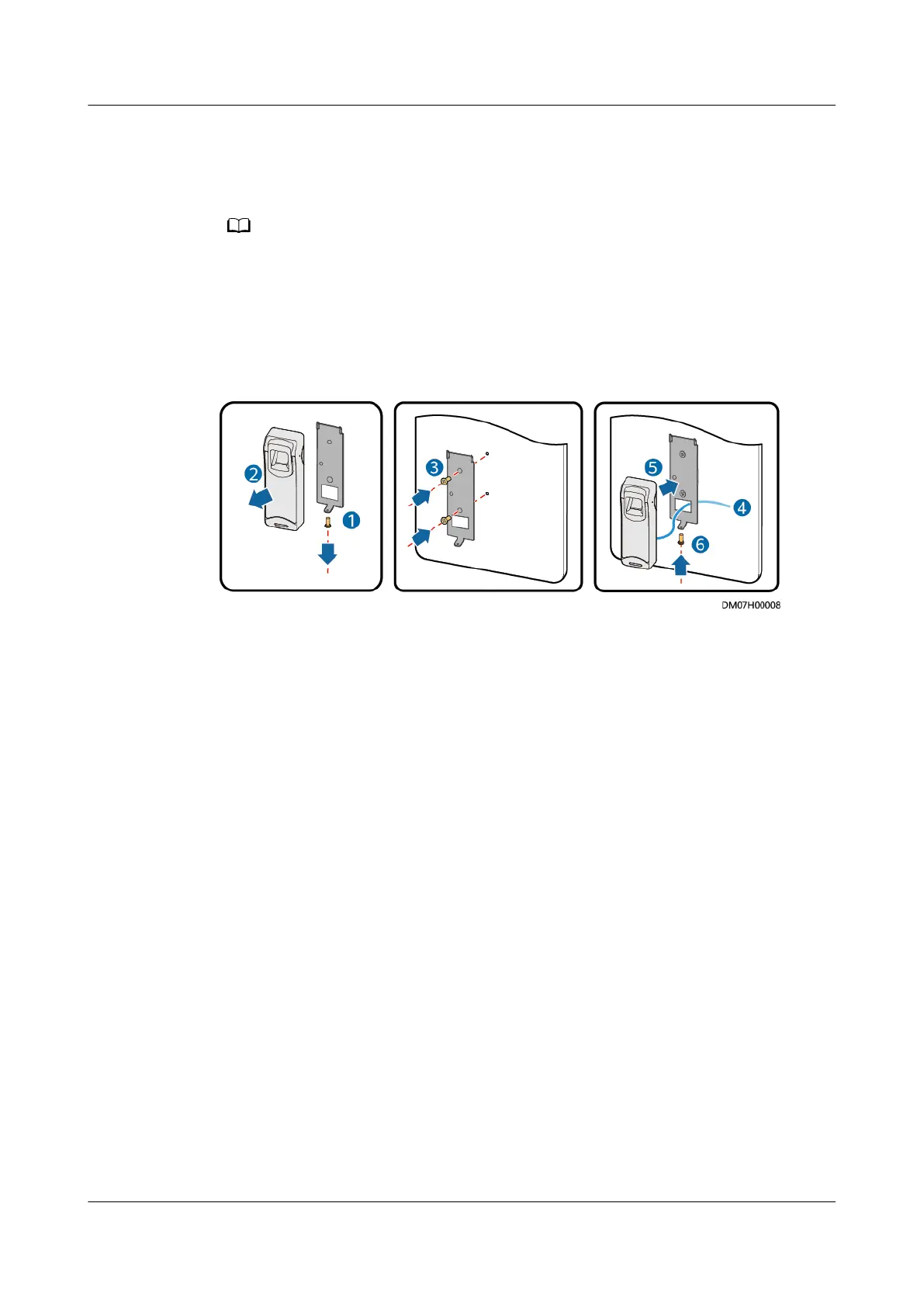

Figure 3-76 Installing a ngerprint and card reader
----End
3.9.6 Installing a Card Reader with a Keypad
Context
● It is recommended that the product be installed 30–300 mm close to the
equipment room door and 1.4–1.6 m above the
oor.
● Do not install the product in a place with heavy dust or exposed to sunlight.
Procedure
Step 1 Remove the screws (set aside) from the card reader with a keypad and remove the
baseplate, as shown by (1) in Figure 3-78.
Step 2 Mark the mounting holes using a marker, and drill holes using a hammer drill.
iMaster NetEco
Device Installation and Commissioning Guide (Data
Center) 3 Installing Devices
Issue 02 (2021-05-12) Copyright © Huawei Technologies Co., Ltd. 63
