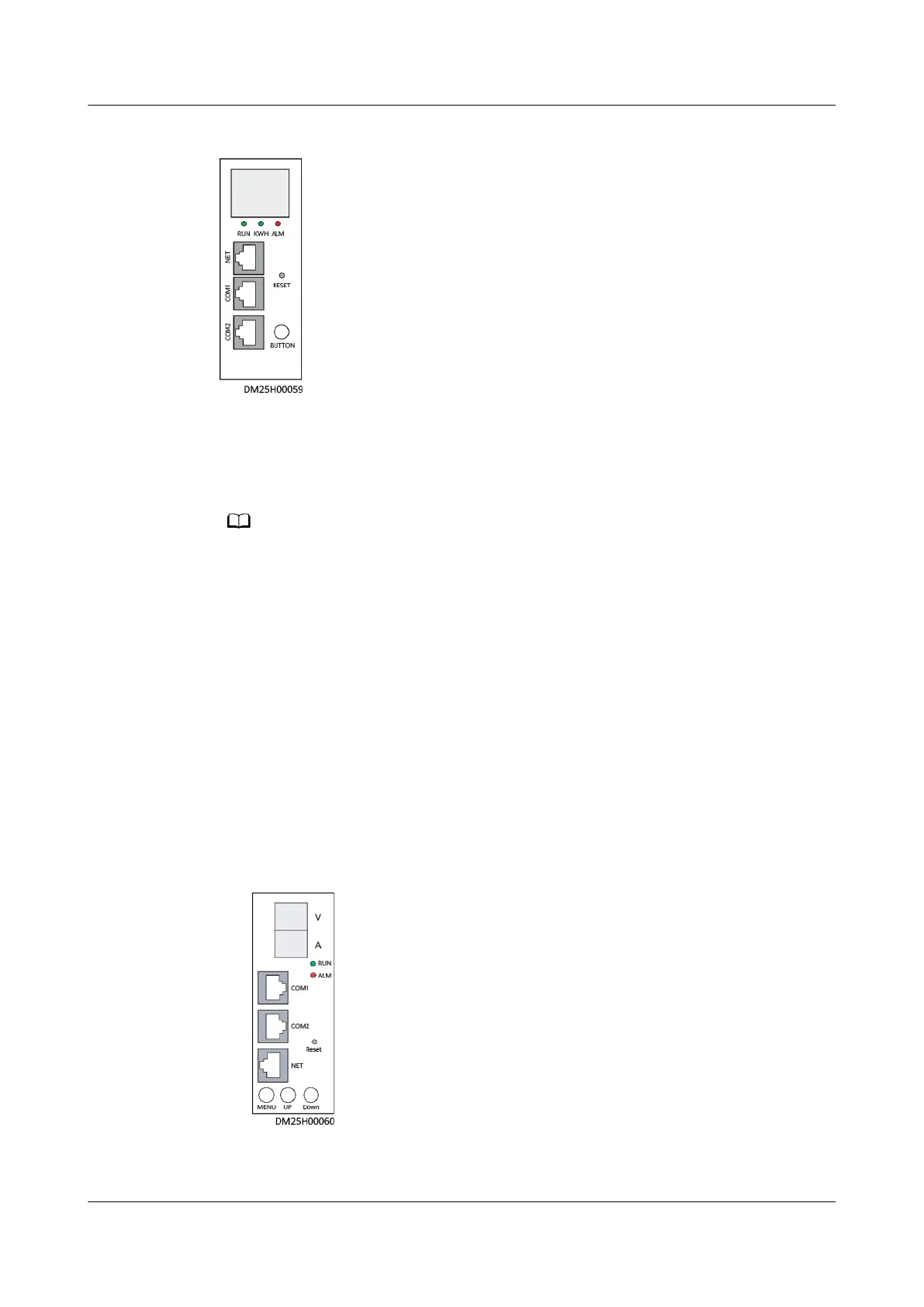

Figure 4-57 PDU2000 ports
Step 2 Connect the other end of the network cable to the COM port on the ECC800-Pro
collector or the UIM20A expansion module.
Step 3 (Optional) If multiple PDU2000s need to be cascaded, connect the COM1 or
COM2 port of one PDU2000 to the COM1 or COM2 port on the next PDU2000.
NO TE
A maximum of four PDU2000s can be cascaded.
----End
4.3.10.3 Connecting a Monitoring Cable to an HPXPDU2000-16-3PH-24-6-M1
Prerequisites
A network cable used for monitoring is prepared.
Procedure
Step 1 Connect the monitoring cable.
1. Connect one end of the network cable to port COM1 or COM2 on the
PDU2000. Figure 4-58 shows the ports on the PDU2000.
Figure 4-58 PDU2000 ports
2. Connect the other end of the network cable to the COM port on the ECC800-
Pro collector or the UIM20A expansion module.
