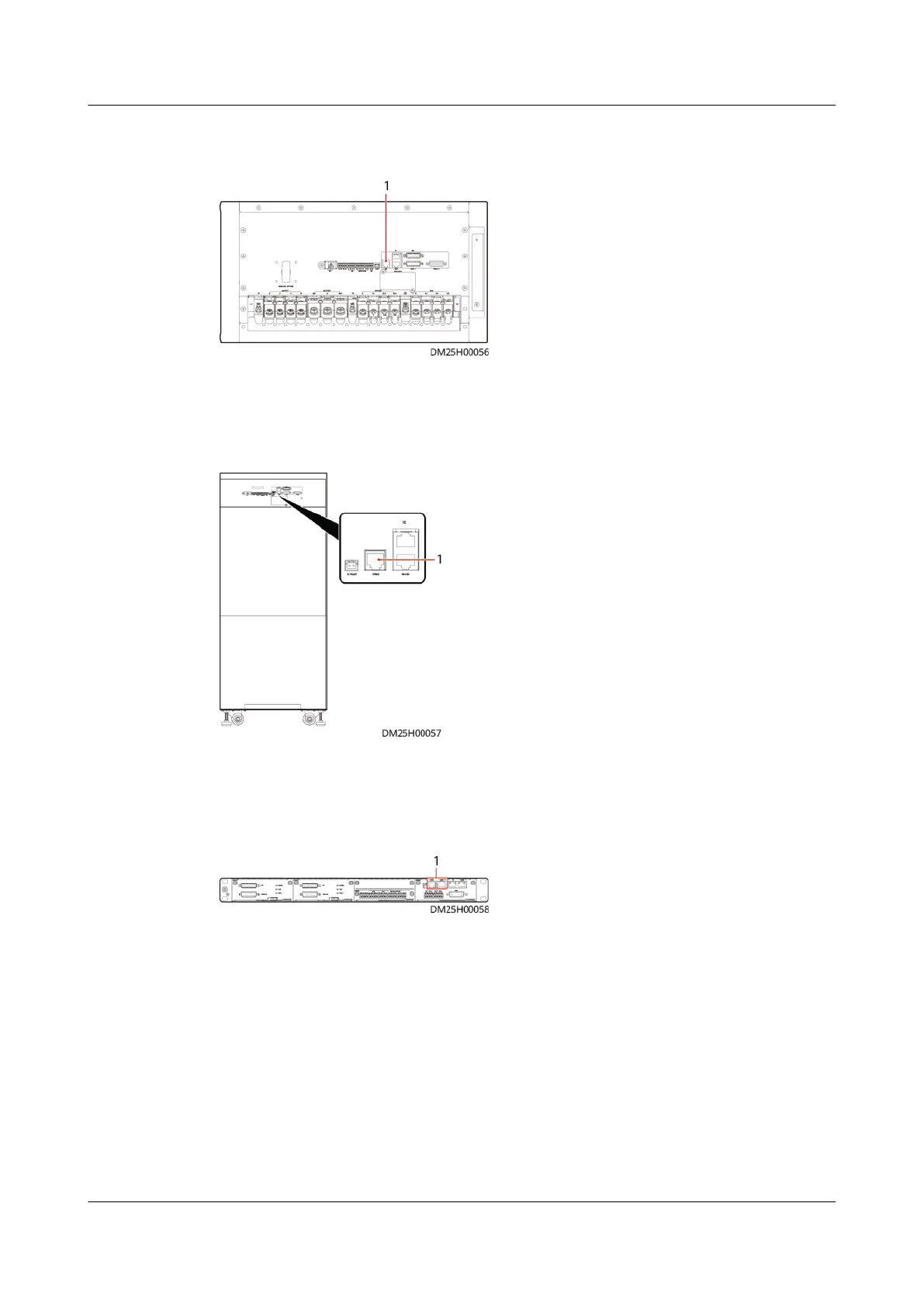

Figure 4-53 UPS5000-A-30 kVA/40 kVA functional components and control signal
ports
(1) COM port
Figure 4-54 UPS5000-A-60 kVA/80 kVA/120 kVA functional components and
control signal ports
(1) COM port
Figure 4-55 COM port on the UPS monitoring module of the 300 kVA UPS and
models with higher capacities
(1) COM port
Step 2 Connect one end of the network cable to the COM port on the ECC800-Pro
collector or the UIM20A expansion module.
----End
4.3.9.3 Connecting a Monitoring Cable to the UPS5000-E/UPS5000-S
Prerequisites
A network cable used for monitoring is prepared.
iMaster NetEco
Device Installation and Commissioning Guide (Data
Center) 4 Connecting Monitoring Cables to Devices
Issue 02 (2021-05-12) Copyright © Huawei Technologies Co., Ltd. 129
