Procedure
Step 1 Connect one end of a network cable to the FE port on the UPS5000-E/UPS5000-S
monitoring module.
Step 2 Connect the other end of the network cable to the COM port on the ECC800-Pro
collector or the UIM20A expansion module.
----End
4.3.10 Connecting the PDC Monitoring Cable
4.3.10.1 Connecting the PDU8000 Monitoring Cable
Prerequisites
A network cable used for monitoring is prepared.
Procedure
Step 1 Connect one end of the network cable to the COM port in the display panel of
PDU8000.

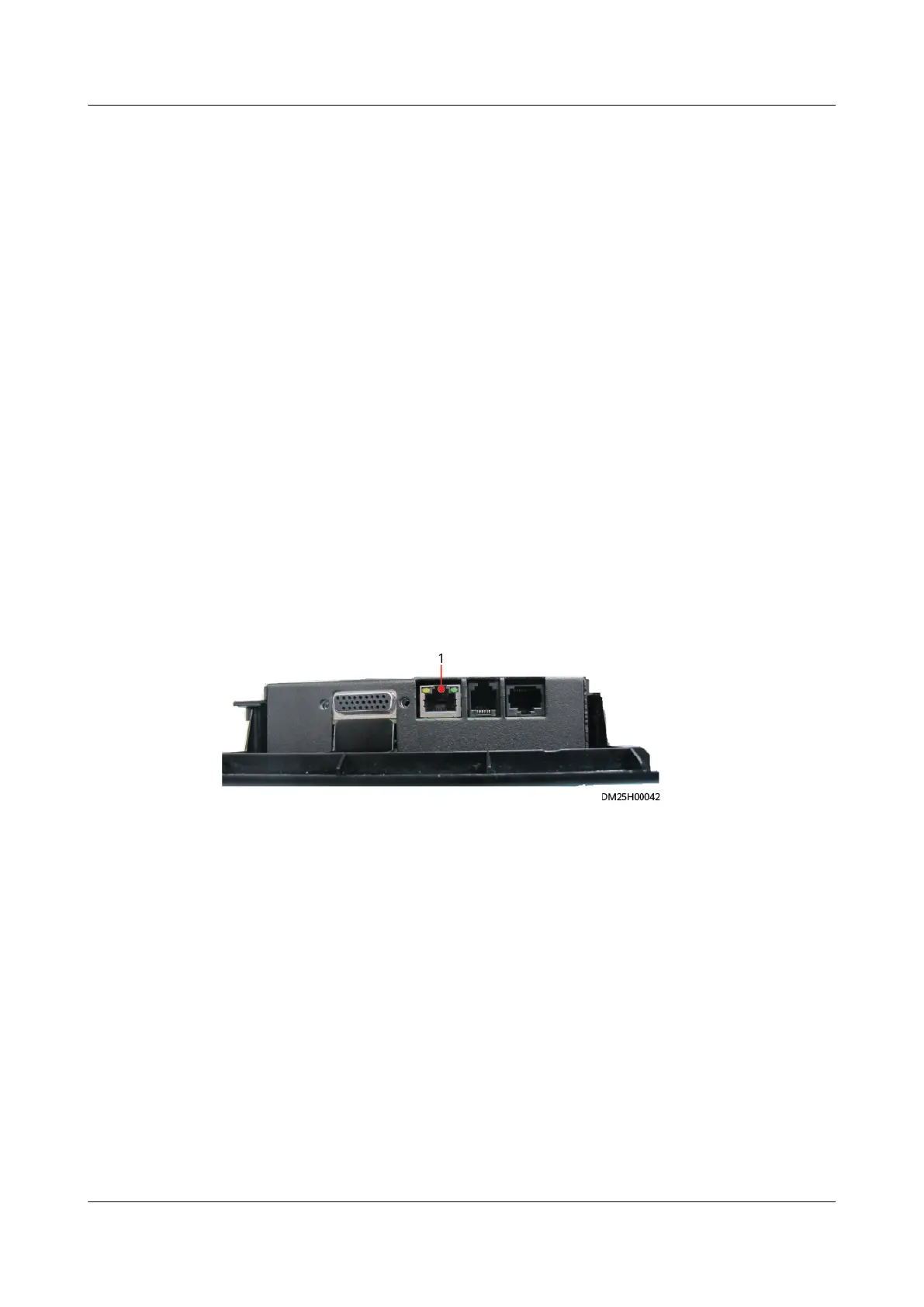

Figure 4-56 Connecting the PDU8000 monitoring cable (COM port)
(1) COM port
Step 2 Connect the other end of the network cable to the COM port on the ECC800-Pro
collector or the UIM20A expansion module.
----End
4.3.10.2 Connecting a Monitoring Cable to the Monitoring Type-
PDU2000-32-1PH-20/4-M1
Prerequisites
A network cable used for monitoring is prepared.
Procedure
Step 1 Connect one end of the network cable to the COM1 port or the COM2 port on the
PDU2000.
