3.9.4 Installing a Fingerprint and Card Reader with a Keypad
Context
● It is recommended that the product be installed 30–300 mm close to the
equipment room door and 1.4–1.6 m above the oor.
● Do not install the product in a place with heavy dust or exposed to sunlight.
Procedure
Step 1 Remove the screws (set aside) from the
ngerprint and card reader with a keypad
and remove the baseplate, as shown by (1) in Figure 3-74.
Step 2 Mark the mounting holes using a marker, and drill holes using a hammer drill.

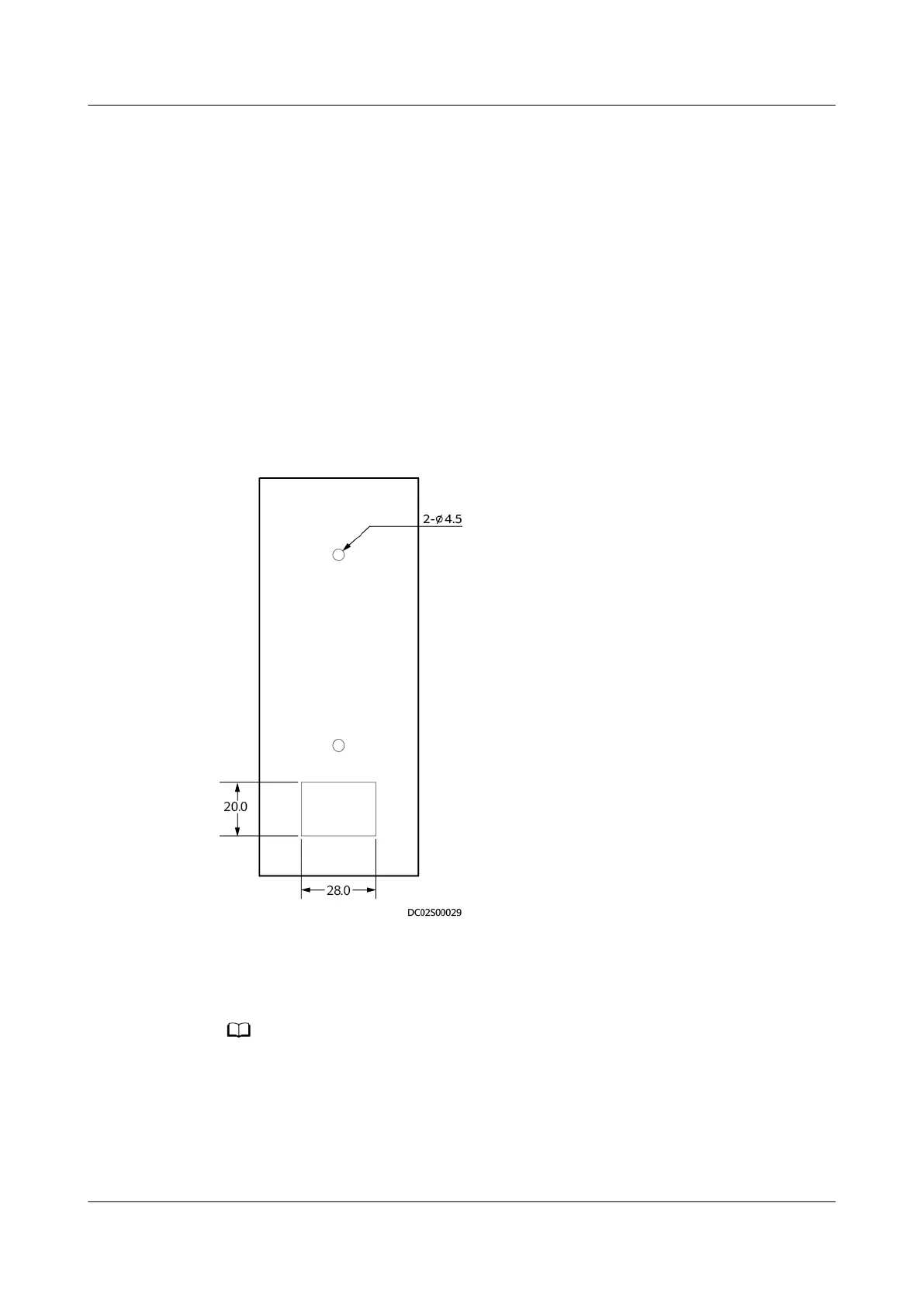

Figure 3-73 Marking mounting holes (unit: mm)
Step 3 Install the baseplate, as shown by (3) in Figure 3-74.
Step 4 Route the cable of the ngerprint and card reader with a keypad through the
cable hole in the baseplate, as shown by (4) in Figure 3-74.
NO TE
The ngerprint and card reader with a key pad is connected to the access actuator by a
network cable.
Step 5 Check that cables are correctly connected.
Step 6 Secure the ngerprint and card reader with a keypad to the baseplate, as shown
by (5) and (6) in Figure 3-74.
