Huawei iMaster NetEco V600R021C10 - Connecting a Monitoring Cable to TP483000 D;TP482000 B; Connecting a Monitoring Cable to an Ibox

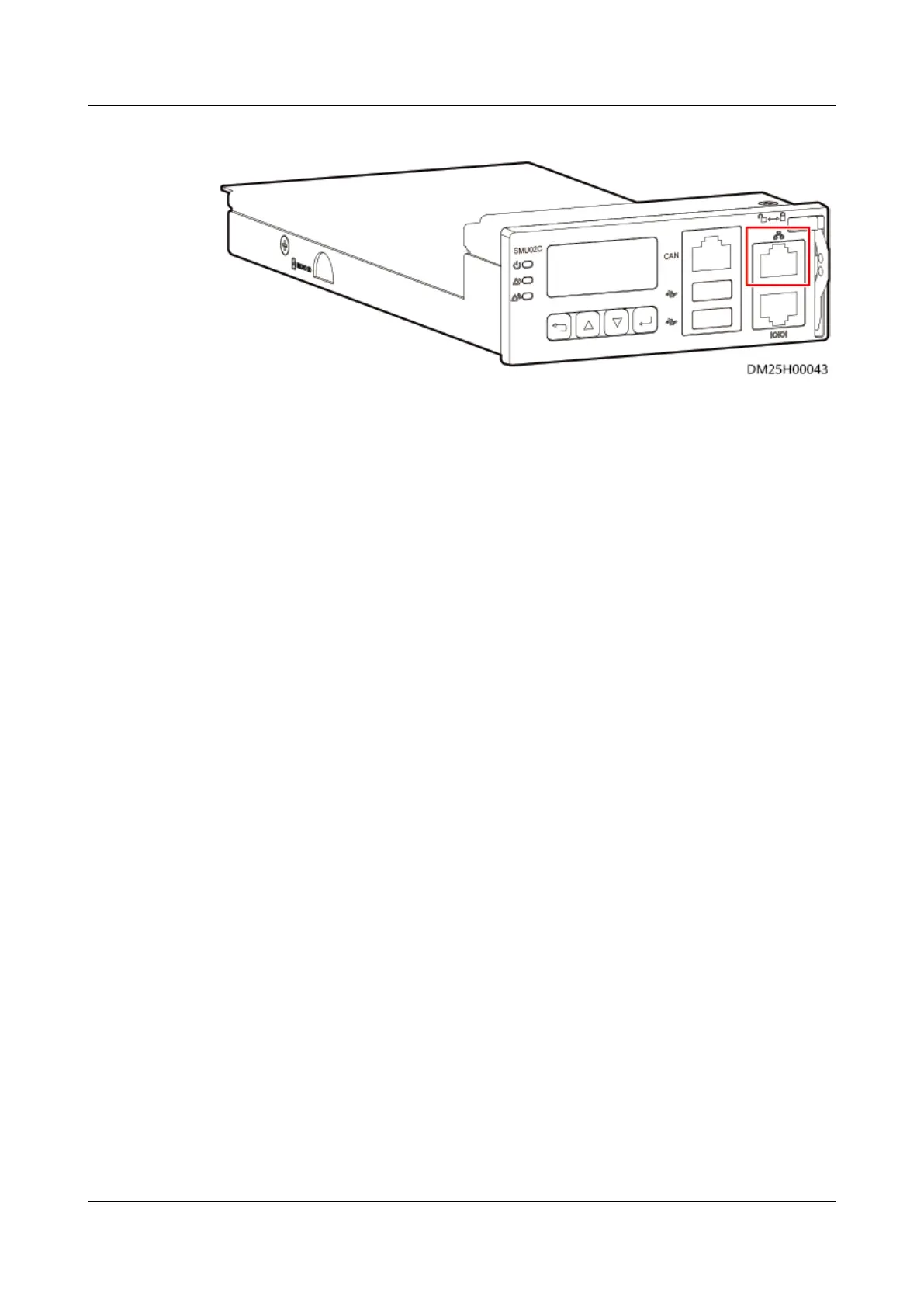

Figure 4-18 FE communications port
Step 2 Connect the other end of the network cable to the Ethernet port on the LAN
switch.
----End
4.2.9 Connecting a Monitoring Cable to TP483000D/
TP482000B
Prerequisites
A network cable used for monitoring is prepared.
Procedure
Step 1 Connect one end of the network cable to the FE port on TP483000D/TP482000B.
Step 2 Connect the other end of the network cable to the Ethernet port on the LAN
switch.
----End
4.2.10 Connecting a Monitoring Cable to an iBOX
Prerequisites
A network cable used for monitoring is prepared.
Procedure
Step 1 Connect one end of the network cable to the PoE port on the iBOX.
Step 2 Connect the other end of the network cable to the Ethernet port on the LAN
switch.
----End
iMaster NetEco
Device Installation and Commissioning Guide (Data
Center) 4 Connecting Monitoring Cables to Devices
