Pin Denition
Pin 7 (brown-and-white) -
Pin 8 (brown) GND
Step 4 Tear o the protection paper on the rear of the fastener, then securely attach the
fastener to the
oor.

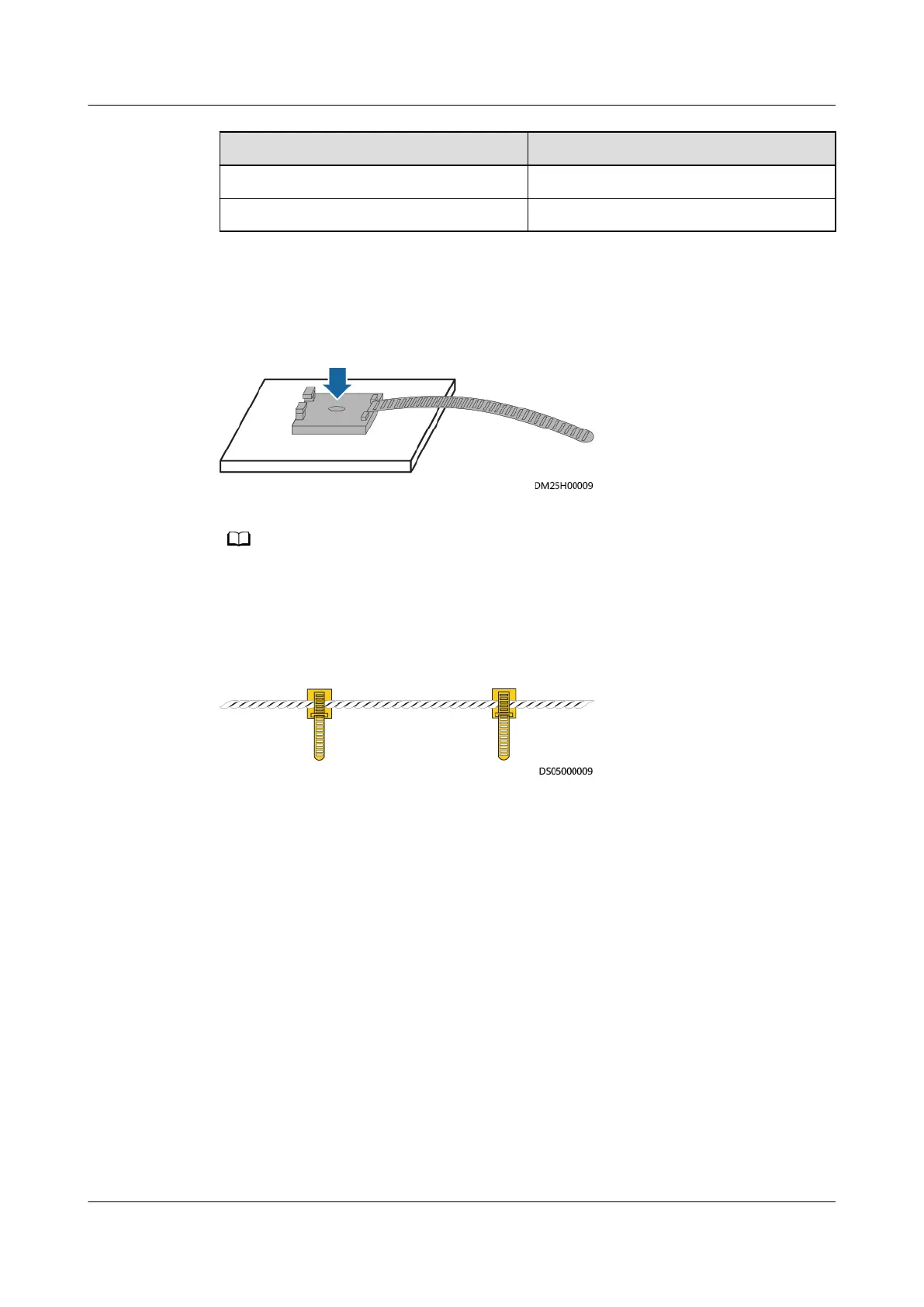

Figure 3-36 Installing a fastener
15 fasteners are furnished with the device.
Step 5 Place the water detection cable onto the fastener, secure the fastener, and keep
the water detection cable in close contact with the
oor.
Figure 3-37 Securing a water detection cable
----End
3.8 Installing the Video Management System
3.8.1 Installing an IVS1800
Context
By default, the IVS1800 is delivered without disks. After the IVS1800 is delivered to
the site, install hard disks as required and then install the IVS1800 in the cabinet.
Procedure
Step 1 Install hard disks.
1. Use a PH2 screwdriver to remove the two black screws on the rear of the
chassis cover, and take o the chassis cover.
iMaster NetEco
Device Installation and Commissioning Guide (Data
Center) 3 Installing Devices
Issue 02 (2021-05-12) Copyright © Huawei Technologies Co., Ltd. 42
