Step 2 Install the ambient temperature and humidity sensor to the position specied on
the wall, and secure it using bolts.
Step 3 Reinstall the front cover for the temperature and humidity sensor.

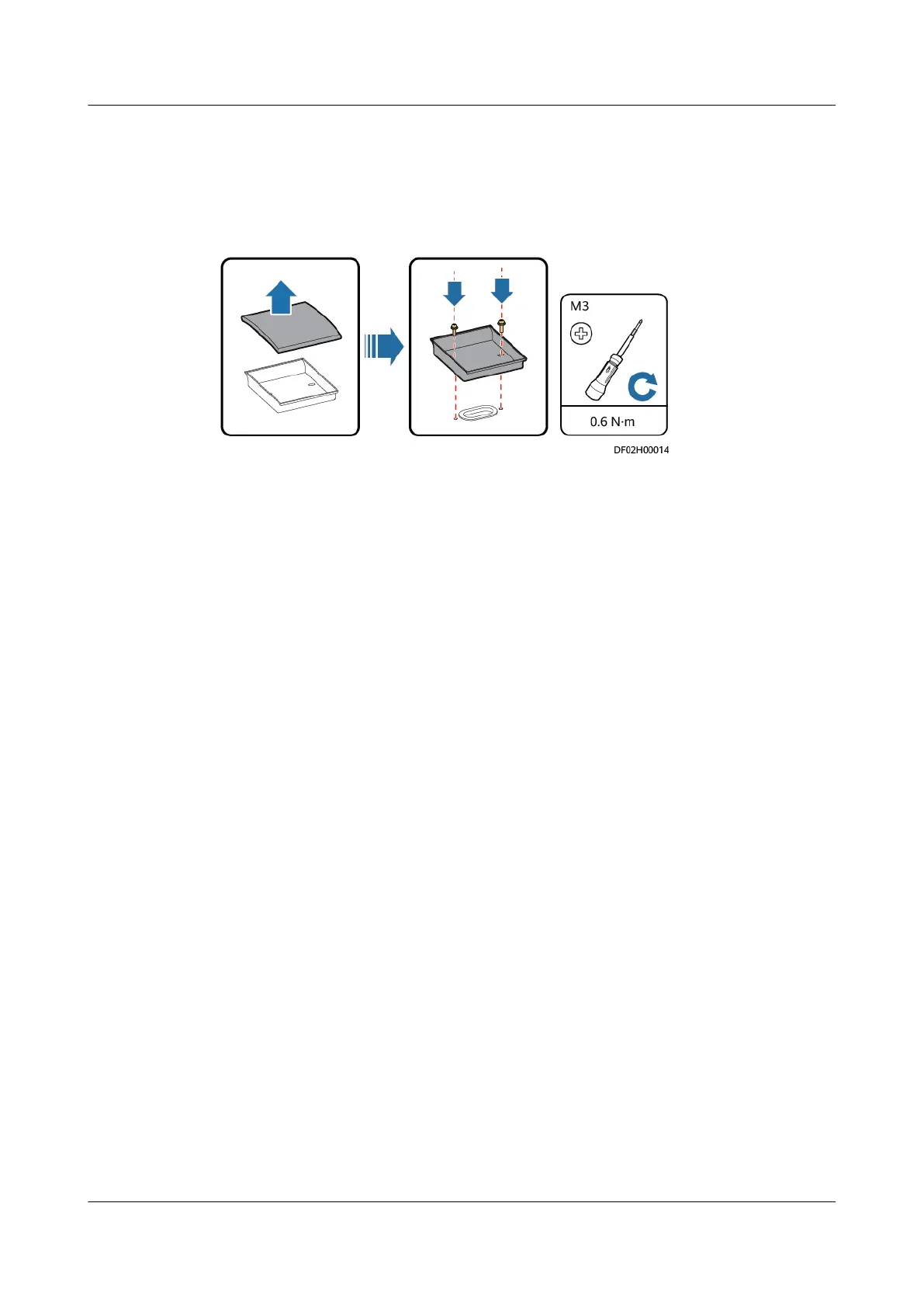

Figure 3-25 Installing the temperature and humidity sensor
----End
3.7.6 Installing a Temperature and Humidity Sensor (BOM
Number: 02312PBL)
Prerequisites
A temperature and humidity sensor (BOM number: 02312PBL) and tools for
installing it have been prepared.
Context
● For details about how to install an ambient temperature and humidity sensor
and connect its cables, see shipped documents.
● Connect cables to an ambient temperature and humidity sensor before
installation.
Preparations
Tool: Phillips screwdriver
Materials: temperature and humidity sensor, temperature and humidity sensor
base
Document: temperature and humidity sensor installation position diagram
Procedure
Step 1 Install the T/H sensor base at the right column position of the IT cabinet about 1.6
m high above the
oor in the aisle, and then clamp the T/H sensor onto the base.
Step 2 Set device addresses for the T/H sensors.
Set the device address for a T/H sensor by operating the DIP switch on the sensor.
Toggle switches 1–6 are used to set the device address, toggle switch 7 is reserved,
and toggle switch 8 is used to switch the temperature display mode. The device
iMaster NetEco
Device Installation and Commissioning Guide (Data
Center) 3 Installing Devices
Issue 02 (2021-05-12) Copyright © Huawei Technologies Co., Ltd. 35
