BOM
Number
BOM Description Cable Position
14180327 Terminal Block, 4-Pin, Screw Fixed,
24–12 AWG, Pitch 5.08 mm, Male and
Female Using Together, Only for
Power Supply
25031053 Electric Cable, 300V, UL2464,
7x20AWG, Black(7Cores: Red, Black,
Yellow, Green, Orange, White, Blue),
9A, Non-shielding Cable, UL
Cable from the card
reader to the access
controller
14180327 Terminal Block, 4-Pin, Screw Fixed,
24–12 AWG, Pitch 5.08 mm, Male and
Female Using Together, Only for
Power Supply
25030393 Electric Cable, 300V/500V, 60227 IEC
53(RVV), 2x0.75mm
2
, Black(2Cores:
Brown, Blue), 6A, Flat Outdoor Cable,
CCC, CE
Cable from the door exit
button to the access
controller
4.3.5.2 Connecting a Monitoring Cable to the Door Status Sensor
Prerequisites
A monitoring cable required is prepared.
Context
When connecting the door status sensor to an ECC800-Pro collector or a UIM20A
expansion module, you need to perform the following steps to prepare a special
monitoring cable.
Procedure
Step 1 Open the door status sensor, connect two cables, as shown in Figure 4-35.

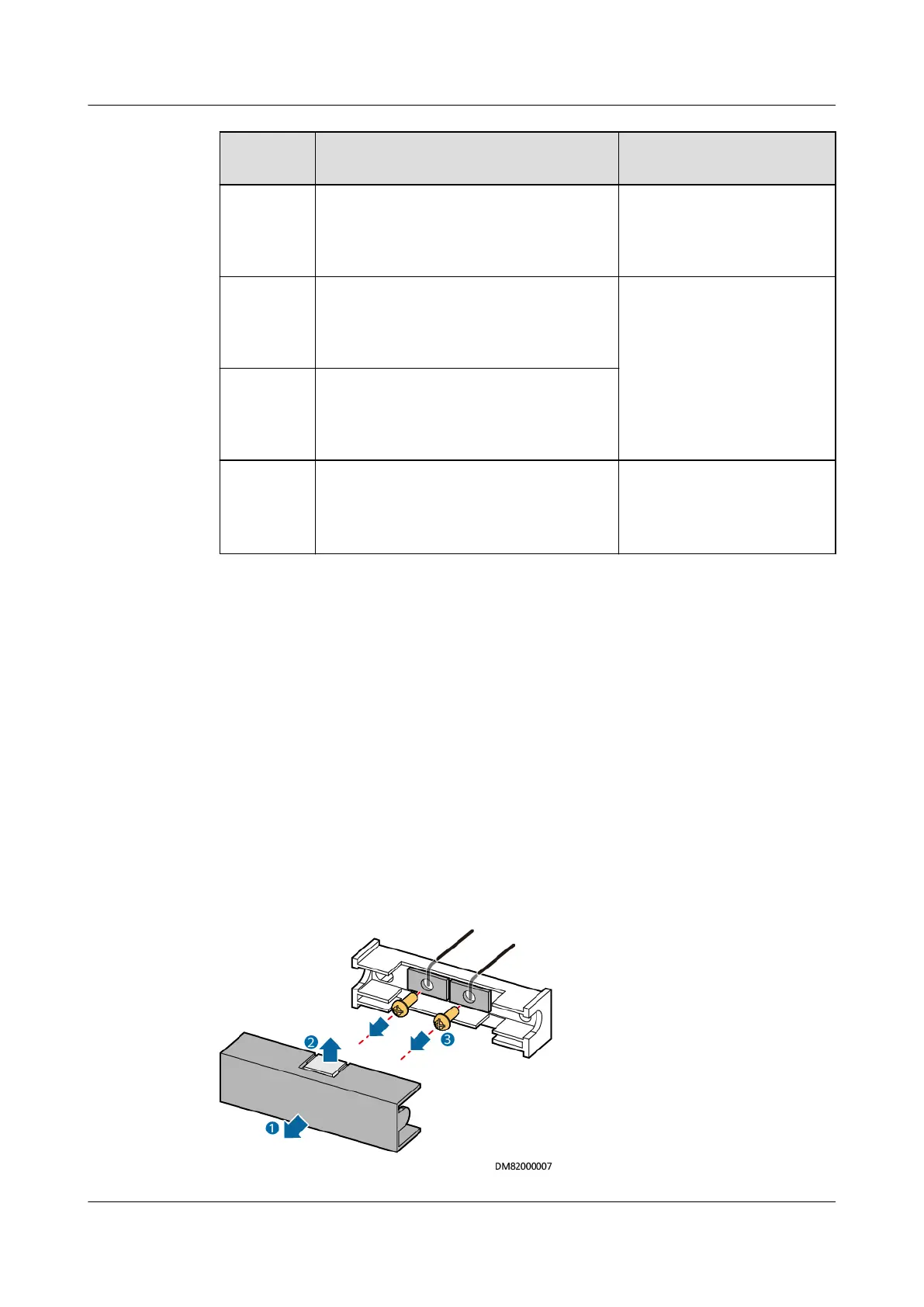

Figure 4-35 Connecting a monitoring cable to the door status sensor
iMaster NetEco
Device Installation and Commissioning Guide (Data
Center) 4 Connecting Monitoring Cables to Devices
Issue 02 (2021-05-12) Copyright © Huawei Technologies Co., Ltd. 114
