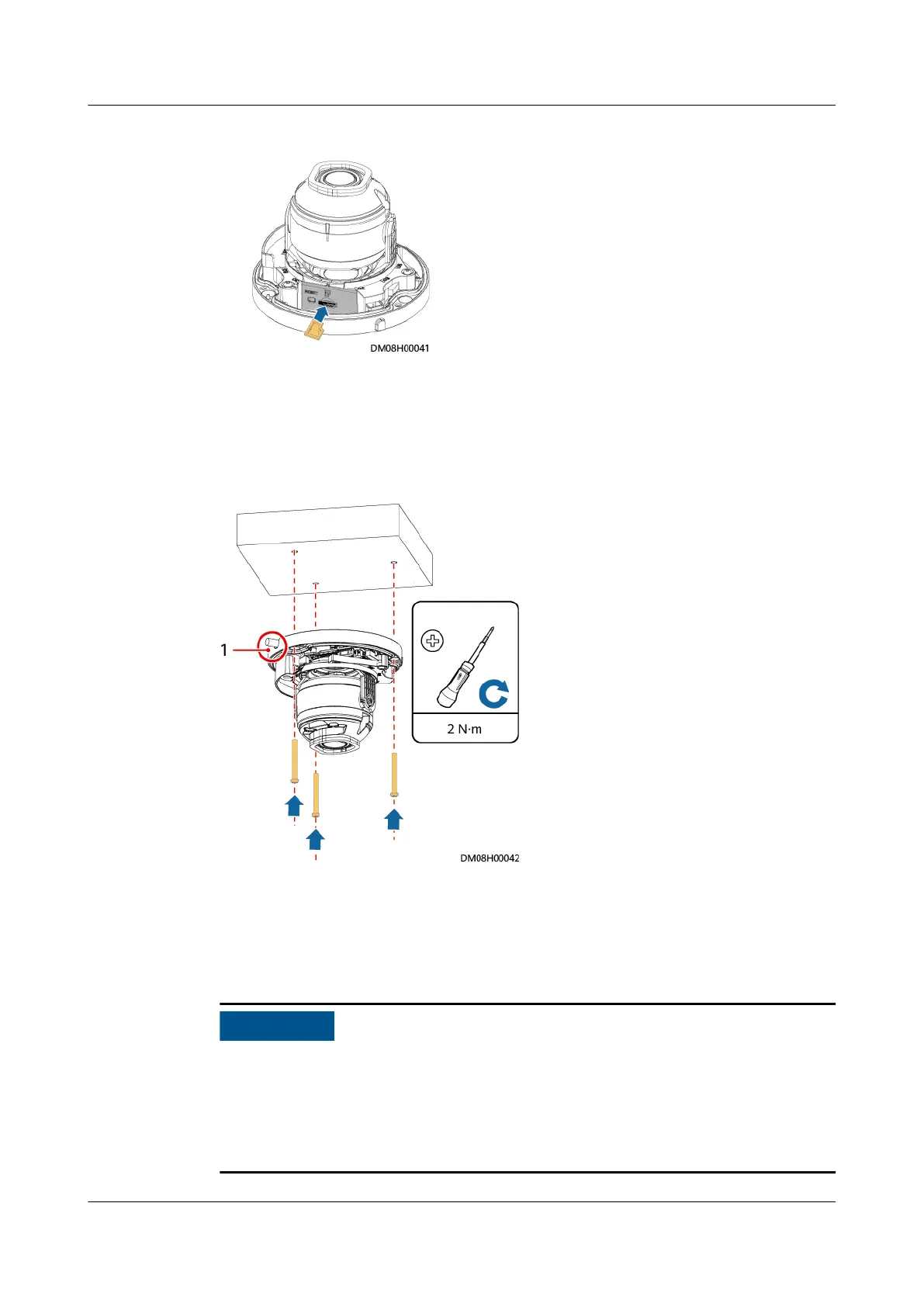

Figure 3-51 Installing an SD card
Step 2 Route the camera cable through the control skylight.
Step 3 Align the holes in the camera base with the holes on the control skylight, and
secure the camera to the control skylight.
Figure 3-52 Installing a camera base
(1) Cable outlet
Step 4
Use a Phillips screwdriver to loosen the screws on both sides of the lens, adjust the
surveillance angle, and tighten the screws to 0.6 N·m.
● By default, the camera is horizontally installed, and the surveillance video is
displayed horizontally. During the installation, adjust the surveillance angle to
avoid video image rotation after the installation.
● When adjusting the surveillance angle, pay attention to the position of the
illuminator to prevent the illuminator from being blocked.
