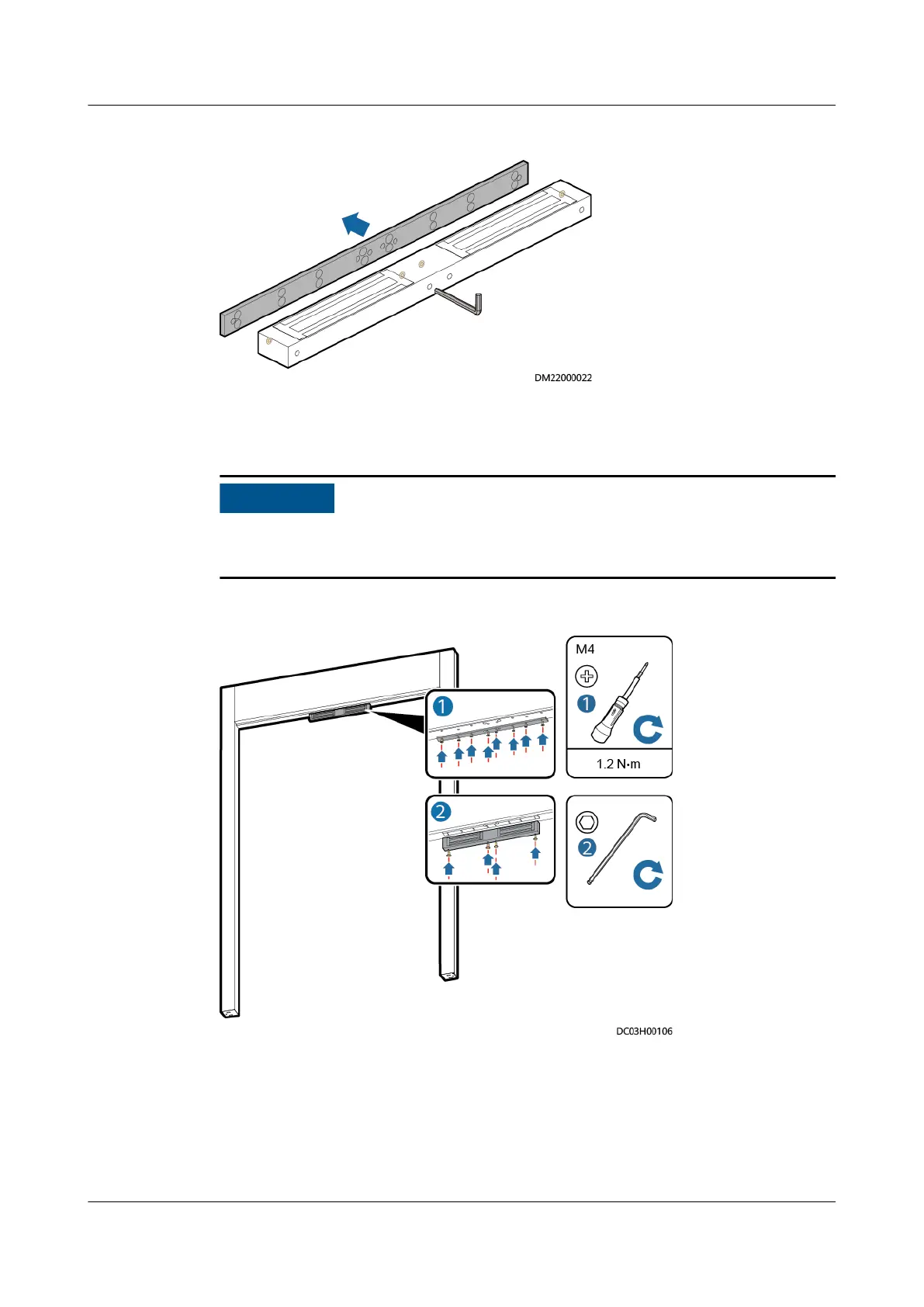

Figure 3-63 Removing a hoisting strip
Step 4 Secure the hosting strip using the delivered screws, as shown by (1) in Figure
3-64.
Pay attention to the direction of the hoisting strip, and ensure that the bulging
surface of the magnetic lock faces the magnet.
Figure 3-64 Installing a magnetic lock
Step 5 Route the electronic lock cable through the cable hole, and secure the electronic
lock using a hex key, as shown by (2) in Figure 3-64.
Step 6 Install the magnet.
1. Take out the magnet, and knock the positing pins of the magnet into the
magnet using a rubber mallet.
iMaster NetEco
Device Installation and Commissioning Guide (Data
Center) 3 Installing Devices
Issue 02 (2021-05-12) Copyright © Huawei Technologies Co., Ltd. 56
