Procedure
Step 1 Connect one end of the network cable to the monitoring port on the smart
cooling product.
● For NetCol8000-A050/A100/C070/C150, open the front door of the cabinet
and connect one end of the network cable to teamwork communications port
1 or 2 on the main control board of the cabinet.

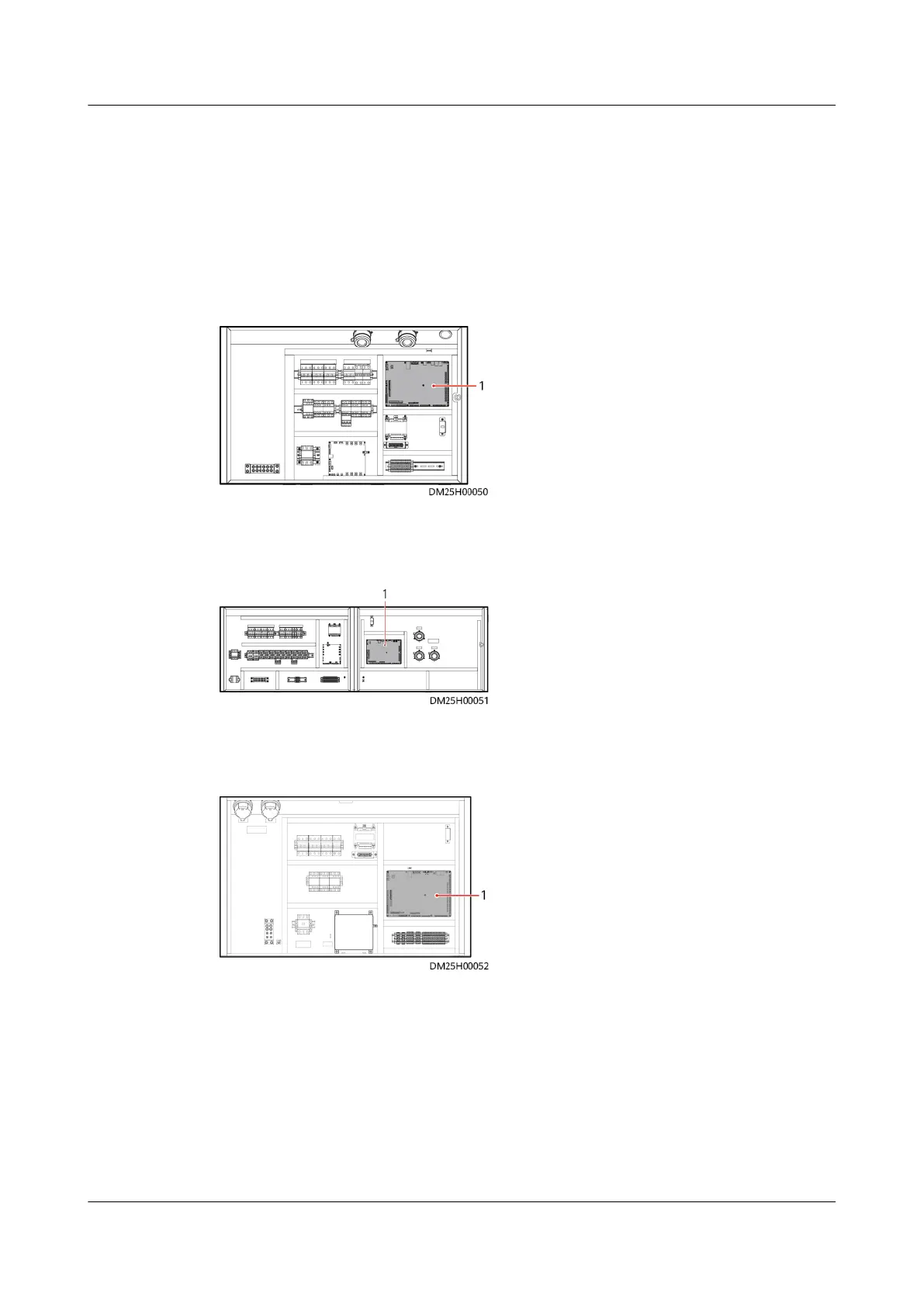

Figure 4-46 Main control board of the NetCol8000-A050
(1) Main control board
Figure 4-47 Main control board of the NetCol8000-A100
(1) Main control board
Figure 4-48 Main control board of the NetCol8000-C070
(1) Main control board
iMaster NetEco
Device Installation and Commissioning Guide (Data
Center) 4 Connecting Monitoring Cables to Devices
Issue 02 (2021-05-12) Copyright © Huawei Technologies Co., Ltd. 125
