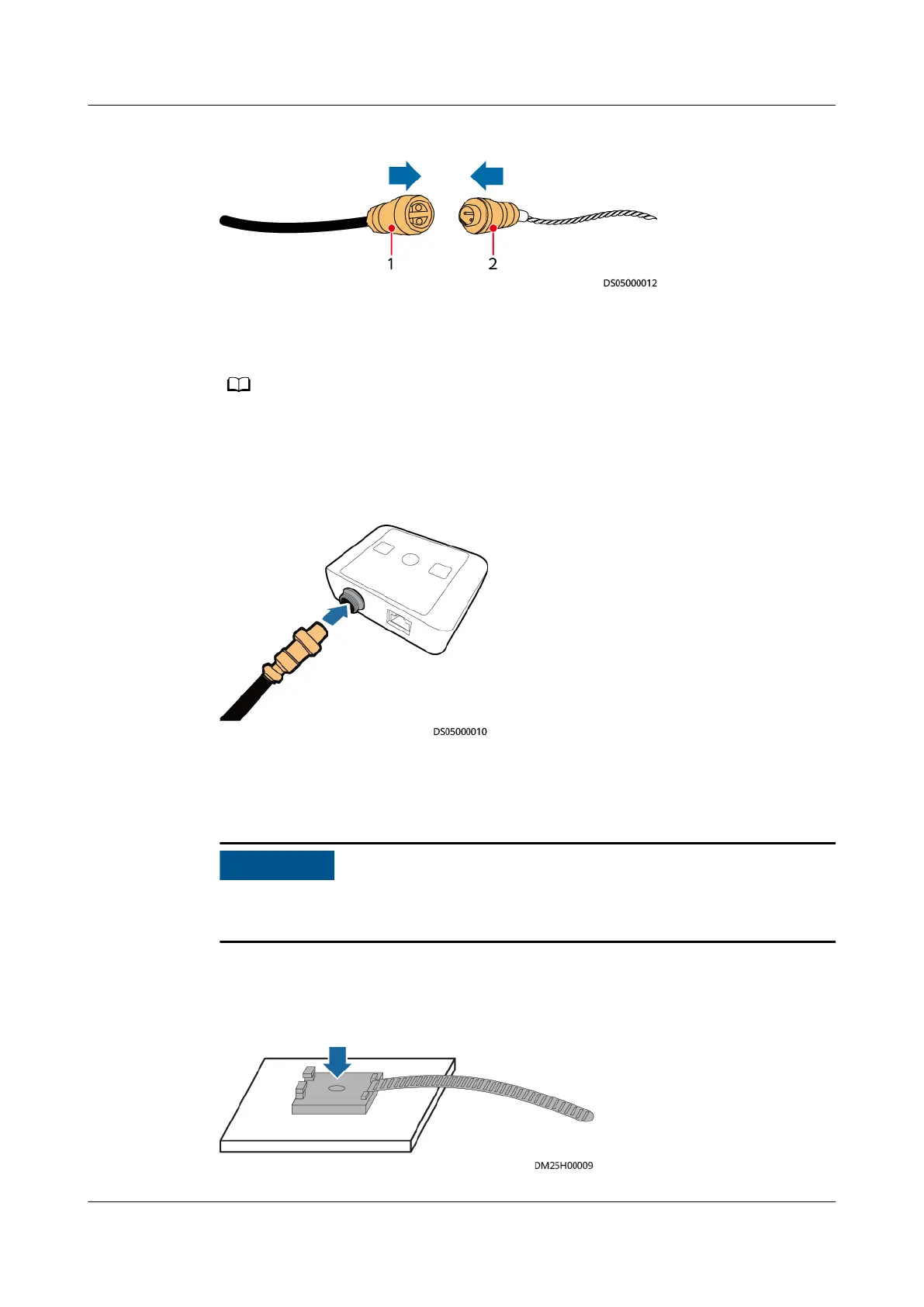

Figure 3-29 Connecting the water detection cable to the conversion cable
(1) Conversion cable end B, connecting to the
water detection cable
(2) Water detection cable end A, connecting to
the conversion cable
The water detection cable and conversion cable are interconnected through the male and
female connectors.
Step 3 Connect the other end of the conversion cable to the water detector.
Figure 3-30 Connecting the water detector
Step 4 Plan the installation position for the fastener of the water detection cable. Ensure
that the water detection cable placed on the fastener is in good contact with the
oor.
Do not contact the water detection cable to metal, for this action will cause a
false alarm. Take protective measures when routing a water detection cable.
Step 5 Tear o the protection paper on the rear of the fastener, then securely attach the
fastener to the oor.
Figure 3-31 Installing a fastener
