6.37.1 Example for Configuring the ICMP Test
Networking Requirements
As shown in Figure 6-3, Switch A and Switch B must be connected at Layer 3 through the
VLANIF interface.
Switch A functions as the NQA client to check whether Switch B is reachable.

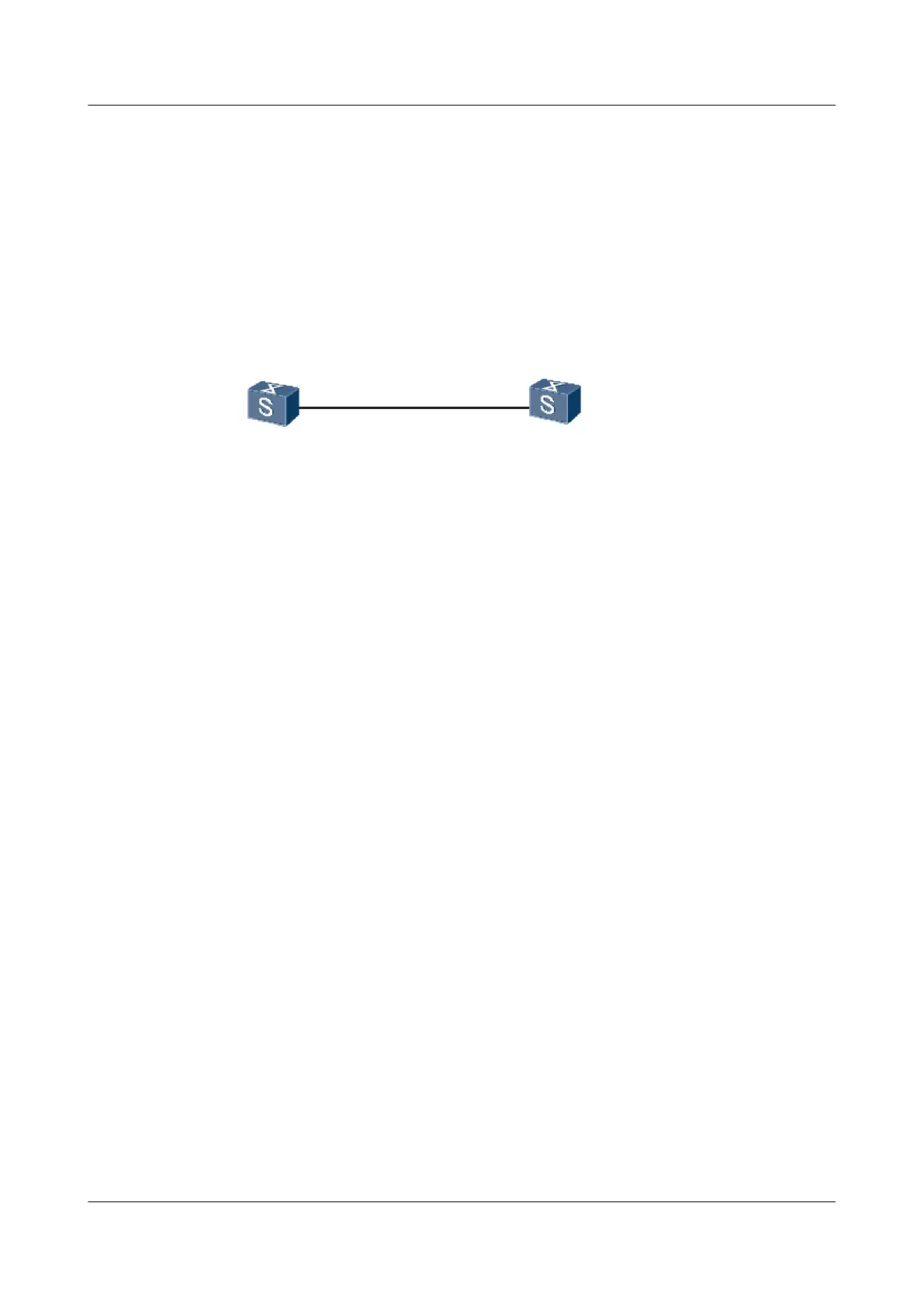

Figure 6-3 Networking diagram for configuring the ICMP test
GE1/0/0
VLANIF10
10.1.1.1/24
VLANIF10
10.1.1.2/24
GE1/0/0
SwitchA
SwitchB
NQA agent
Configuration Roadmap
The configuration roadmap is as follows:
1. Perform the NQA ICMP test to check whether the route between the local end (Switch A)
and the specified destination end (Switch B) is reachable and check the RTT of a test packet.
Data Preparation
To complete the configuration, you need the following data:
l Host address of Switch B
Procedure
Step 1 Create a VLAN and add interfaces to the VLAN.
# Configure Switch A.
<Quidway> system-view
[Quidway] sysname SwitchA
[SwitchA] vlan 10
[SwitchA-Vlan10] quit
[SwitchA] interface gigabitethernet 1/0/0
[SwitchA-GigabitEthernet1/0/0] port hybrid pvid vlan 10
[SwitchA-GigabitEthernet1/0/0] port hybrid untagged vlan 10
[SwitchA-GigabitEthernet1/0/0] quit
# Configure Switch B.
<Quidway> system-view
[Quidway] sysname SwitchB
[SwitchB] vlan 10
[SwitchB-Vlan10] quit
[SwitchB] interface gigabitethernet 1/0/0
[SwitchB-GigabitEthernet1/0/0] port hybrid pvid vlan 10
[SwitchB-GigabitEthernet1/0/0] port hybrid untagged vlan 10
[SwitchB-GigabitEthernet1/0/0] quit
