1.23 Configuration Examples
This section provides several configuration examples of SNMP.
1.23.1 Example for Configuring Basic SNMPv1 Functions
1.23.2 Example for Specifying an NMS to Manage the Switch
1.23.3 Example for Configuring Different NMSs to Access the Switch
1.23.4 Example for Configuring Different NMSs to Access the Switch (Inform Mode)
1.23.5 Example for Configuring Batch Statistics Collection
1.23.6 Example for Enabling the Extended Error Code Function on the SNMP Agent
After configuring the SNMP error code function, the NMS can receive more detailed information
about the router.
1.23.7 Example for Configuring Alarm Messages to Be Sent to the Huawei NMS
1.23.1 Example for Configuring Basic SNMPv1 Functions
Networking Requirements
As shown in Figure 1-3, the NMS accesses the Switch through SNMP and manages the
Switch.

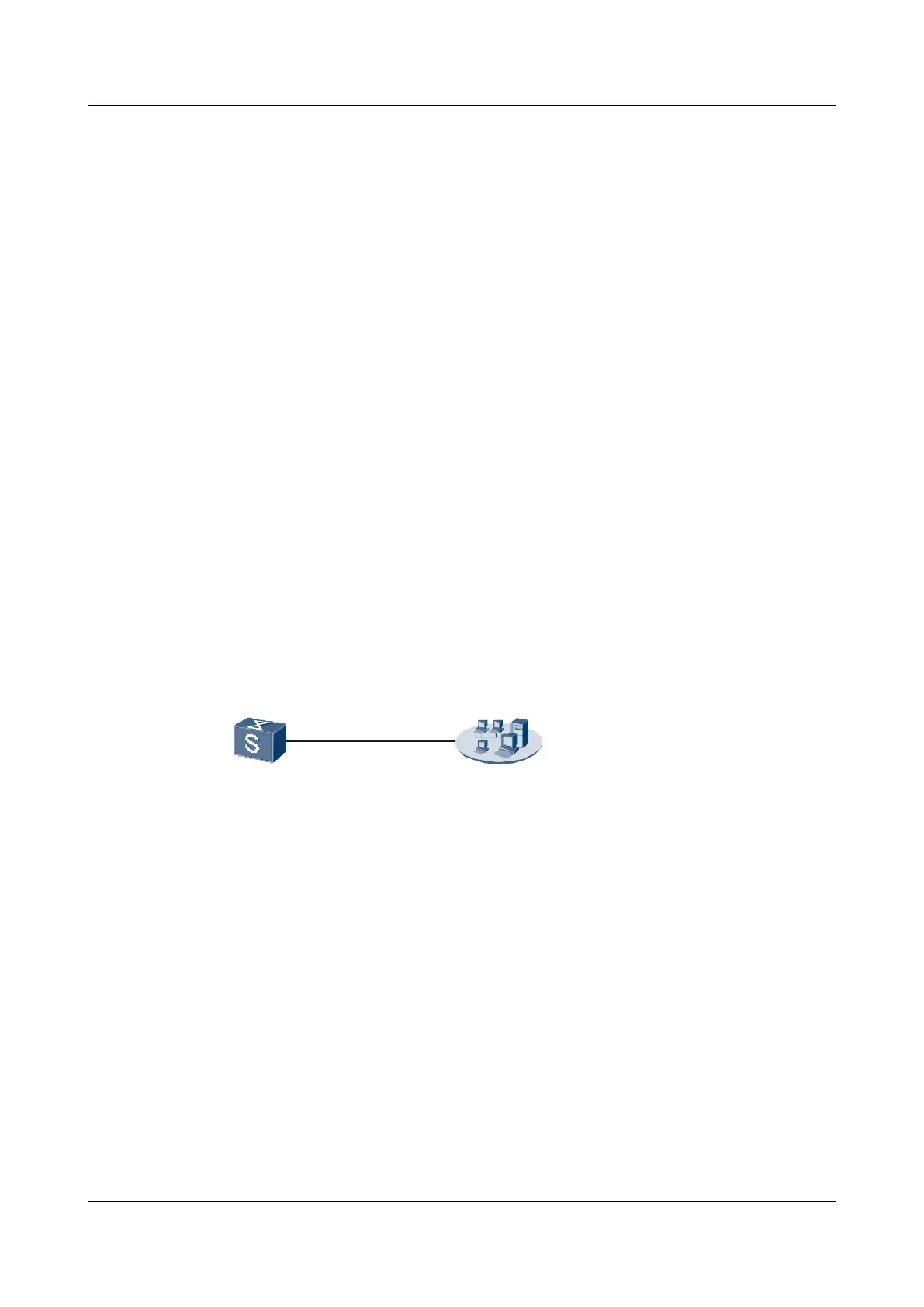

Figure 1-3 Networking diagram for configuring basic SNMP functions
Switch
NM Station
1.1.1.1/24
GE1/0/0
VLANIF100
1.1.1.2/24
Configuration Roadmap
The configuration roadmap is as follows:
1. Assign IP addresses to interfaces.
2. Set the version of SNMP.
3. Set the SNMP community name.
Data Preparation
To complete the configuration, you need the following data:
l IP addresses of interfaces
l SNMP version
