You need to enable MTrace on Switch B to check the RPF path from the multicast source to the
current Switch.
The NQA MTrace test is used to implement the MTrace function.

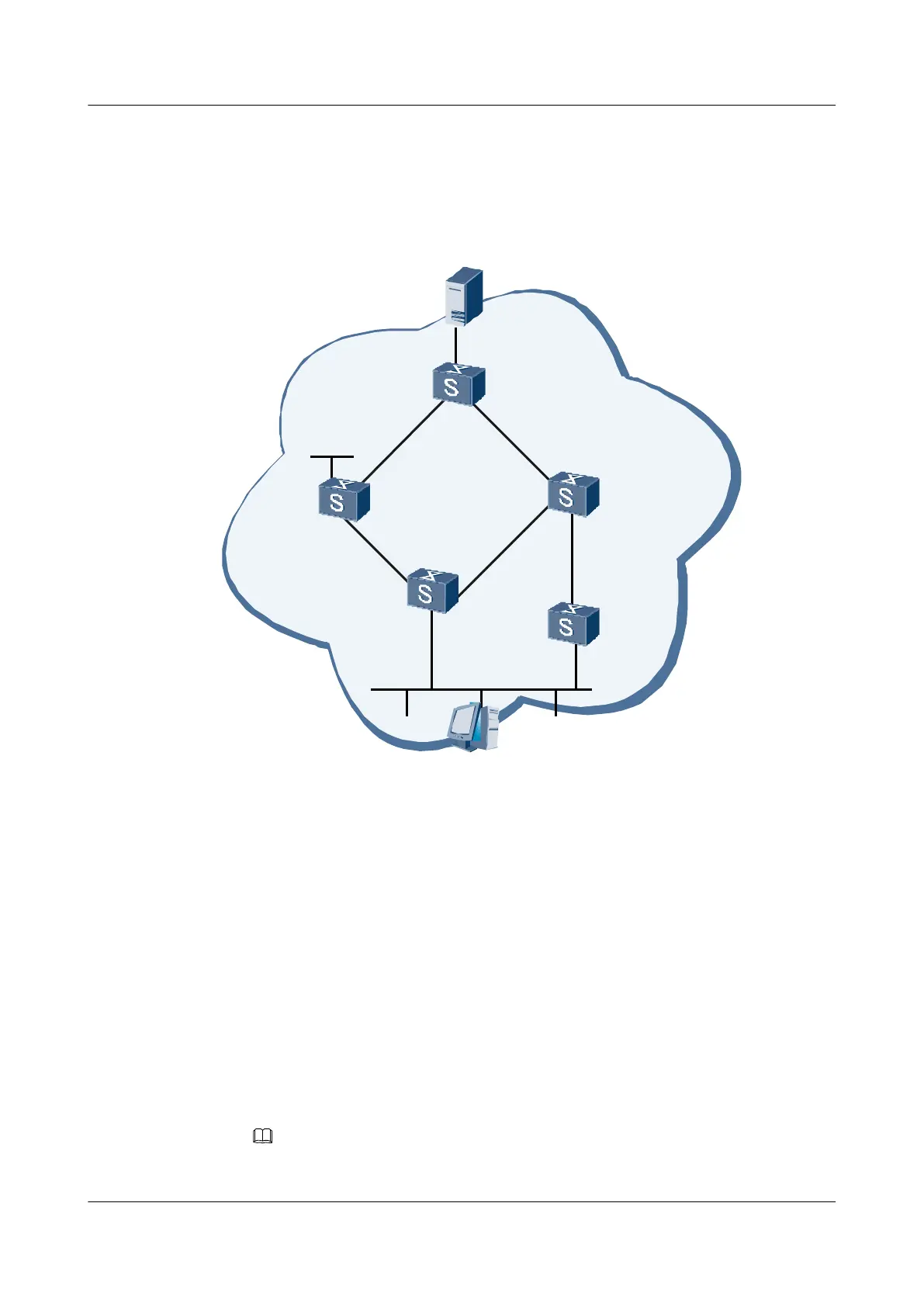

Figure 6-20 Networking diagram of MTrace
GE1/0/0
VLANIF160
11.1.3.2/24
11.1.0.2/24
Source
GE1/0/0
VLANIF140
11.1.0.1/24
GE2/0/0
VLANIF150
11.1.1.1/24
GE1/0/0
VLANIF110
11.1.5.1/24
GE2/0/0
VLANIF150
11.1.1.2/24
GE1/0/0
VLANIF110
11.1.5.2/24
GE3/0/0
VLANIF130
11.1.2.1/24
GE3/0/0
VLANIF130
11.1.2.2/24
GE1/0/0
VLANIF160
11.1.3.1/24
GE3/0/0
VLANIF170
11.1.6.3/24
11.1.6.4/24
Receiver
GE2/0/0
VLANIF120
11.1.4.2/24
Loopback0
1.1.1.1/32
SwitchE
SwitchC
SwitchD
SwitchB
SwitchA
GE3/0/0
VLANIF170
11.1.6.2/24
GE2/0/0
VLANIF120
11.1.4.1/24
Configuration Roadmap
The configuration roadmap is as follows:
1. Configure Switch B as the NQA client and create an MTrace test on it.
2. Perform the test and view the test result.
Data Preparation
To complete the configuration, you need the following data:
l Test instance name: admin mtrace
l IP address of the multicast source: 11.1.0.2/24
NOTE
This example covers only the configurations of the MTrace test.
6 NQA Configuration
Quidway S9300 Terabit Routing Switch
Configuration Guide - Network Management
6-184 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Issue 03 (2010-09-20)
