Huawei Quidway S9300 User Manual

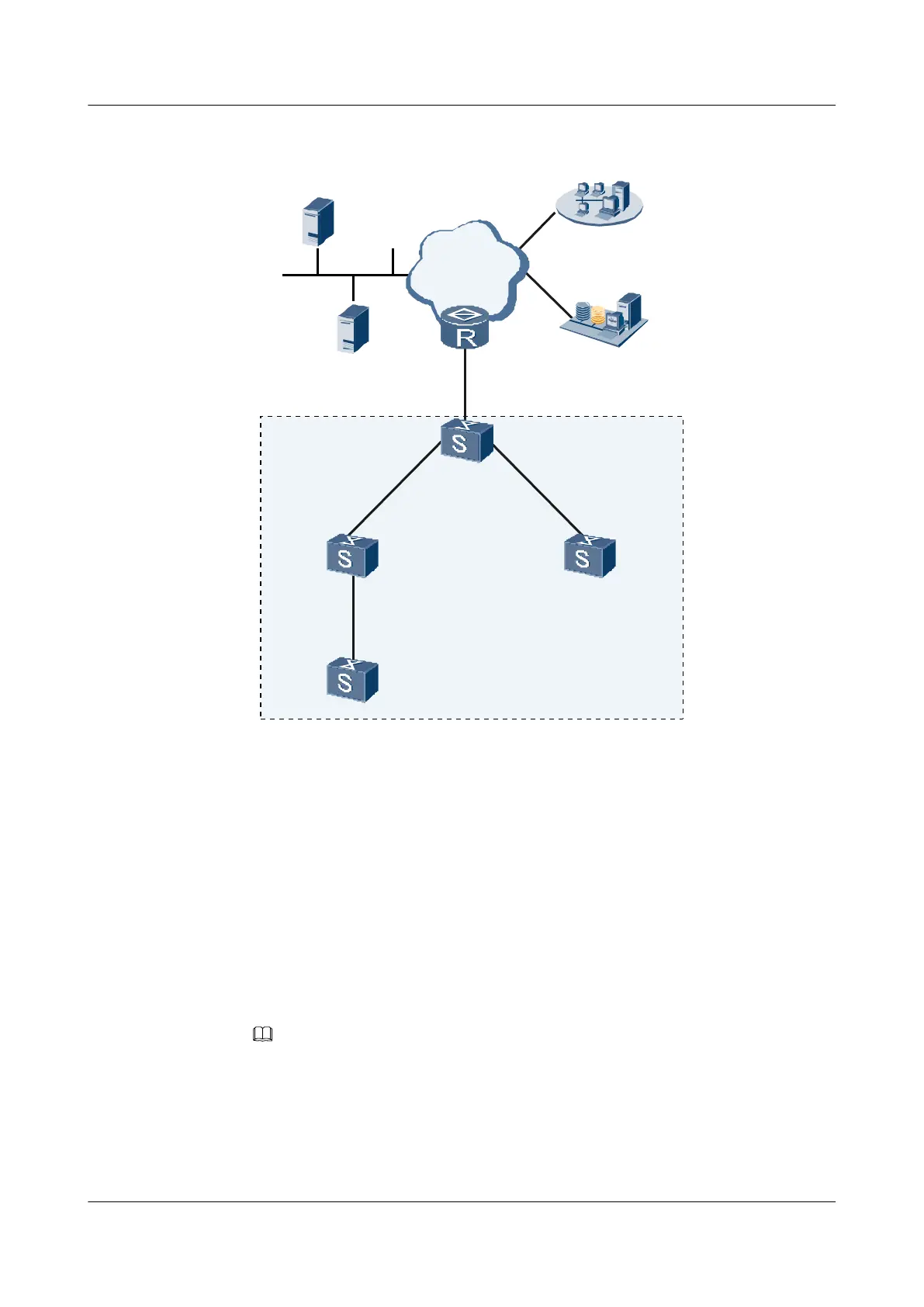

Figure 8-6 Networking diagram of configuring devices in the HGMP cluster to access the
outside SNMP host (in NAT mode)
IP/MPLS
core
......
FTP Server
2.0.0.1/8
SFTP Server
2.0.0.2/8
NM station
3.0.0.1/8
Log station
4.0.0.1/8
Administrator-1
10.0.0.1/8
Member-1
Member-2
Member-3
10.0.0.4/8
GE1/0/1 GE1/0/2
GE1/0/1
GE1/0/2
GE1/0/1
GE1/0/1
Cluster
GE1/0/3
GE1/0/1
1.0.0.2/8
Device MAC Address Device MAC Address
Administrator-1 0001-0001-0001 Member-1 0002-0002-0002
Member-2 0003-0003-0003 Member-3 0004-0004-0004
Configuration Roadmap
The configuration roadmap is as follows:
1. Create a cluster and configure basic HGMP functions for the cluster according to the steps
described in Example for Configuring Basic HGMP Functions for a Cluster.
2. Enable SNMP NAT on the administrator switch (The function is enabled by default.)
NOTE
Related configurations of cluster NAT must be performed on the administrator switch.
3. Assign an IP address to the SNMP host.
Data Preparation
To complete the configuration, you need the following data:
8 HGMP Configuration
Quidway S9300 Terabit Routing Switch
Configuration Guide - Network Management
8-64 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Issue 03 (2010-09-20)
