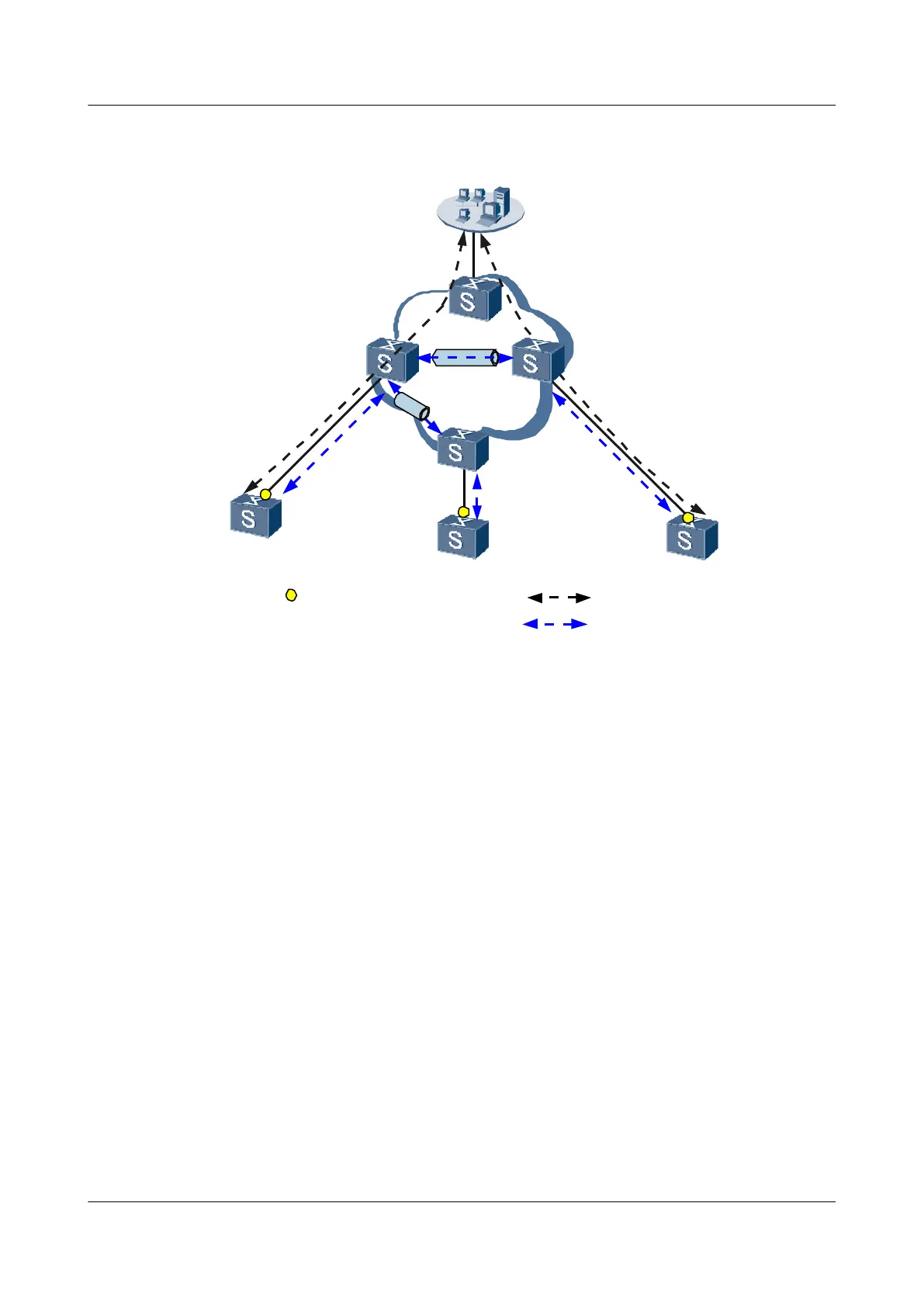

Figure 4-4 Networking diagram for configuring LLDP when an interface has multiple neighbors

SwitchE

NMS

SNMP

LLDP interface

SNMP

LLDPDU

NMS: Network Management System

LLDPDU

SwitchD

SwitchA

SwitchB SwitchC

SwitchF

SNMP packet

LLDPDU packet

LLDPDU

10.10.10.2

10.10.10.3

10.10.10.1

Configuration Roadmap

The configuration roadmap is as follows:

1. Enable LLDP globally on Switch A, Switch B, and Switch C.

2. Configure the management addresses of Switch A, Switch B, and Switch C so that the NMS

can identify the devices.

Data Preparation

To complete the configuration, you need the following data:

l Management addresses of Switch A, Switch B, and Switch C

Procedure

Step 1 Enable LLDP globally on Switch A, Switch B, and Switch C.

# Configure Switch A.

<Quidway> system-view

[Quidway] sysname SwitchA

[SwitchA] lldp enable

# Configure Switch B.

4 LLDP Configuration

Quidway S9300 Terabit Routing Switch

Configuration Guide - Network Management

4-28 Huawei Proprietary and Confidential

Issue 03 (2010-09-20)
