Huawei Quidway S9300

ip netstream inbound
ip netstream outbound
#
interface GigabitEthernet2/0/0
port hybrid pvid vlan 200
port hybrid untagged vlan 200
#
7.9.2 Example for Configuring IPv4 Aggregation Traffic Statistics
Networking Requirements
As shown in Figure 7-3, after NetStream is configured on Switch B, you can collect statistics
about the traffic from the user network to different internet service providers (ISPs). This
provides reference for network accounting.

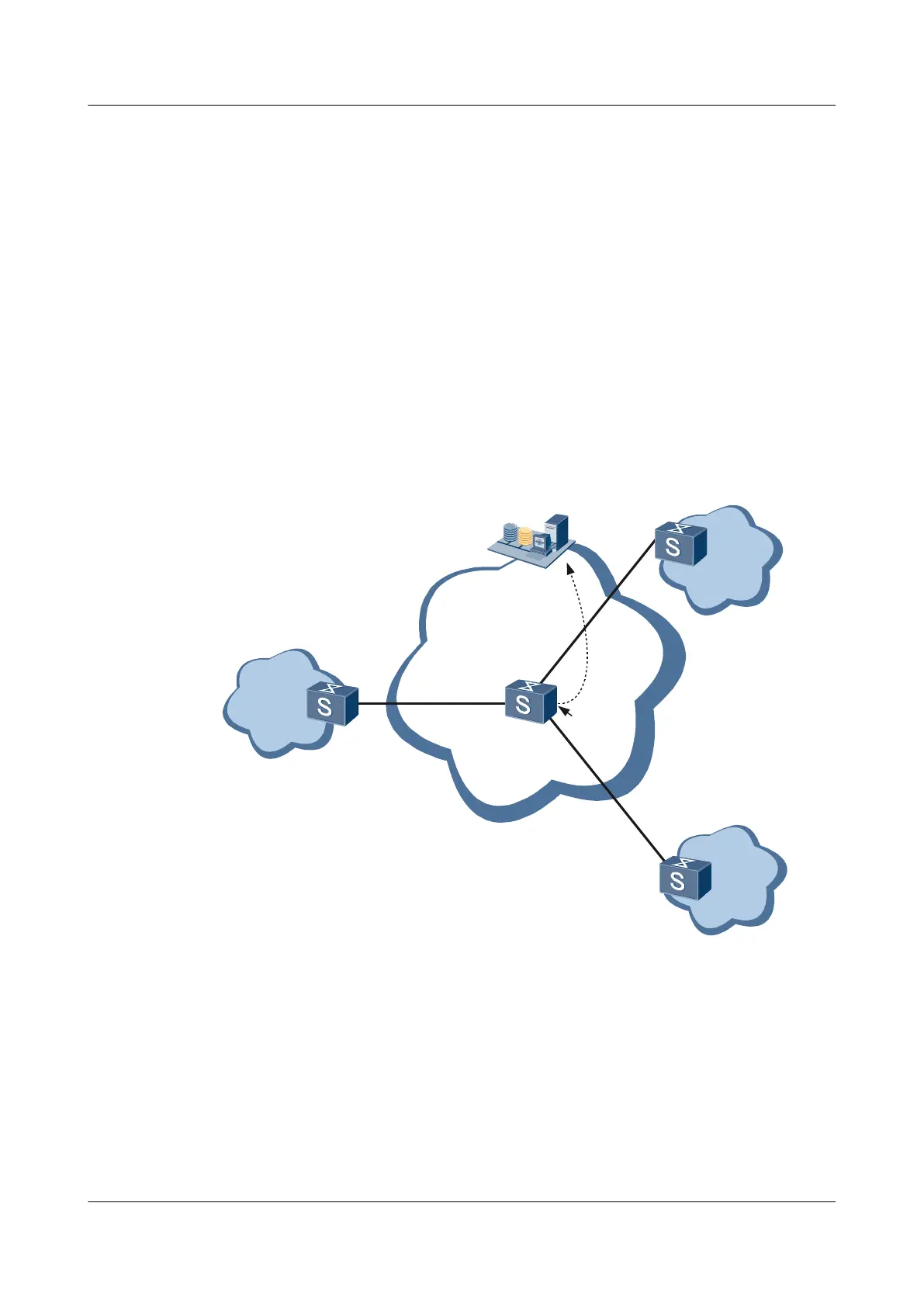

Figure 7-3 Networking diagram for configuring NetStream aggregation
User
Network
NSC&NDA
10.4.1.2/24
ISP1
ISP2
GE1/0/0
GE3/0/0
GE2/0/0
GE1/0/0
GE1/0/0
GE2/0/0
GE1/0/1
SwitchA
SwitchB
SwitchC
SwitchD
Switch
Physical interface VLANIF interface IP address
Switch A GigabitEthernet1/0/0 VLANIF30 10.1.1.1/24
Switch B GigabitEthernet1/0/0 VLANIF10 10.2.1.1/24
GigabitEthernet2/0/0 VLANIF20 10.3.1.1/24
GigabitEthernet3/0/0 VLANIF30 10.1.1.2/24
GigabitEthernet1/0/1 VLANIF40 10.4.1.1/24
Switch C GigabitEthernet1/0/0 VLANIF10 10.2.1.2/24
Switch D GigabitEthernet2/0/0 VLANIF20 10.3.1.2/24
