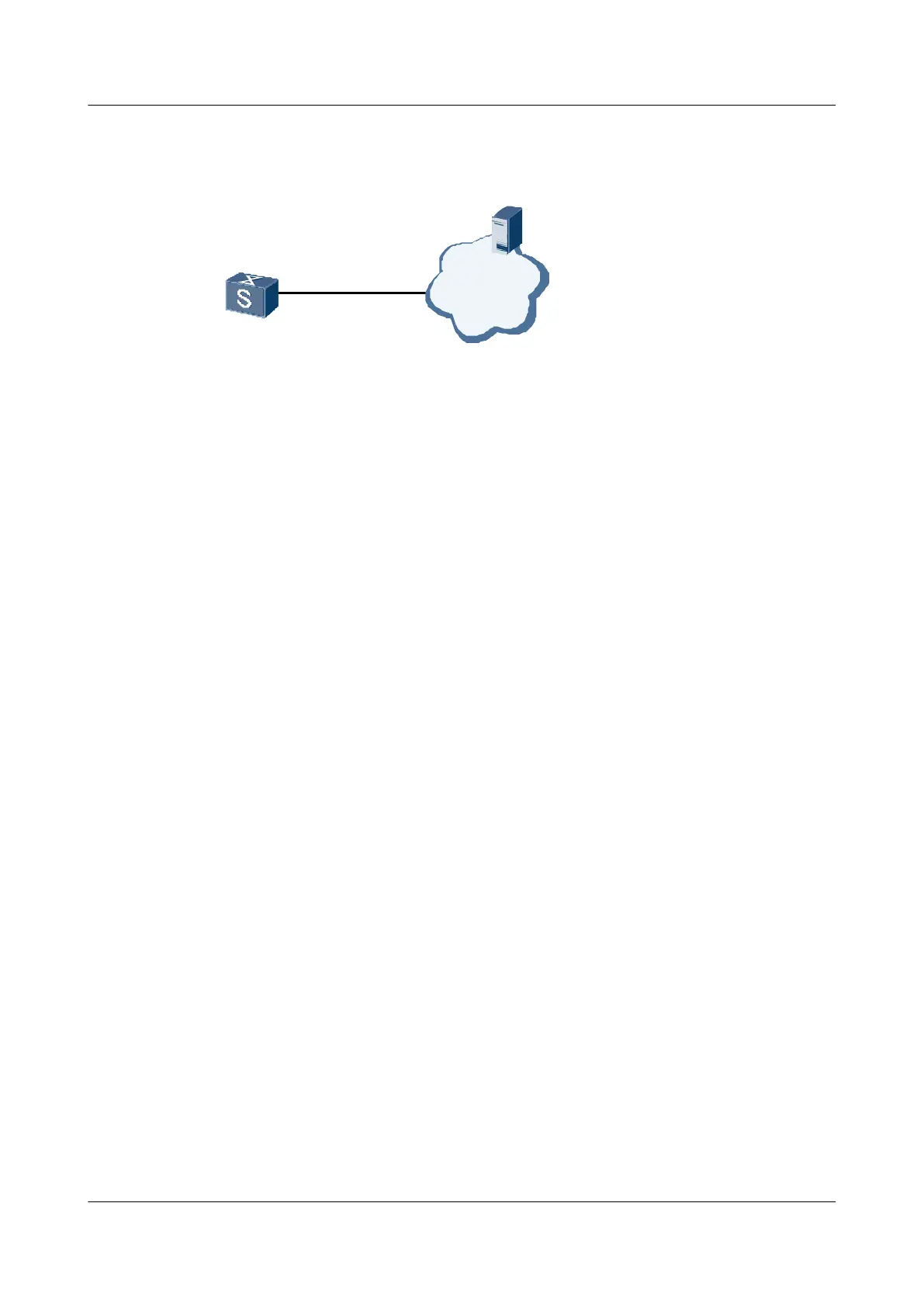

Figure 6-6 Networking diagram for configuring the HTTP test
Switch
GE1/0/0
VLANIF10
10.1.1.1/24
10.2.1.1/24
HTTP Server
IP
Network
10.1.1.2/24
Configuration Roadmap
The configuration roadmap is as follows:
1. Configure the Switch as the NQA client.
2. Create and perform the HTTP test on the Switch to check whether the a connection between
the Switch and the HTTP server can be set up and to check the time for transferring a file
between them.
Data Preparation
To complete the configuration, you need the following data:
l Host address of the HTTP server
l HTTP operation type
Procedure
Step 1 Configure reachable routes between Switch and HTTP Server. The configuration details are not
mentioned here.
Step 2 Enable the NQA client and create an NQA HTTP test.
<Quidway> system-view
[Quidway] nqa test-instance admin http
[Quidway-nqa-admin-http] test-type http
[Quidway-nqa-admin-http] destination-address ipv4 10.2.1.1
[Quidway-nqa-admin-http] http-operation get
[Quidway-nqa-admin-http] http-url www.huawei.com
Step 3 Perform the test.
[Quidway-nqa-admin-http] start now
Step 4 Verify the test result.
[Quidway-nqa-admin-http] display nqa results test-instance admin http
NQA entry(admin, http) :testflag is inactive ,testtype is http
1 . Test 1 result The test is finished
SendProbe:3 ResponseProb:3
Completions: success RTD OverThresholdsnumber: 0
MessageBodyOctetsSum: 0 TargetAddress: 10.2.1.1
DNSQueryError number: 0 HTTPError number: 0
TcpConnError number : 3 System busy operation number:0
DNSRTT Sum/Min/Max:0/0/0 TCPConnectRTT Sum/Min/Max: 0/0/0
TransactionRTT Sum/Min/Max: 11/3/4
