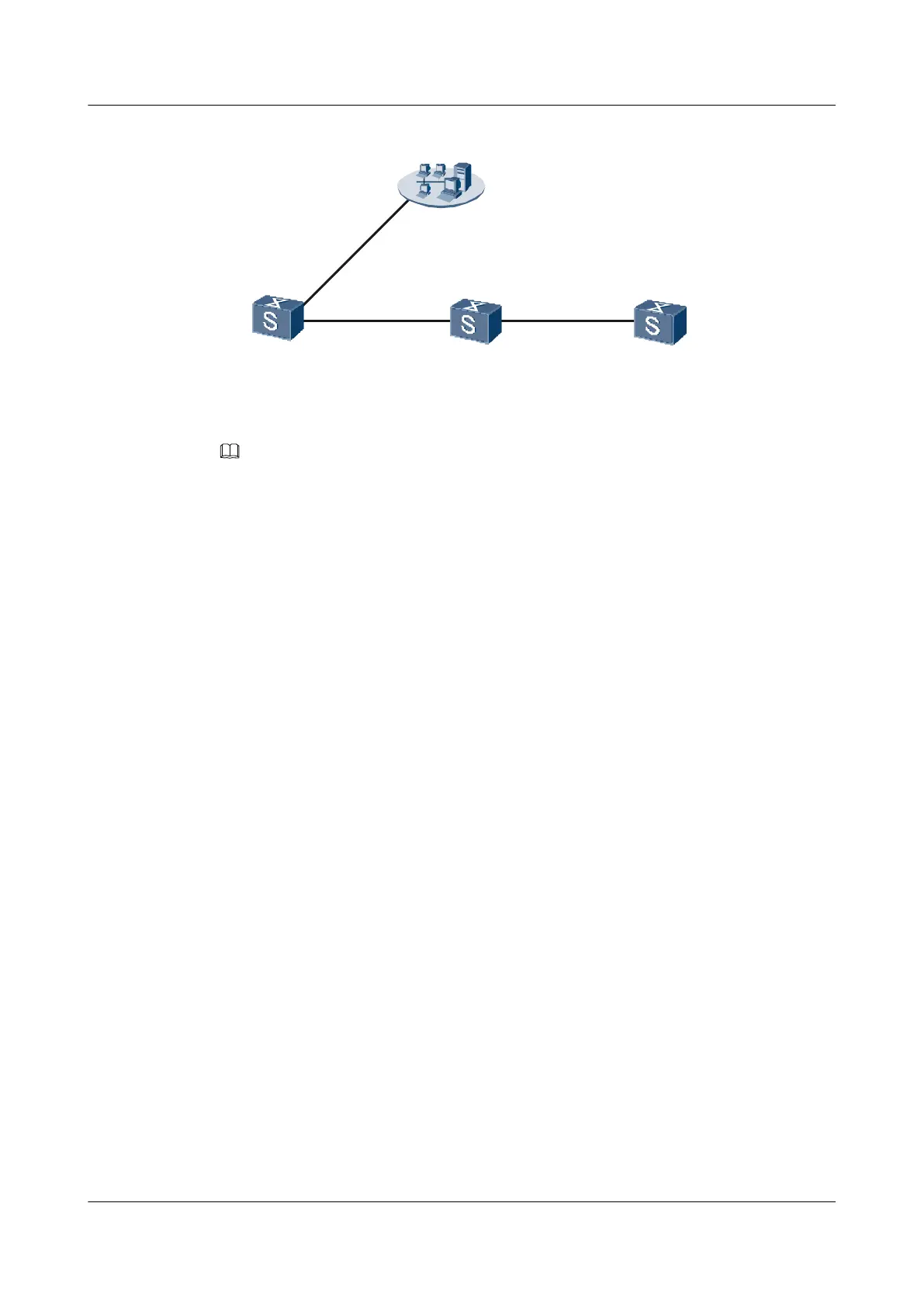

Figure 6-29 Network diagram for configuring the NQA threshold
NQA Server
NM Station
GE1/0/0
VLANIF120
10.1.1.1/24
GE1/0/0
VLANIF120
10.1.1.2/24
GE1/0/0
VLANIF130
30.1.1.2/24
GE2/0/0
VLANIF130
30.1.1.1/24
GE2/0/0
20.1.1.2/24
SwitchA
SwitchB
SwitchC
VLANIF110
20.1.1.1/24
NOTE
For the information about clock synchronization, see "NTP" in the Quidway S9300 Terabit Routing Switch
Feature Description - Network Management.
Configuration Roadmap
The configuration roadmap is as follows:
1. Configure a Jitter test.
2. Configure the NQA thresholds.
3. Enable the function of sending trap messages.
4. Configure the function of sending trap messages to the NMS.
Data Preparation
To complete the configuration, you need the following data:
l IP address and port number of the server-side host.
l Type of the monitored service and monitoring port number
l RTD threshold and OWD threshold
l IP address of the NMS
Procedure
Step 1 Configure reachable routes between Switch A and Switch B, between Switch A and Switch C,
and between Switch B and Switch C. The configuration details are not mentioned here.
Step 2 Configure a Jitter test.
# Configure the IP address and UDP port number monitored by the NQA server on Switch C.
<SwitchC> system-view
[SwitchC] nqa-server udpecho 30.1.1.2 9000
# # Enable the NQA client on Switch A and create an NQA Jitter test on it.
<SwitchA> system-view
[SwitchA] nqa test-instance admin jitter
[SwitchA-nqa-admin-jitter] test-type jitter
