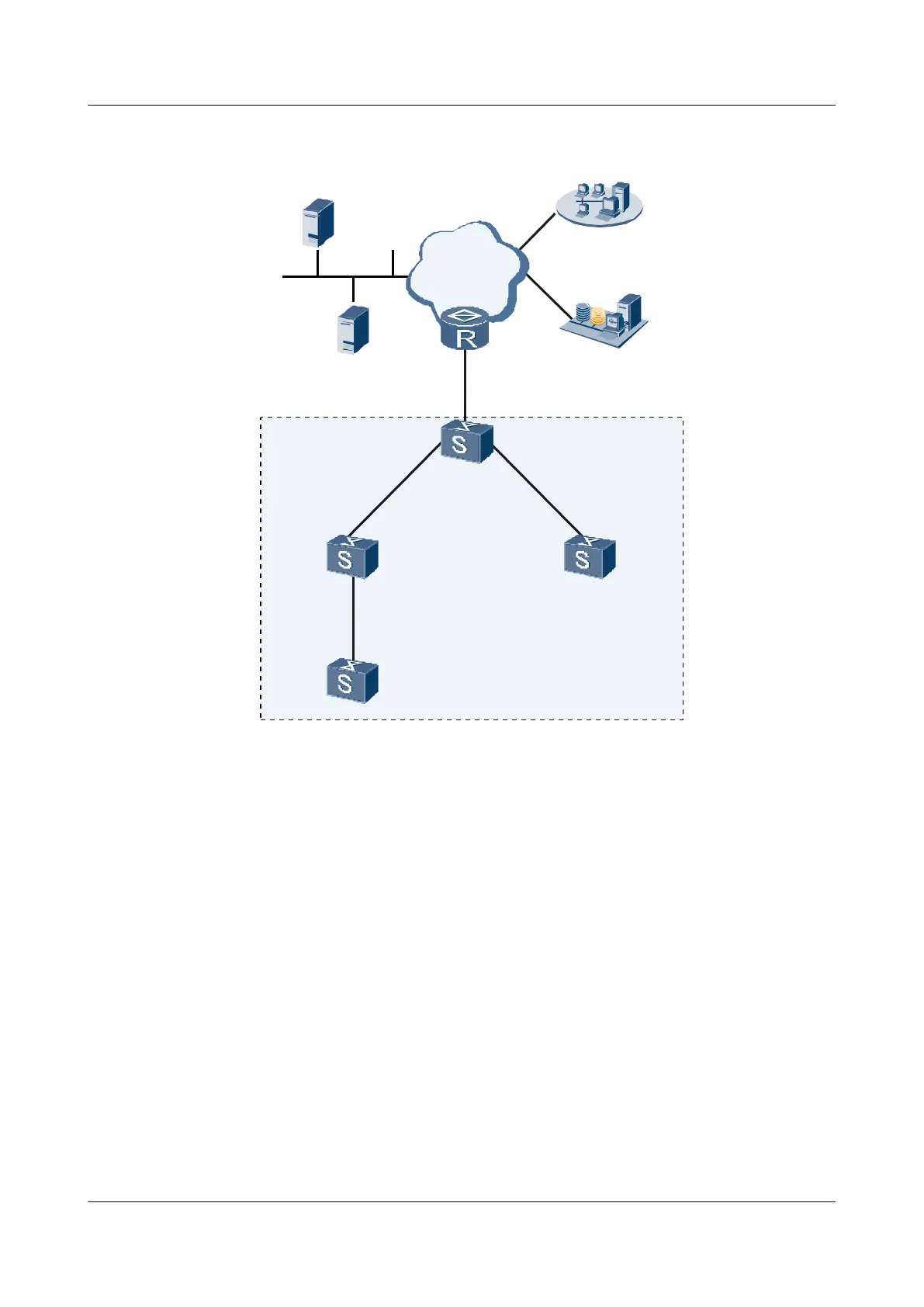

Figure 8-4 Networking diagram of configuring the interconnection of FTP servers and devices
in and out of the HGMP cluster (in NAT Mode)
IP/MPLS
core
......
FTP Server
2.0.0.1/8
SFTP Server
2.0.0.2/8
NM station
3.0.0.1/8
Log station
4.0.0.1/8
Administrator-1
10.0.0.1/8
Member-1
Member-2
Member-3
10.0.0.4/8
GE1/0/1 GE1/0/2
GE1/0/1
GE1/0/2
GE1/0/1
GE1/0/1
Cluster
GE1/0/3
GE1/0/1
1.0.0.2/8
Device MAC Address Device MAC Address
Administrator-1 0001-0001-0001 Member-1 0002-0002-0002
Member-2 0003-0003-0003 Member-3 0004-0004-0004
Configuration Roadmap
The configuration roadmap is as follows:
1. Create a cluster and configure basic HGMP functions for the cluster according to the steps
described in the section "Example for Configuring Basic HGMP Functions for a
Cluster."
2. For the situation that Member-3 accesses the FTP server (2.0.0.1/8) out of the cluster:
l Run the cluster-ftp command on the member switch to set up a connection with the
public FTP server of the cluster.
3. For the situation that a device out of the cluster accesses the FTP server (Member-2):
l Calculate the port number reserved on the administrator switch for the FTP protocol of
a certain member switch in the cluster.
