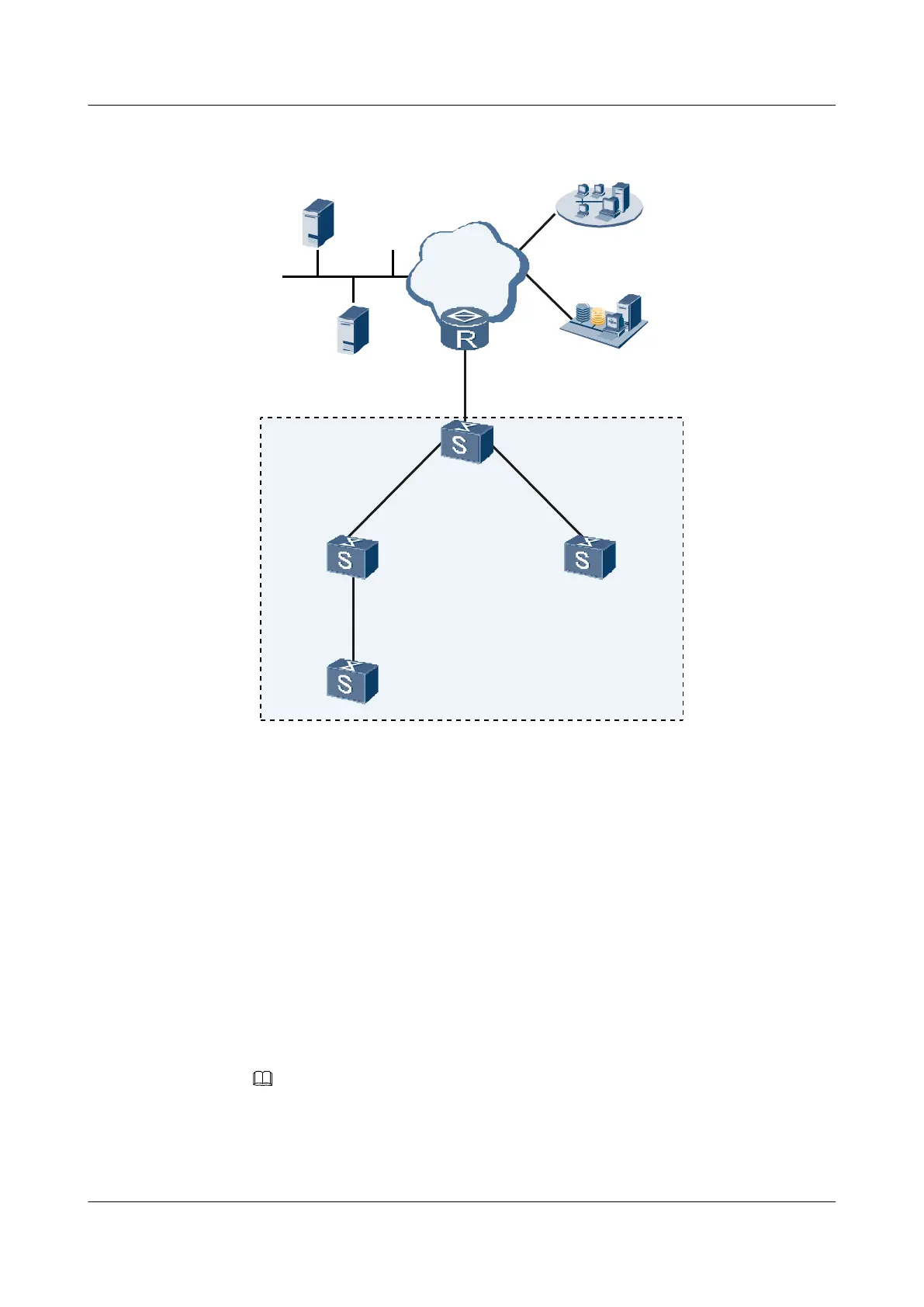

Figure 8-11 Networking diagram of configuring the configuration synchronization function for
an HGMP cluster
IP/MPLS
core
......
FTP Server
2.0.0.1/8
SFTP Server
2.0.0.2/8
NM station
3.0.0.1/8
Log station
4.0.0.1/8
Administrator-1
10.0.0.1/8
Member-1
Member-2
Member-3
10.0.0.4/8
GE1/0/1 GE1/0/2
GE1/0/1
GE1/0/2
GE1/0/1
GE1/0/1
Cluster
GE1/0/3
GE1/0/1
1.0.0.2/8
Device MAC Address Device MAC Address
Administrator-1 0001-0001-0001 Member-1 0002-0002-0002
Member-2 0003-0003-0003 Member-3 0004-0004-0004
Configuration Roadmap
The configuration roadmap is as follows:
1. Create a cluster according to the steps described in 8.5.1 Example for Configuring Basic
HGMP Functions for a Cluster.
2. 8.5.2 Example for Configuring the Interconnection of FTP Servers and Devices in and
out of the HGMP Cluster (in NAT Mode)
NOTE
l Configure the interconnection of FTP servers and devices in and out of the HGMP cluster in
NAT or non-NAT mode. The following takes the configuration in NAT mode as an example.
l If it is not required to synchronize the configuration files of the HGMP cluster by accessing the
FTP server out of the cluster, you can skip this step.
