BACKUP BATTERY
All models of S300 expansion enclosures use the same battery (S300-BAT) and bracket kit
(S300-BRK2).
The location and orientation of the
battery inside the enclosure depends on enclosure type.
The battery and bracket kit are sold
separately and the battery can be replaced without
ordering an additional bracket kit.
Figure 3-37: Battery Backup for Expansion Enclosures
NOTE
The backup battery is rated for a minimum of three hours on a fully loaded
system in an expansion enclosure.
S300-BAT Battery
The optional S300-BAT backup battery provides an Uninterruptible Power Supply
(UPS) feature.

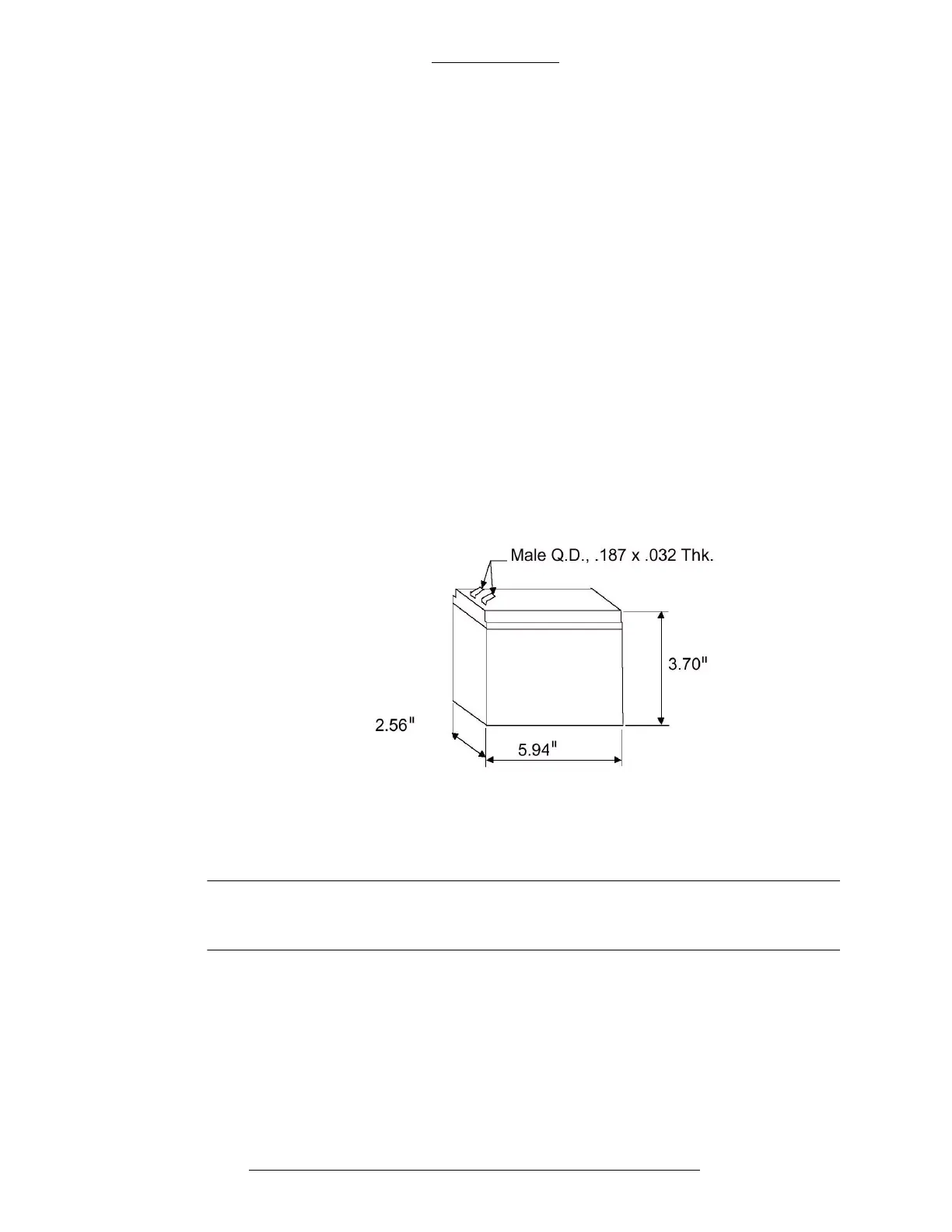

The battery is a Power Sonic, Model PS-1270, 12 VDC, 7 Ah, sealed lead acid
battery. It
should be replaced every three years to ensure proper operation. Replace
the battery whether or not it has been placed into use by an AC power failure.
