CK721-A Installation and Operation CK721-A User Interface
24-10349-8 Rev. B 4-63
This document contains confidential and proprietary information of Johnson Controls, Inc.
© 2012 Johnson Controls, Inc.
NOTE
The Elevator ID and Floormasks/Doormasks cannot be edited from this
screen. These values are set using the P2000 system configuration
screens.
Control Door

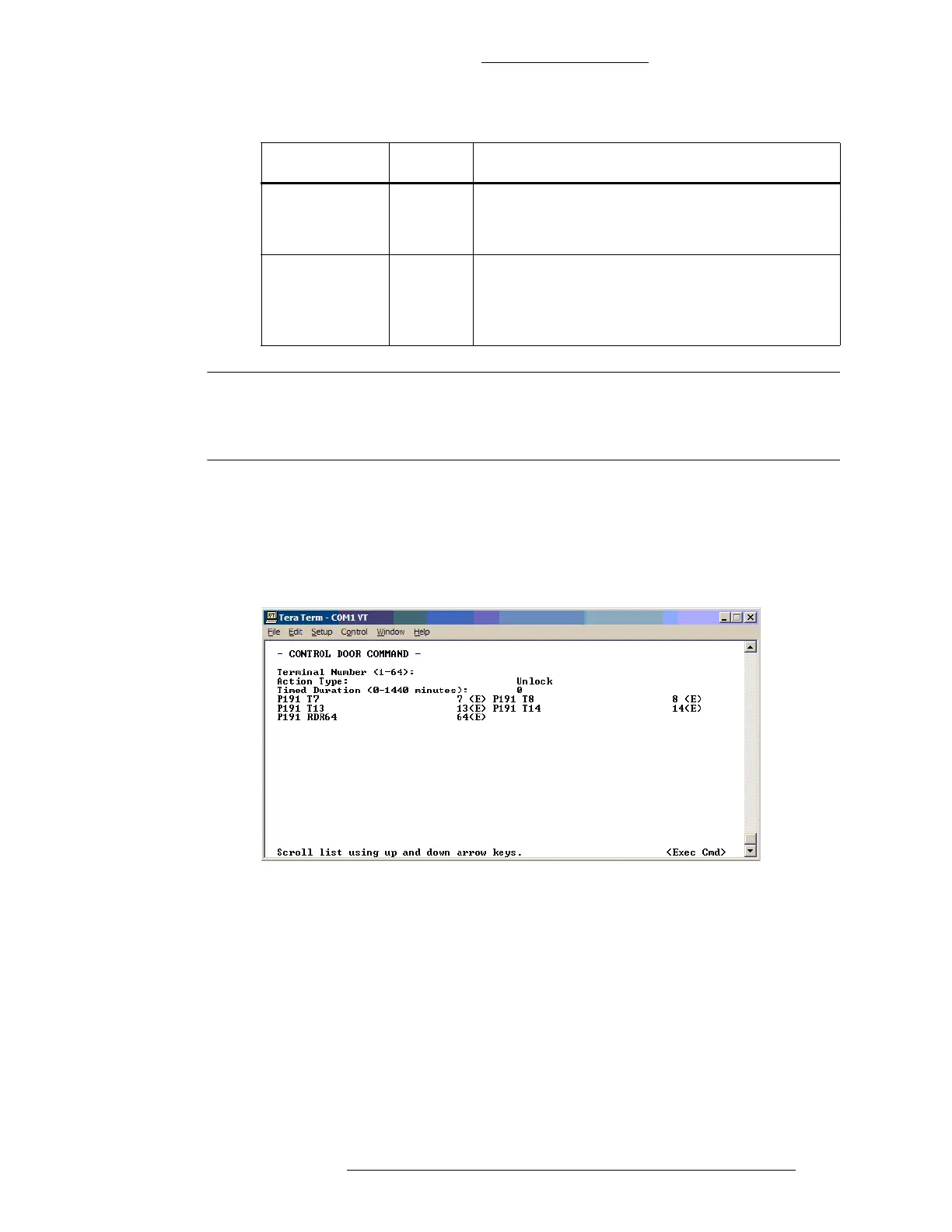

Door Control allows you to manually lock or unlock a door immediately or for a
specified period of time. Select Control Door from the CK721-A Main menu.
ID User Def. A read-only field that identifies the elevator or
cabinet associated with the terminal and floormask
or doormask on this line.
Floormasks/
Doormasks
User Def. A read-only field that identifies the
f
loors/doors
enabled for the elevator on this line. The individual
floors/doors are bits in an array from 1 to 128.
These bits are represented as hexadecimal digits.
Table 4-18: Elevator Access Group Screen, 1 Page Only
Field Type Description
