CK721-A Static Route Examples
Net Destination Example:
Settings in the Route Configuration screen:
Host/Net Destination Gateway
-net 0.0.0.0 201.0.0.1 (recommended default route)
-net 200.0.0.0 201.0.0.1
Host Destination Example:
Settings in the Route Configuration screen:
Host/Net Destination Gateway
-host 200.0.0.1 201.0.0.5

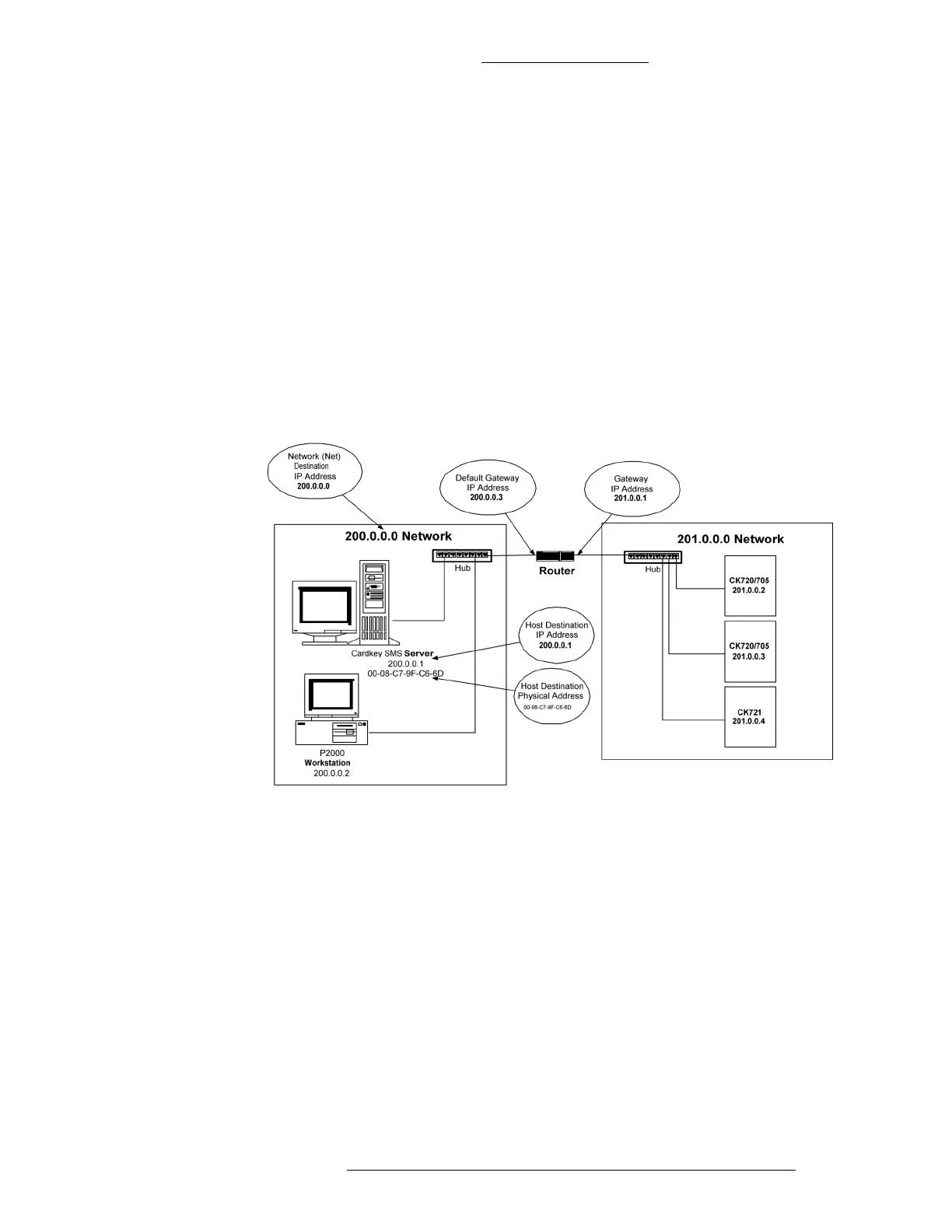

Figure 4-2: Static Route Examples
Log Out
After configuring or viewing system parameters, always log out, and then remove
the serial cable. To log out from the CK721-A user interface, select Log Out, and
press <Enter>.
Rebooting the Panel
Reboot the CK720 from the Main menu option Reboot System, or power cycle the
panel.
