Table 4-9: Terminal Screen, Page 4
Field Type Description
Facility Code User Def. Enter the facility code for the ca
rd type listed to the
right. The facility codes must be entered
consecutively. When a facility code is 0, the codes
that follow are ignored.
Card Type Toggle Select between available card types that use facility
co
de
s. Each reader terminal connected to a CK721-A
can support up to 12 different facility codes.
CK721-A Installation and Operation CK721-A User Interface
24-10349-8 Rev. B 4-31
This document contains confidential and proprietary information of Johnson Controls, Inc.
© 2012 Johnson Controls, Inc.
Terminal Screen - Page 5

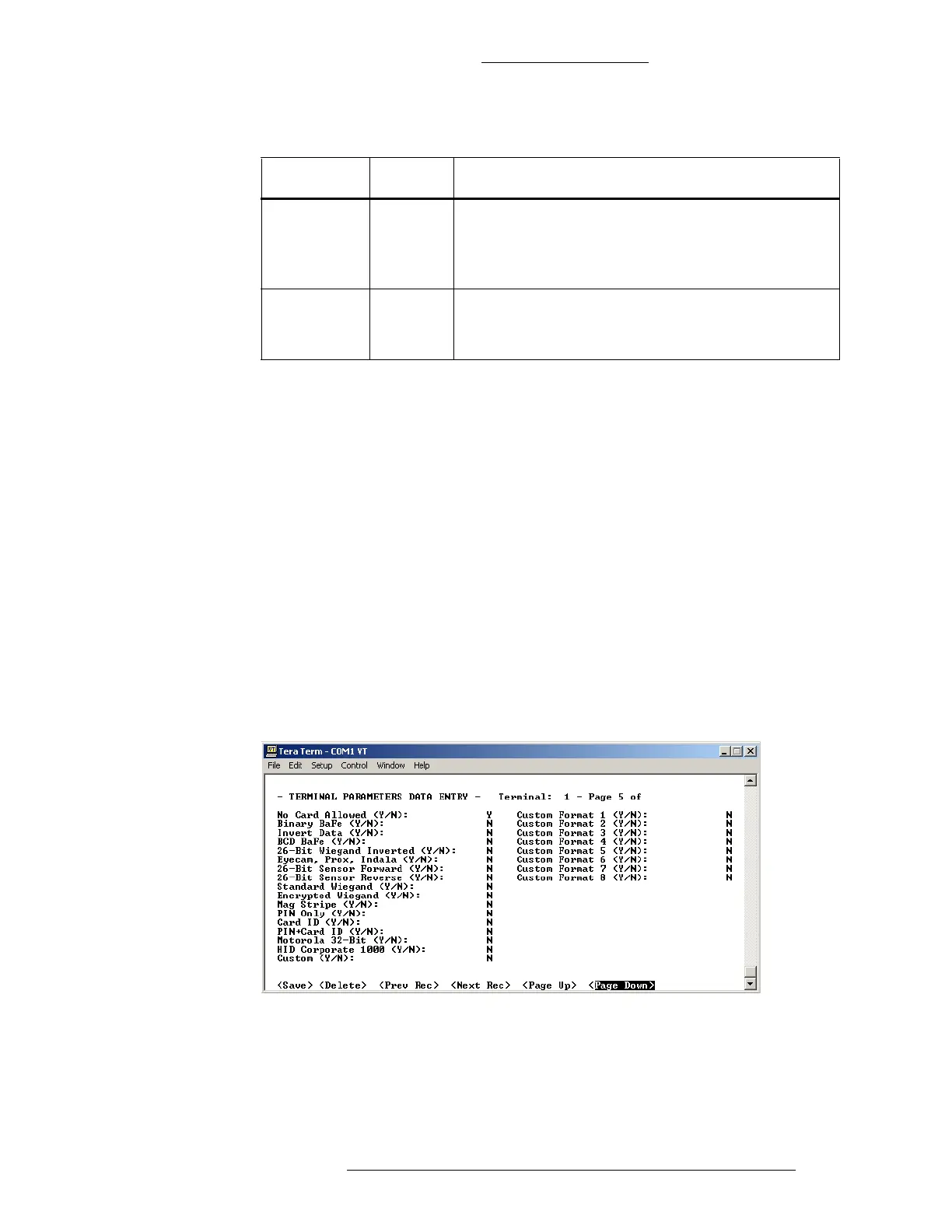

Page 5 of the Terminal screen is shown below followed by Table 4-10, which
contains a description of each item. Page 5 allows y
ou to configure additional card
parameters from the settings contained on Page 4.
Only one type of card may be selected (Y),
wi
th two exceptions:
In addition to a non-PIN based card type you may select the “PIN + Card ID” flag.
This gives people who have
forgotten their badge the opportunity to get access by
keying in their badge number and their PIN. See “Configuring PIN Codes” on page
4-36.
If you use a two-wire reader with a keypad,
y
ou must wire Data 0 and Data 1 wires
so that the keypad produces the correct input to the panel. If this configuration
causes the badge data to be reported inversely, you can check the “Invert Data” flag
to inverse just the badge data, so that the panel can correctly interpret both the
keypad data and the badge data.
