Panel Screen Description
The Panel screen is used when the CK721-A panel is configured for the P2000
server.

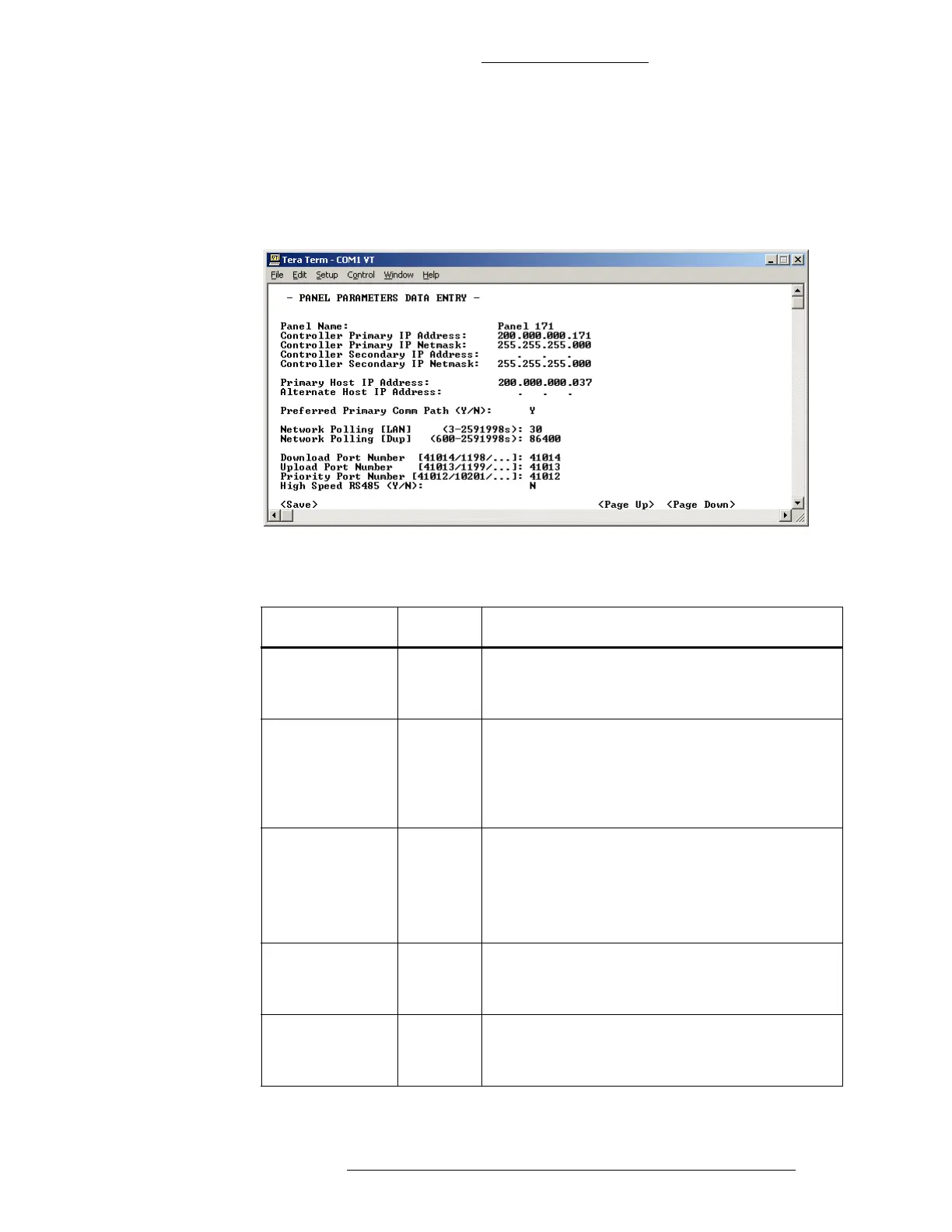

Panel Screen - Page 1
Table 4-3: Panel Screen, Page 1
Field Type Description
Panel Name User Def. The panel name is defined at the server, and then
downloa
ded from the server to the panel. The
panel name cannot be changed from the panel.
Controller
Pr
i
mary
IP Address
User Def. The IP address used by the onboard network
interface. An IP address is a 32-bit number that is
notated by using four numbers from 0 through
255, separated by periods. To clean the IP entry,
enter the IP value of 000.000.000.000.
Controller
Pr
i
mary
IP Netmask
User Def. A 32-bit number that is notated by using four
numbers from 0 through 255, separated by
periods. Typically, default subnet mask numbers
use either 0 or 255 as values.
Default value: 255.255.255.0 [Class C networks]
Controller
Second
ary
IP Address
User Def. This IP address is reserved for future use in
support of a secondary IP interface.
Controller
Se
cond
ary
IP Netmask
User Def. This netmask is reserved for future use in support
of a secondary IP interface.
