CK721-A Installation and Operation CK721-A User Interface
24-10349-8 Rev. B 4-7
This document contains confidential and proprietary information of Johnson Controls, Inc.
© 2012 Johnson Controls, Inc.
Clearing the Flash Memory
To clear database information from the Flash Memory:

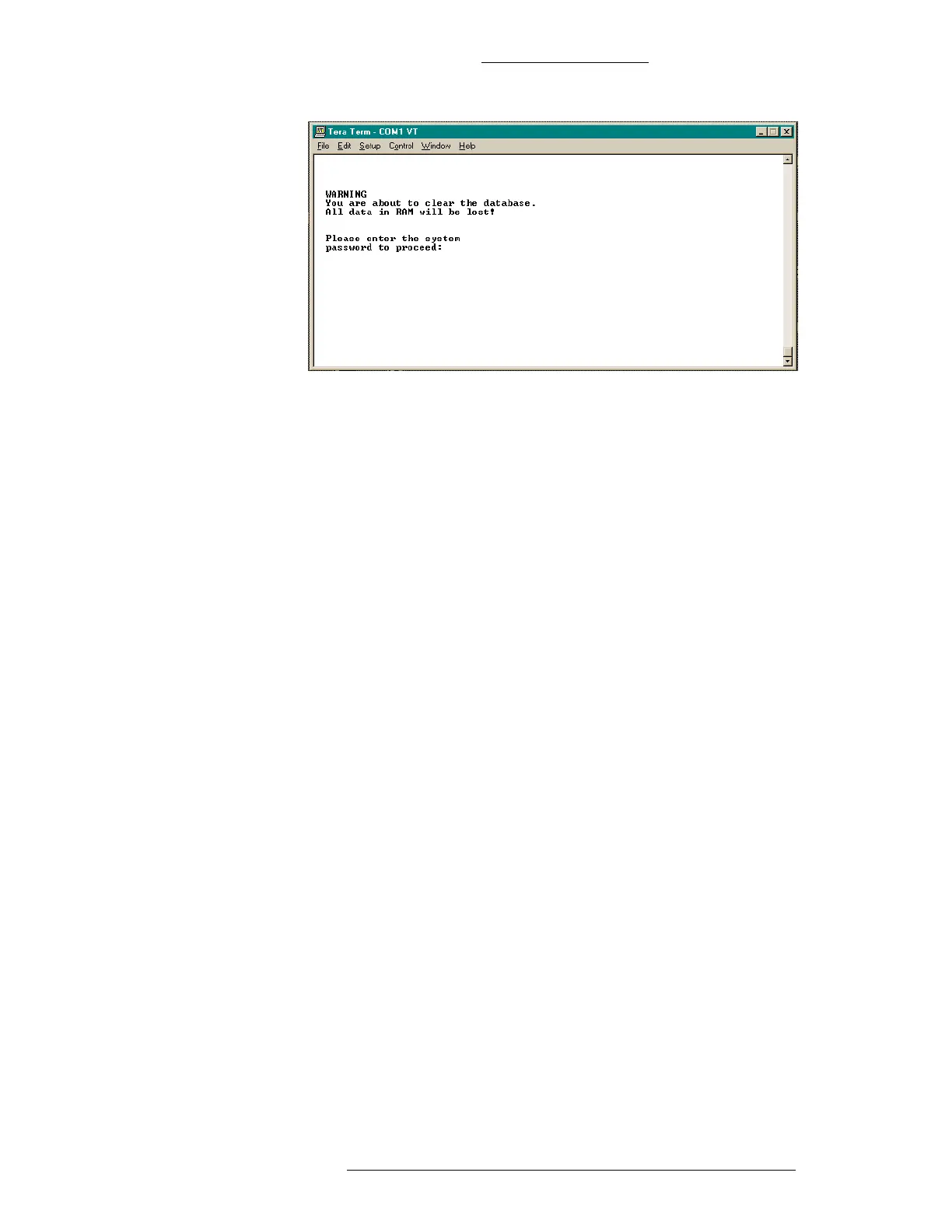

1. Clear the database first, as instructed
in the section above.
2. Select Panel and set the
basic panel configuration and route parameters (if
applicable) as described in “Basic Panel Configuration” on page 4-10.
3. Select Save and press <Enter>.
4.
Press <Esc>.
5.
Select Wri
te Flash.
6. Press <Enter>.
7. When the login prompt appears, the database information has been cleared
from
the Flash Memory. You can now download information from the P2000.
Router Configuration
The default CK721-A Panel Routing Information Protocol (RIP) is dynamic, that is,
it regularly listens for RIP from the network. If RIP is disabled, manual route
information can be added using this screen. A maximum of four addresses can be
entered at one time. Both Destination and Gateway addresses must be entered.
In other words, to use a router, you must define a Gateway I
P addr
ess (which is the
closest route to the panel) and a Destination IP address (which is the Server IP or
Network IP).
To enter the recommended Static Route:
1.
From the Main menu select Route Info.
2. From the Route Configuration screen, select net. (Use th
e spacebar
to toggle
between Host/Net and use the enter key to move to the next column.)
3. Specify the Destination address of 0.0.0.0.
4.
For the Gateway addre
ss enter the router IP address.
