CK721-A User Interface CK721-A Installation and Operation
4-24 24-10349-8 Rev. B
This document contains confidential and proprietary information of Johnson Controls, Inc.
© 2012 Johnson Controls, Inc.

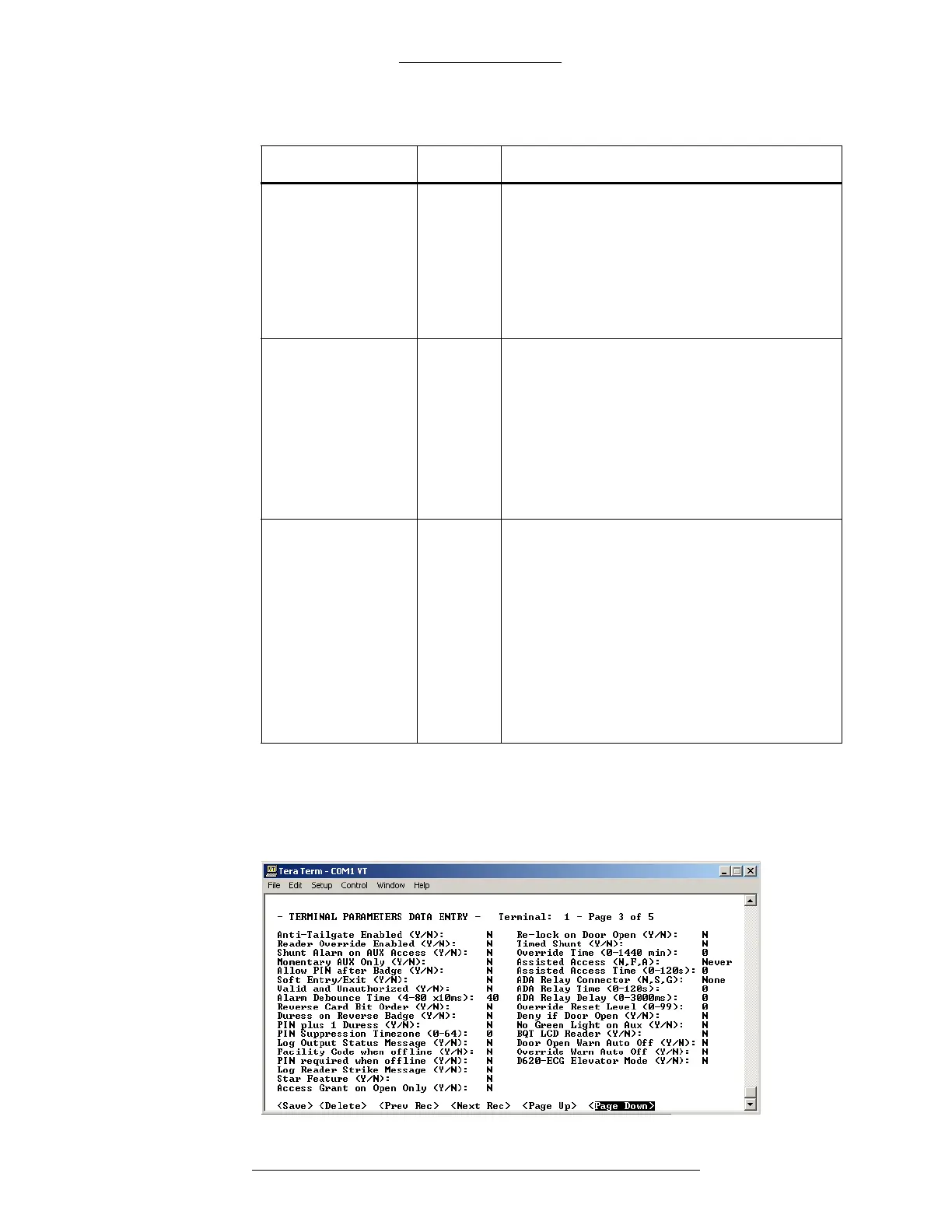

Terminal Screen - Page 3
Page 3 of the Terminal screen is shown, followed by Table 4-8, which contains a
description of each item.
I/O Hdwr Type User Def. Selects the I/O hardware module type for the
addressed S300 module.
The available I/O hardware module types are:
RDR2S-A,
RDR8S, and LEGACY (RDR2S,
IO8, SIO8, I16, and SI8).
Note: Any changes to th
is field require a
controller Write-To-Flash operation.
I/O Module Number User Def. Selects the I/O module hardware number
assigned to the S30
0 module.
The I/O Module Number is not used for legacy
dev
ices.
For the RDR8S and RDR2S-
A modules the
hardware number range is 0 to 31.
Note: Any changes to th
is field require a
controller Write-To-Flash operation.
I/O Terminal Index User Def. Selects the I/O terminal index number for the
S300
module.
The I/O Terminal Index is not used for legacy
dev
ices.
For the RDR8S module the value range is
1 to 8.
For the RDR2S-A module the
value range is
1 to 2.
Note: Any changes to th
is field require a
controller Write-To-Flash operation.
Table 4-7: Terminal Screen, Page 2
Field Type Description
