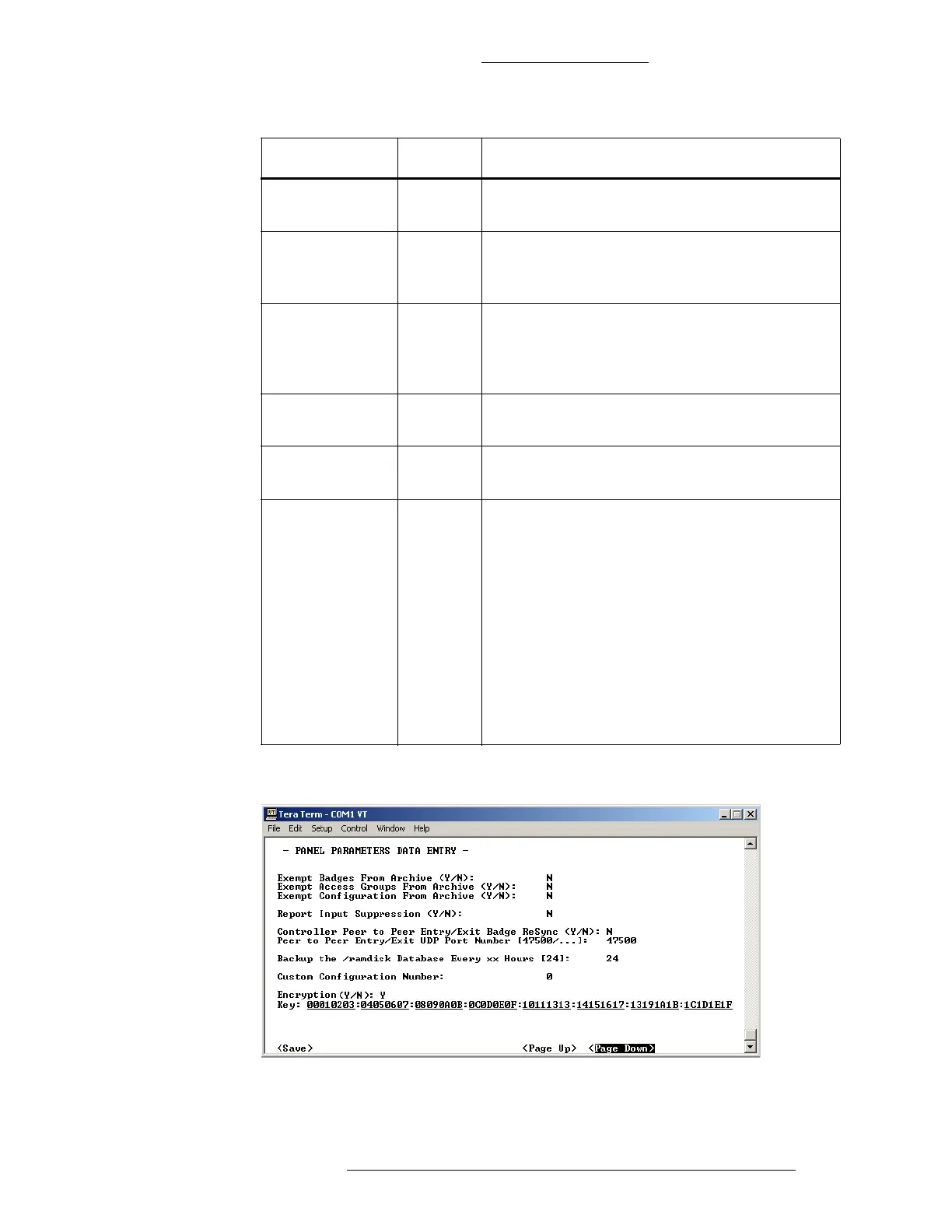

Panel Screen - Page 3
Alarm Output
Delay
User Def. Values are 0 to 60 seconds. This is the number of
seconds the alarm relay waits before activating.
Time Zone 
Offset Is
Toggle A + indicates the offset value (described above)
is a
head of the controller Time Zone. A - means
the offset time is behind the current Time Zone.
Time Zone 
Checking
Toggle When enabled (Y), the controller will
chec
k for
valid reader and card time zones, card access
requests, PIN code suppression, and upload
suppression against active Time Zones.
System Override Toggle If enabled (Y),
a
ll portals connected to this
controller are set in the unlocked position.
Scramble Mode User Def. Values are from 0 - 7. Select one of eight
algo
rithms if using algorithmic PIN codes.
Group Panel 
Output
Toggle When you change the Group Panel Outputs field
on the Panel screen to (Y), the sy
stem will create
an 599 output point. The system automatically
associates Group 599 with the CK721-A relay.
This enables you to control onboard relay by
using the output group through I/O linking or card
events.
Note: Cha
nges to the Panel Output Relay setup
(
includes Output Latching and Alarm Relay
Linking settings) require a write of the database
to flash before the updated Panel Output Relay
settings take effect.
Table 4-4: Panel Screen, Page 2
