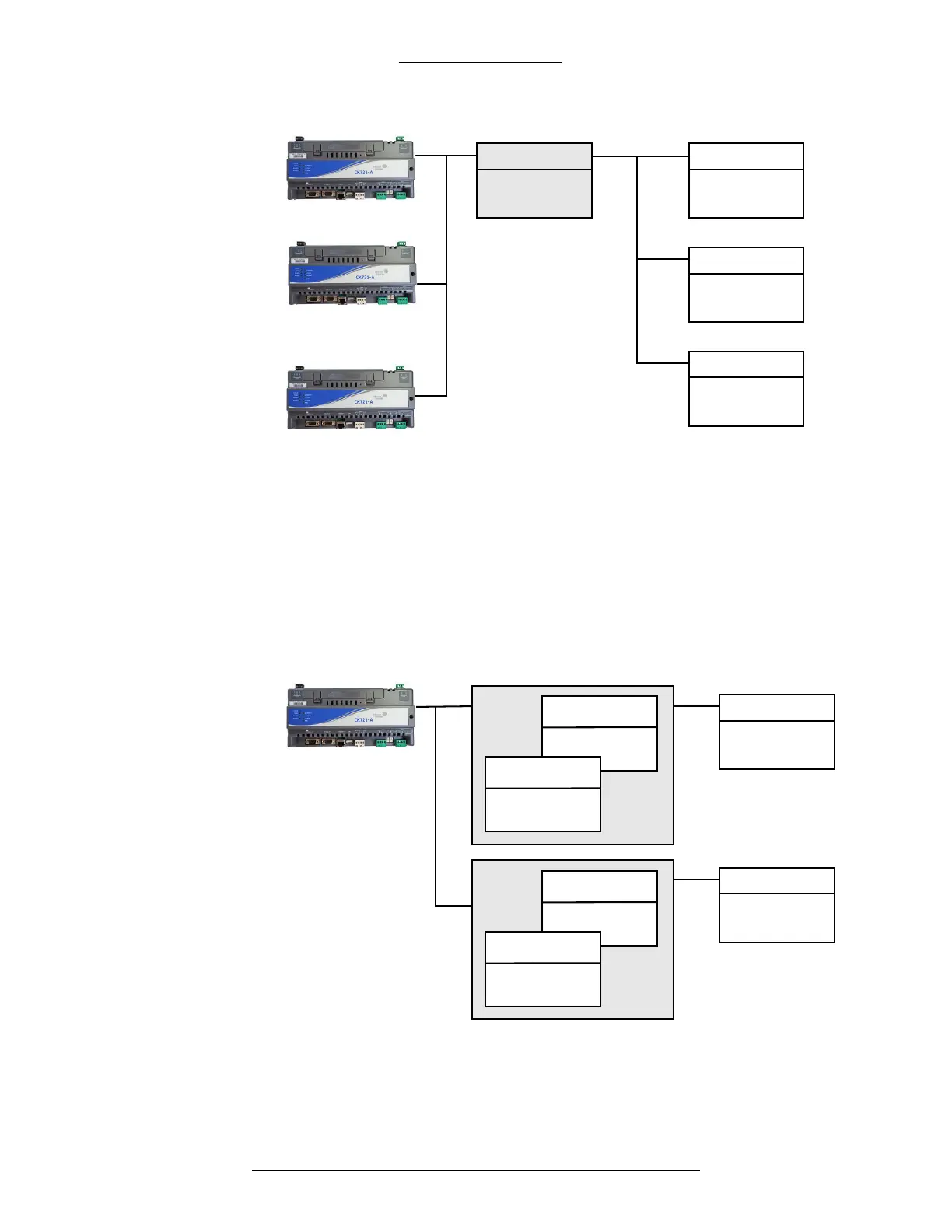

Figure 4-6: Primary and Backup KONE IP Controllers
Figure 4-5: KONE KIC Controller with Multiple Elevator Gr
oups
and Multiple CK721-A Controllers
Pair(s) of KONE IP Controllers, Each Handling One Elevator Gr
oup
In
this scenario, one KONE IP controller of
each pair becomes a primary controller,
while the other becomes a backup controller. Both KONE IP controllers share the
same floor layout. The elevator group address is set to 1.
KONE IP Controller 1
(Primary)
IP Address 1
CK721-A: TCP Port 1
KONE IP Controller 2
(Backup)
IP Address 2
KONE IP Controller 3
(Primary)
IP Address 3
KONE IP Controller 4
(Backup)
IP Address 4
Elevator Group 1
TCP Port 1
Elevator Group 1
TCP Port 1
CK721-A User Interface CK721-A Installation and Operation
4-46 24-10349-8 Rev. B
This document contains confidential and proprietary information of Johnson Controls, Inc.
© 2012 Johnson Controls, Inc.
KONE KIC
IP Address 1
Elevator Group 0
TCP Port 1
Elevator Group 2
TCP Port 2
Elevator Group 4
TCP Port 3
CK721-A: TCP Port 1
CK721-A: TCP Port3
CK721-A: TCP Port 2
Note: KONE IP Controllers tend to have even
numbered elevator groups: 0, 2, 4, …, 32.
