CK721-A Installation and Operation CK721-A User Interface
24-10349-8 Rev. B 4-57
This document contains confidential and proprietary information of Johnson Controls, Inc.
© 2012 Johnson Controls, Inc.

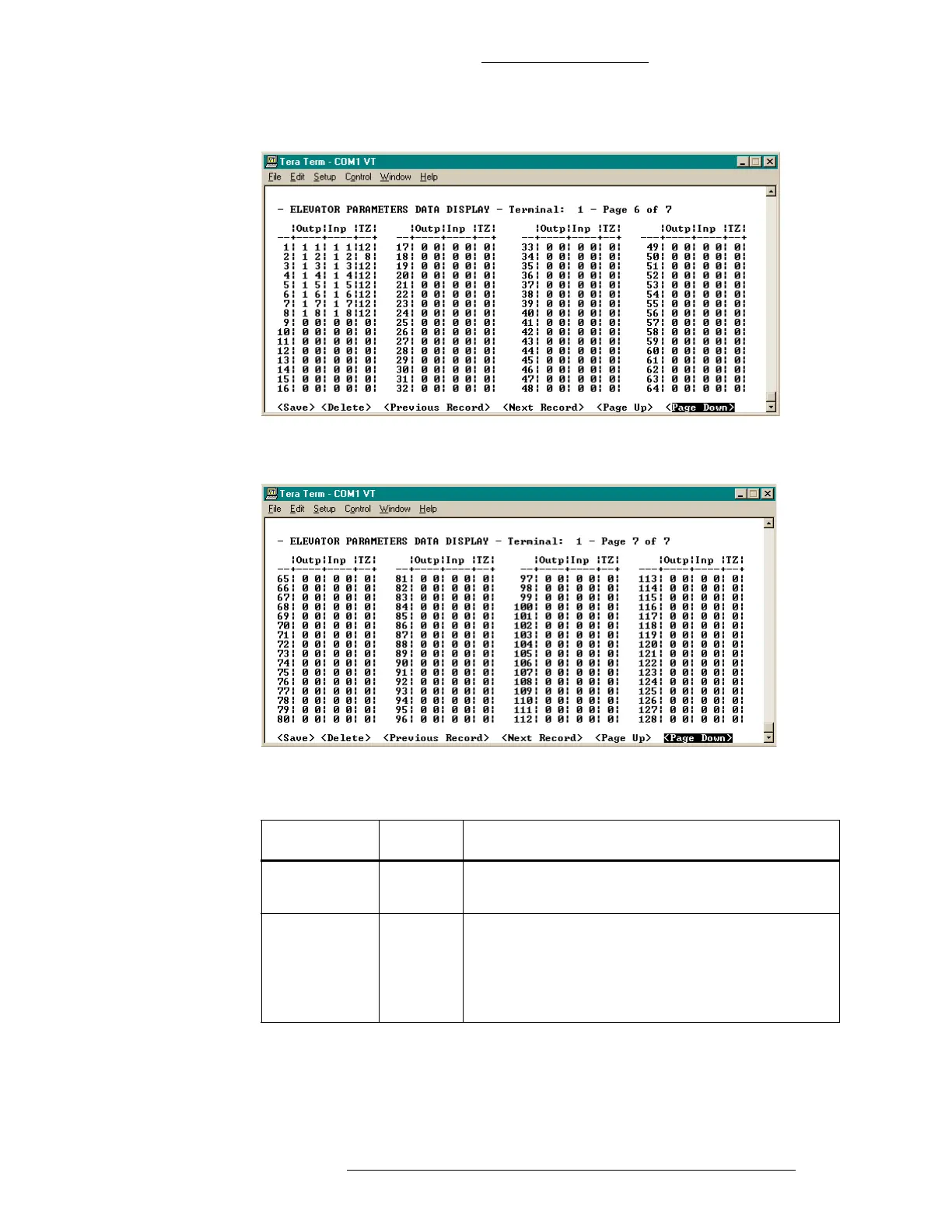

Elevator or Cabinet Terminal Screen - Page 6
Elevator or Cabinet Terminal Screen - Page 7
Table 4-14: Elevator or Cabinet Terminal Screen, Pages 6 and 7
Field Type Description
Floor Index User Def. A numeric value that identifies a floor’s location in
the
array of 128 possible floors.
Outp User Def. A read-only field that identifies the output point
associated
with a floor or door. A value of 0 0
indicates no output point is assigned. If an output
point is assigned, it is identified by terminal number
and point number.
