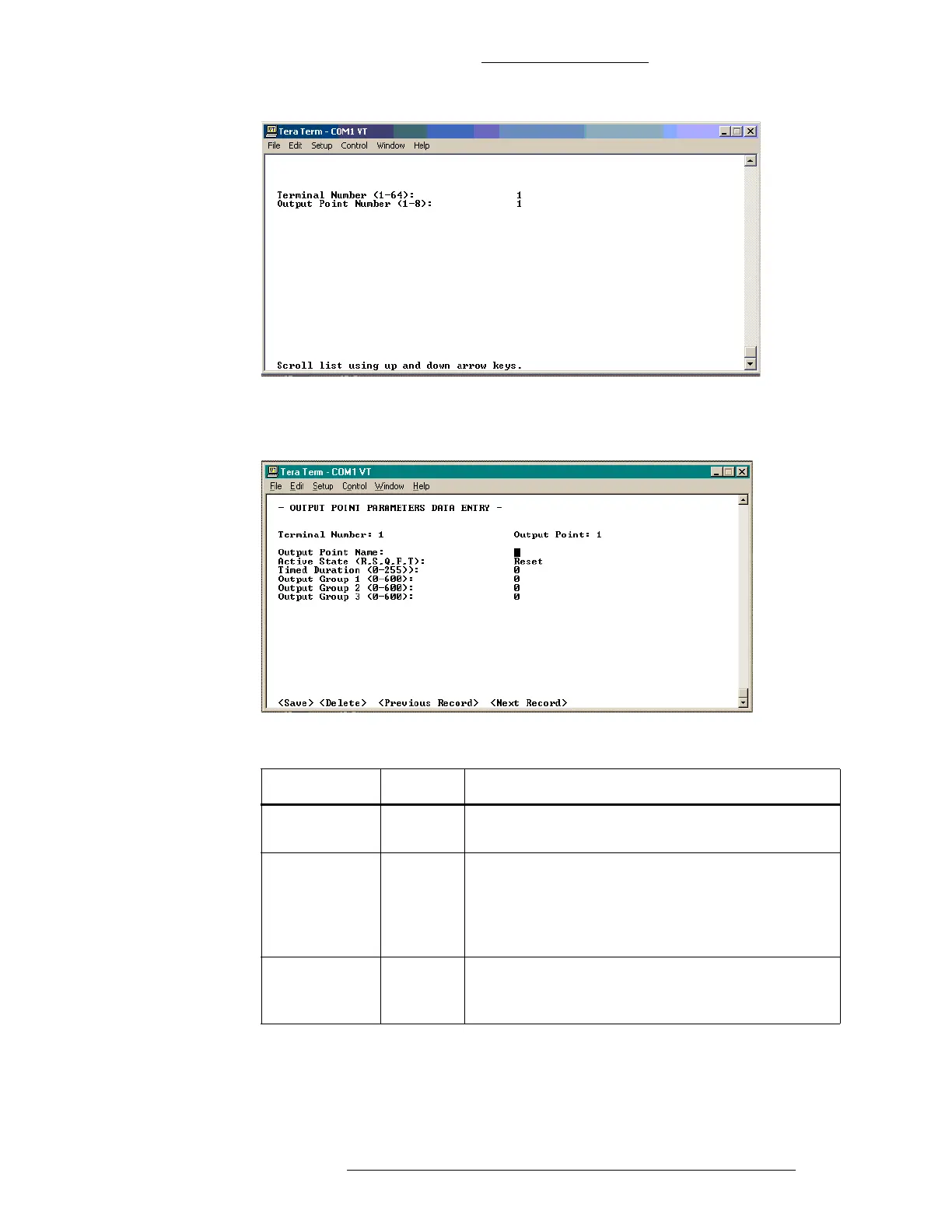

The output record definition screen appears as shown here. Each item is described in
Table 4-15.
Table 4-15: Output Screen, 1 Page Only
Field Type Description
Output Point
Name
User Def. Enter up to 25 alphanumeric characters for a
de
scriptive output point name.
Active State Toggle Choices are: R (Reset)
S (Set)
Q (Quick Flash)
F (Slow Flash)
T (Timed)
Timed Duration User Def. Values are between 0 and 255 seconds. If the active
st
at
e is set as timed, this value represents the
duration for which the point will be set.
