Figure 3-2: S300-XS
Figure 3-3: S300-XXS
S300 Expansion Enclosures CK721-A Installation and Operation
3-4 24-10349-8 Rev. B
This document contains confidential and proprietary information of Johnson Controls, Inc.
© 2012 Johnson Controls, Inc.

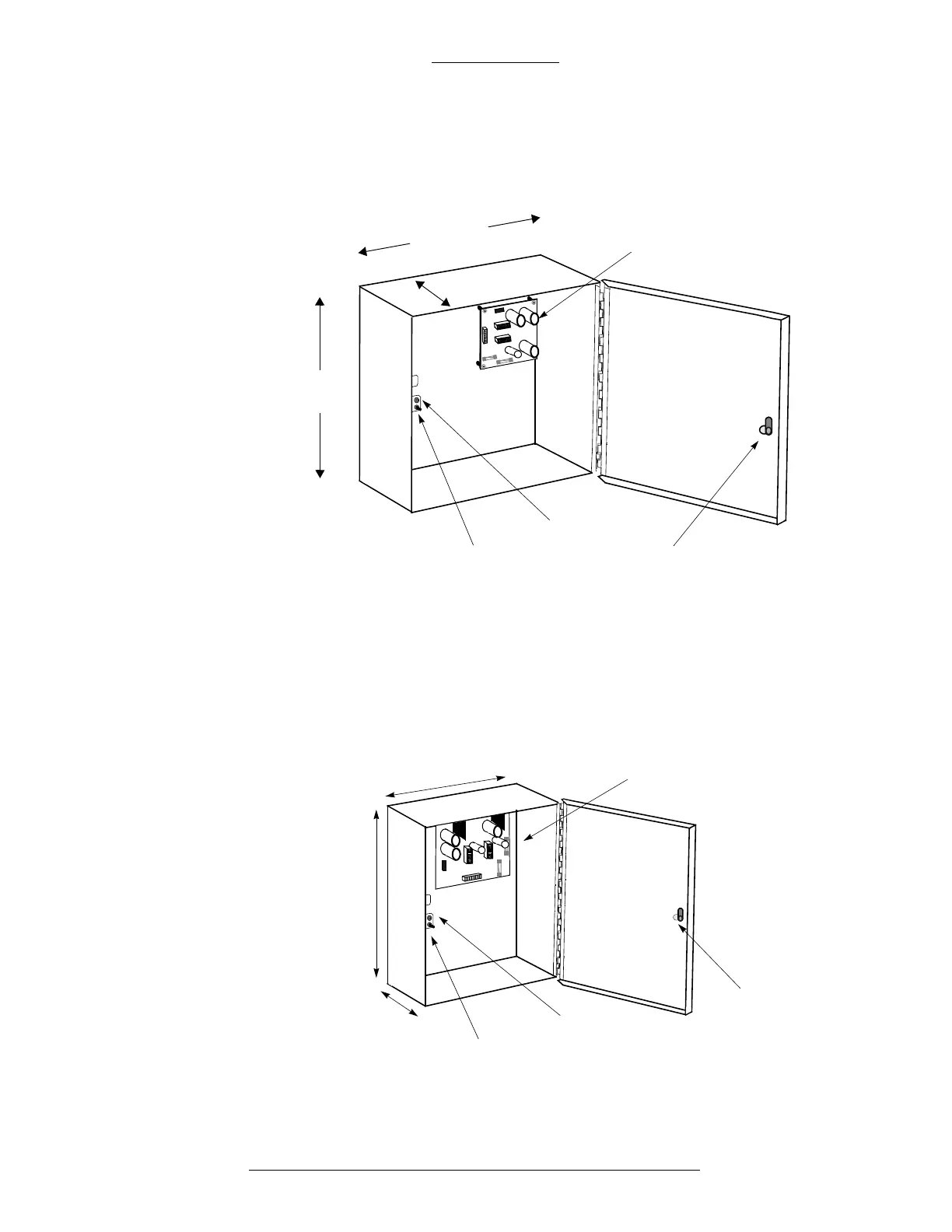

S300-XS (S300 Expansion Enclosure, Small)
S300-XS contains a power supply, a tamper switch, a power indicator light, and a
lock.
Power
Indicator
Light
16 inches
(41 cm)
13.5 inches
(34 cm)
5.5 inches
(14 cm)
Power Supply
Lock
Tamper Switch
S300-XXS (S300 Expansion Enclosure, Extra Small)
S300-XXS contains a power supply, a tamper switch, a power indicator light, and a
lock.
5.5 inches
(14 cm)
13 inches
(33 cm)
9 inches
(23 cm)
Tamper Switch
Power Indicator
Power Supply
Lock
