CK721-A User Interface CK721-A Installation and Operation
4-58 24-10349-8 Rev. B
This document contains confidential and proprietary information of Johnson Controls, Inc.
© 2012 Johnson Controls, Inc.
NOTE
The elevator or cabinet configuration cannot be edited from these screens.
These values are set using the P2000 system configuration screens.
Output
The Output screen is used to enable output points and assign individual points to
groups. To begin, select Output from the CK721-A Main menu.

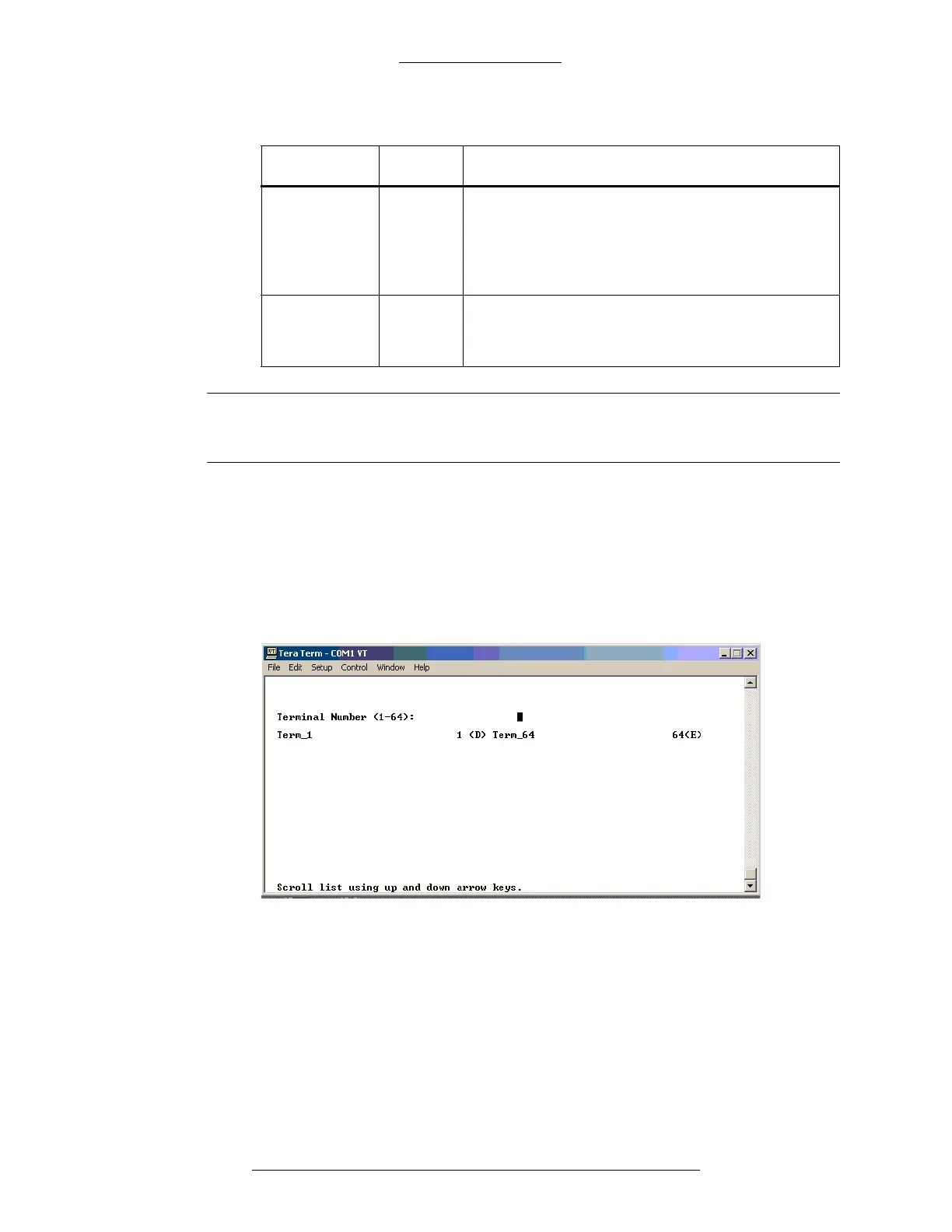

You will be prompted to
select a previously saved terminal.
After selecting a terminal, select an output point number. If the output you select
already exists, the system places you into edit mode. If the output record does not
exist, the CK721-A assumes you want to create a new record. Any output records
you have defined will appear listed here.
Inp User Def. A read-only field that identifies the input point
associated with a floor or door. A value of 0 0
indicates no input point assigned. If an input point is
assigned, it is identified by terminal number and
point number.
TZ User Def. A read-only field that identifies the 
timezone associated with a floor or door. A value of
0 indicates
no timezone is
assigned.
Table 4-14: Elevator or Cabinet Terminal Screen, Pages 6 and 7
Field Type Description
