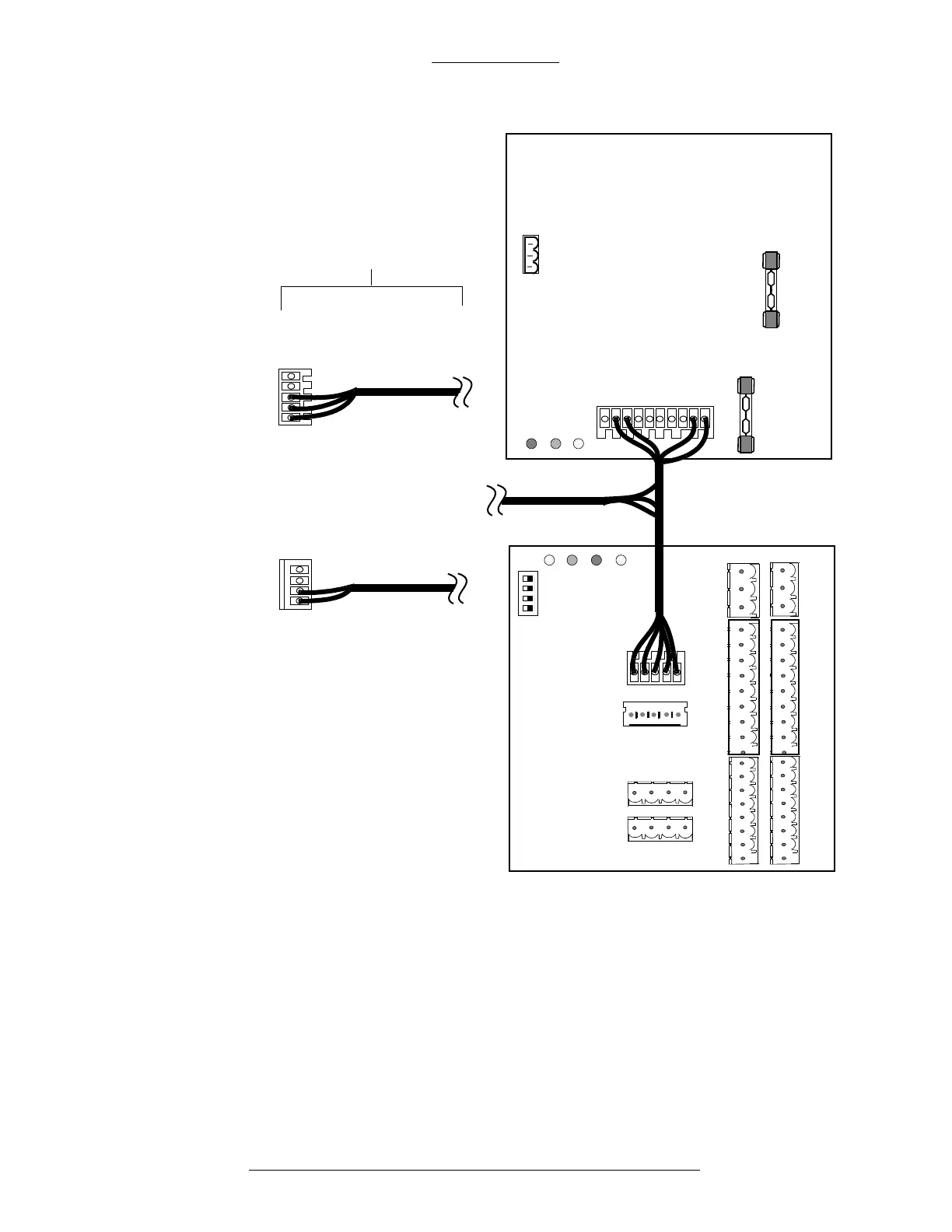

Figure 3-14: Cable Assembly for Enclosure to Enclosure Connection
10
1
15
1
5
Option 1:
Power Supply PCBA
The cable can be spliced
to extend the length. Use
listed 18 AWG, 3-conductor
(J4)
To internal terminal
(J7 for reader
terminals)
(J2 or J3 for I/O
terminals)
Do not discard this segment!
Use it to connect to the next
terminal in the chain.
J4
shielded cable.
Option 2:
J5
The cable can be spliced
to extend the length. Use
listed 18 AWG, 3-conductor
shielded cable.
To or from other cabinets
To or from CK721-A
S300 Expansion Enclosures CK721-A Installation and Operation
3-14 24-10349-8 Rev. B
This document contains confidential and proprietary information of Johnson Controls, Inc.
© 2012 Johnson Controls, Inc.
