103
12 Configuration

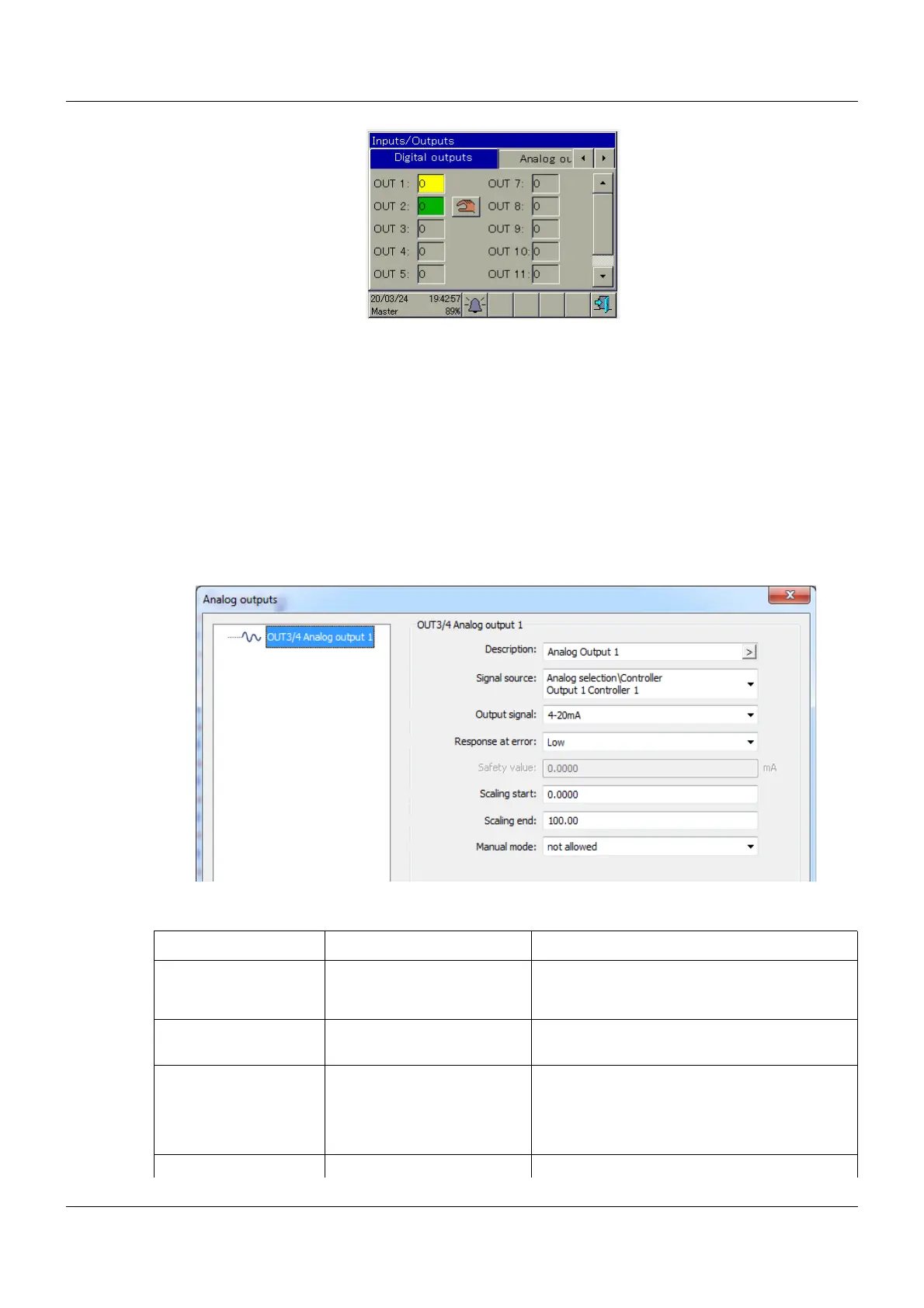

In the Device info menu, a hand symbol now appears by the switching output. If you tap the
hand symbol, the Out 2 relay is actuated.
See Chapter 9.3.1 "Digital and analog inputs, digital and analog outputs, external digital, and
external analog inputs", page 54
12.8 Analog outputs
A maximum of three analog outputs can be configured as current or voltage outputs (standard
signal) and are freely scalable.
Setup dialog box
Parameters
Parameter Selection/settings Description
Description Analog Output 1 (15 characters) of editable text
for the signal issued via the analog output (for
example, a math function result).
Signal source No selection -
Analog selector This signal is issued via the analog output.
Output signal 0-10 V
0-20 mA
4-20 mA
2-10 V
Response at error Low Lower standard-signal limit is issued
