13.10 Modbus frames for writing
This function is used to compile up to eight Modbus frames for writing process values to exter-
nal devices (via interface) individually for each opposite end. The process values (analog, in-
teger, and digital signals, and text) are written to the frames by the system and are available to
external devices. Each frame can be used to configure up to 64 entries (process values), which
are then grouped and transmitted in a Modbus telegram.

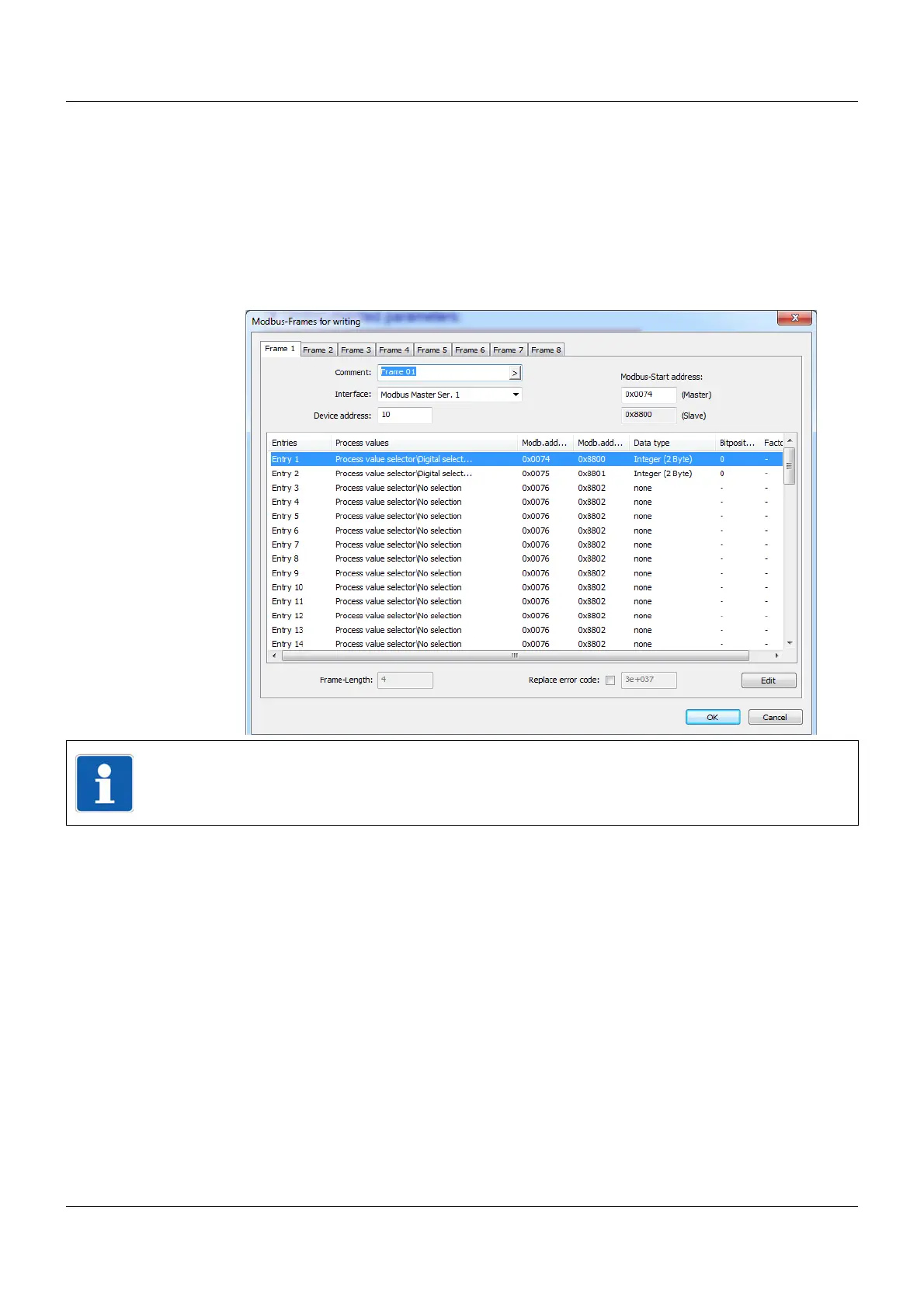

Setup dialog box
NOTE!
The configuration and use of the Modbus frames for writing are described in the Modbus in-
terface description B 703571.2.0.
