135
12 Configuration
12.14 Digital controller signals
A maximum of 8 unrelated links with up to four signals each (digital selector) can be configured.
Use the C
OPY button to transfer the settings of the selected link to another link and to then make
changes there as desired.
The result of a link is available in the digital selector.

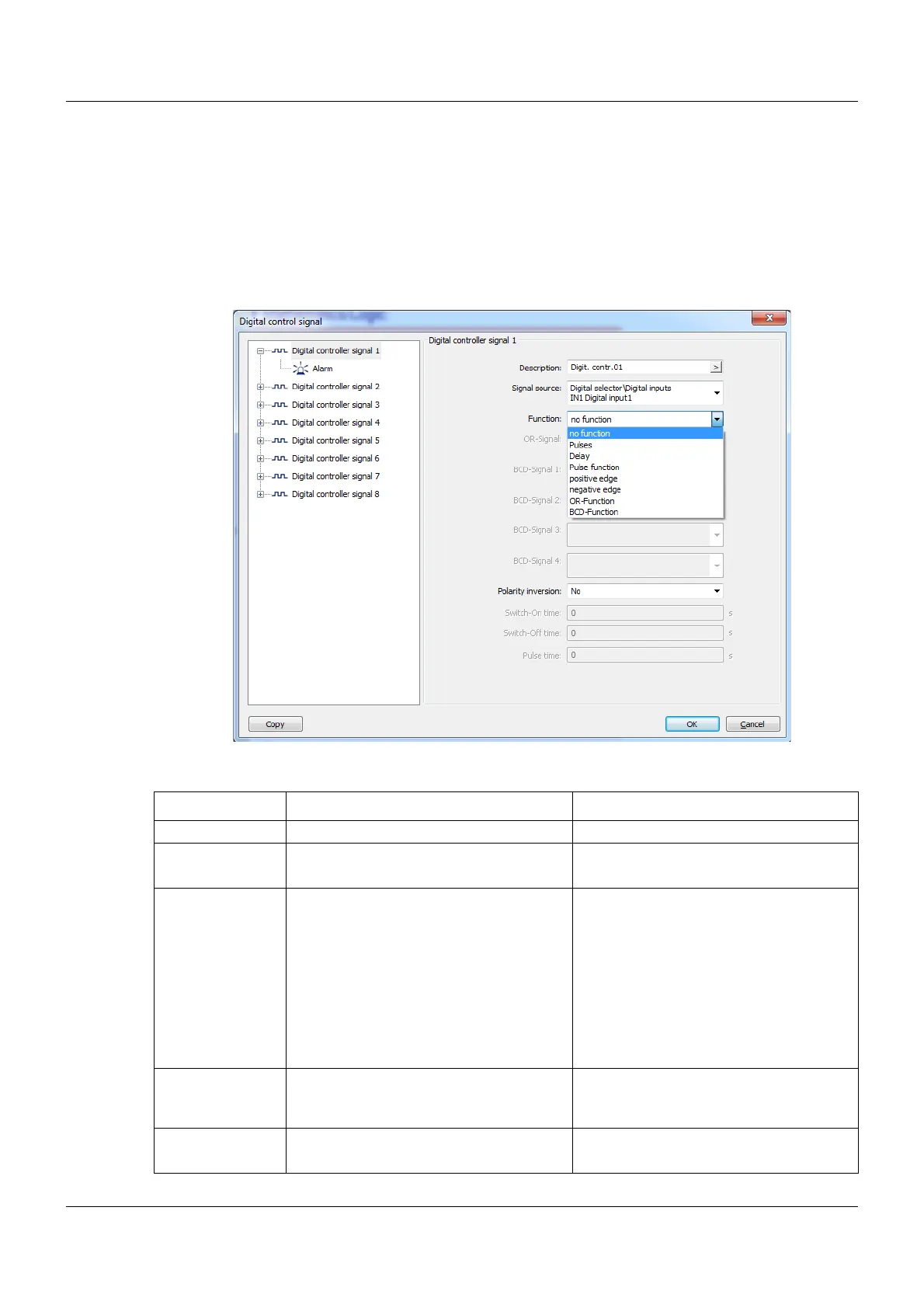

Setup dialog box
Parameters
Parameter Selection/settings Description
Description Digit. contr. 01 (15 characters) of editable text
Signal source No selection Any digital value that should be linked
with a function
Digital selector
Function No function -
Pulses
Delay
Pulse function
Positive edge
Negative edge
OR function
BCD function
OR-Signal No selection Any digital value that should be linked to
a signal source above using an OR
operator
Digital selector
BCD-Signal 1 No selection 1st BCD digital value
Digital selector
