12.6.6 Output level monitoring
Output level monitoring monitors the output level in the corrected state. The output level must
be within a definable range around a mean output level. If it is not, an alarm is issued.
The alarm signal is available from the digital selector and can be processed further at any time.

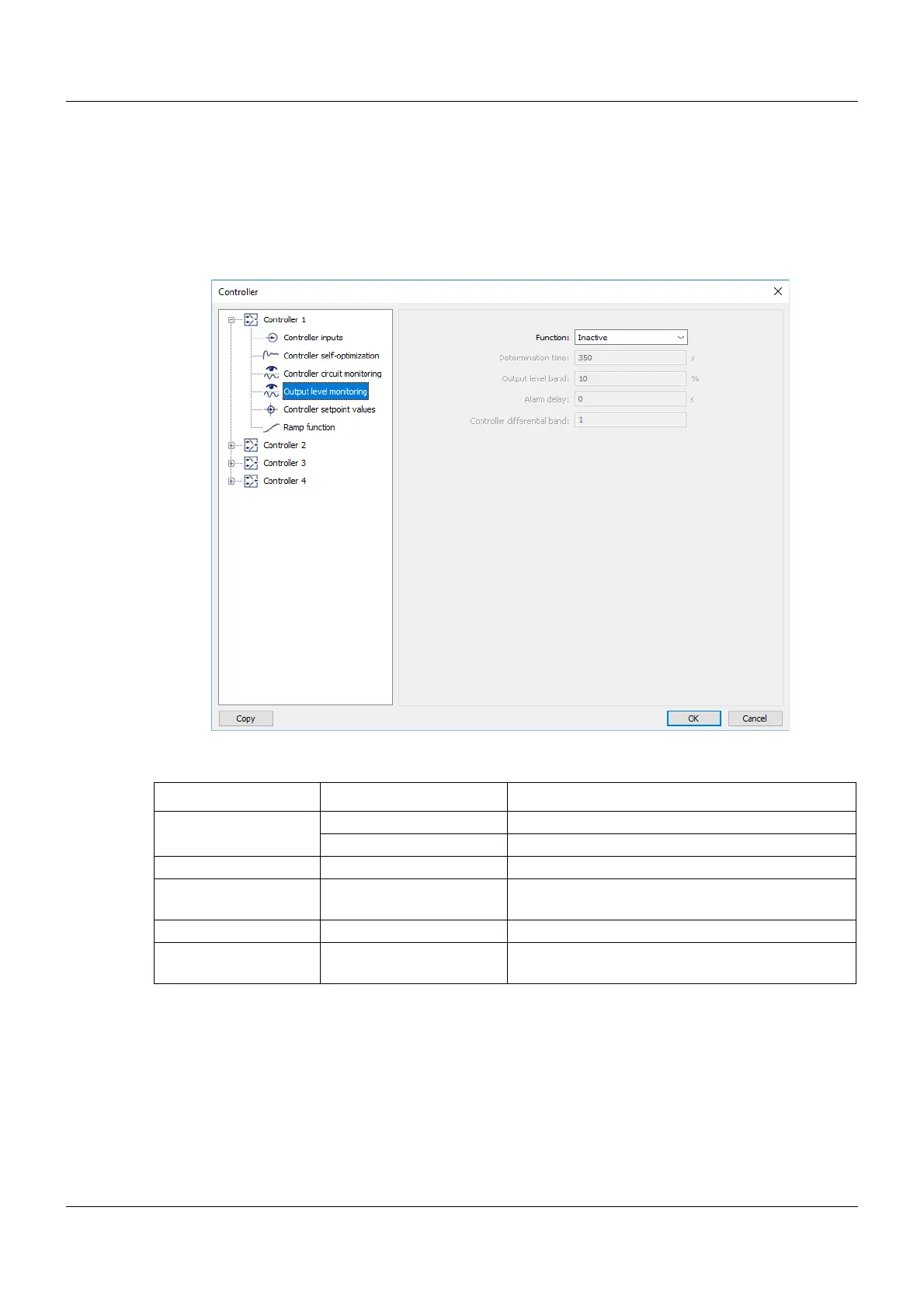

Setup dialog box
Parameters
Parameter Selection/settings Description
Locking Inactive Output level monitoring generally not permitted
Active Output level monitoring generally permitted
Determination time 0 s to 350 s to 9999 s Calculation time for the mean output level
Output level band 0 % to 10 % to 100 % Monitored output level band (admissible range
around the mean output level)
Alarm delay 0 s to 9999 s Delay time for alarm triggering
Control differential
band
0 to 1 to 1999 Control differential band (admissible range
around the actual value in corrected state)
