12 Configuration
11
4
12.10.4
Operation loop
Screens are set to appear in t
he operating loop using this function.

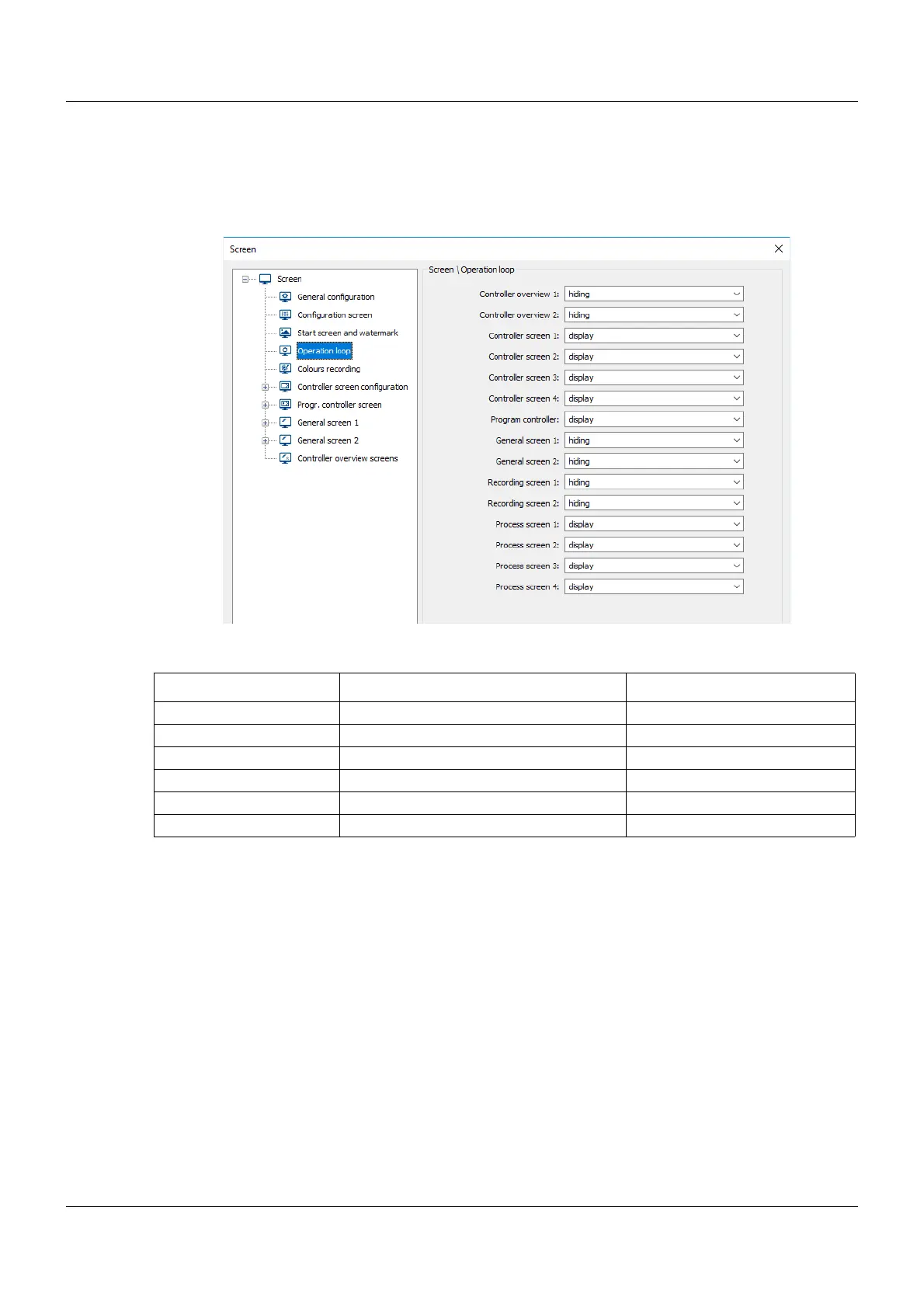

Setup dialog box
Parameters (only setup
)
Parameter
Selection/settings
Description
Controller screen 1
to 4
Display/do not display
Controller ov
erview
Display/d
o not display
Program controller
Display/do not display
General sc
reen 1
Display/do not
display
General sc
reen 2
Display/do not
display
Process scree
n 1 to 4
Display
/do not display
113
115
Table of Contents
Default Chapter
3
Table of Contents
3
1 Introduction
9
Safety Information
9
Warning Symbols
9
Note Signs
9
Display Types
10
Description
11
Block Diagram
12
2 Identifying the Device Version
13
Order Details
13
Scope of Delivery
15
General Accessories
15
Accessories
16
Nameplate
17
3 Mounting
19
Mounting Site and Climatic Conditions
19
Electrical Data
19
Environmental Influences
19
Housing
19
Dimensions
20
Close Mounting
21
Installation in Panel Cut-Out
21
Care and Treatment of the
21
4 Electrical Connection
23
Installation Notes
23
Lines, Shielding, and Grounding
23
Electrical Safety
23
Intended Use, Misuse
24
Galvanic Isolation
25
Connection Diagram
26
Connection Elements
26
Analog Inputs
27
Probes for Air
28
Probes for Water and Oil
29
Probes for Water, Oil, and Air
29
Analog Outputs
30
Digital Inputs
30
Digital Outputs
30
Digital Outputs
32
Voltage Supply (According to Nameplate)
32
Interfaces
34
5 Operation
37
Display and Operating Concept
37
Device Menu
38
Alarm and Event List
38
Function Buttons, History, and Channel Changeover
38
Screens in the Operating Loop
39
Controller Screen 1 to 4 and Controller Overview Screens 1, 2
39
Program Controller
41
General Screens 1, 2
42
Recording View 1, 2
43
Process Screen 1 to 4
43
6 Login
45
Login
46
Logout
46
Changing the Password
46
7 User Level (Log-In)
47
Example 4 Transferring Controller Setpoint Values to the User Level
47
8 Program Administration
49
Entering Program Profiles
49
On the Device
49
About the Setup Program
50
Section Run Time
51
Setpoint Value 1 to 4
51
Operating Contacts
51
Tolerance Band
51
Number of Repetitions
52
Start Section
52
Parameter Block
52
9 Device Info
53
General Information
53
Version, Motherboard, Ethernet Information
53
Slots
53
Inputs/Outputs
54
Digital and Analog Inputs, Digital and Analog Outputs, External Digital, and External Analog Inputs
54
Functions
55
Math, Logic Signal, Limit Value Outputs
55
Timer Signal, Digital Control Signals, Operating Contacts, Controller, Analog Flag, Digital Flag
55
Ethernet
56
Profinet
56
10 Functional Level
57
General Information
57
Activating the Functional Level
57
11 Parameterization
59
Date and Time
59
Daylight Saving Time
59
Controller/Parameter Blocks
60
Setpoint Values
64
Entering the Values on the Device
64
Entering the Values Using the Setup Program
65
12 Configuration
67
Analog Selector
67
Digital Selector
68
Basic Settings
72
Digital Inputs IN1 to 7
74
Analog Inputs IN8, IN9, IN10, IN11
75
Alarms
78
Controller 1 to 4
79
Controller Configuration
79
Controller Inputs
82
Controller Self-Optimization
84
Starting Autotuning (SO) on the Device
89
Control Loop Monitoring
91
Output Level Monitoring
94
Controller Setpoint Values
97
Ramp Function
99
Digital Outputs
101
Switching Digital Outputs to Logic Level 1 as a Fixed Setting
102
Switching Digital Outputs to Manual Mode
102
Analog Outputs
103
Limit Value Monitoring Function
106
Function and Hysteresis
108
Hysteresis
109
Startup Alarm Suppression
110
Acknowledging the Lock
110
Alarm
111
Screen
112
1General Configuration
112
2Configuration Screen
113
3Start Screen and Watermark
113
4Operation Loop
114
5Colors Recording
115
6Colors, Designations in Controller Screen 1 to 4
116
7Program Controller Screen
117
8General Screens 1, 2
118
9Controller Overview Screen 1, 2
119
Recording 1, 2
120
1Parameters
120
2Analog Channels
122
3Digital Channels
122
Program Controller
123
1Control Signals
126
2Extended Functions
127
3Basic Status
128
4Operation Mode Manual
129
5Response by out of Range (O-O-R)
130
6Weekly Program
131
Timer or Week-Time Switch
132
Digital Controller Signals
135
1Alarms
137
Math/Logic
138
Flags/Service
140
1Flags
140
2Service
141
External Digital Inputs
142
External Analog Inputs
143
1Alarms
144
Serial Interfaces
145
Ethernet
146
Modbus/Tcp
147
Relay Module (Accessories)
148
PROFIBUS DP (Option)
149
13 Configuration - in Setup Program Only
151
Installing the Setup Program
151
Hardware
151
Software Requirements
151
Starting the Setup Program
151
Establishing the Connection to the Device
152
Setup Data Transfer to or from the External Mass Storage Device
153
Connection Diagram
154
Country Settings
155
User List
155
User Level
156
Email
156
Web Server
156
Modbus Frames for Reading
157
Modbus Frames for Writing
158
Profinet-Rt
159
Customer-Specific Linearization
160
1Grid Points
160
2Formula
161
Process Screens 1 to 4
163
1Process Screen Editor
164
2Background
165
3Signal Types for Process Screens (Overview)
167
4General Object Features
168
5Preview Screen
169
6Transferring the Process Screen to the Device
170
14 Special Functions
171
Calibrating the Touchscreen
171
15 Online Parameters
173
Fine Adjustment
173
Ethernet (Option)
175
Date and Time
176
Screenshot
176
Deleting the Measurement-Data Memory
176
Approval of Extra Codes
177
Testing Calibration
178
Different Process Values
178
Startup Program
179
16 Error and Alarm Messages
181
Error Messages in Float Values and on the Display
181
Display of Error Messages for Binary Values
181
17 Retrofitting Optional Boards
183
Safety Information
183
Identifying the Modules
183
Installing Modules
184
Accessories
186
18 Approvals/Approval Marks
