8 Program administration
52
8.1.7 Number of repetitions
The number of repetitions from a specific start section is entered here.
8.1.8 Start section
Repetition begins from this section.

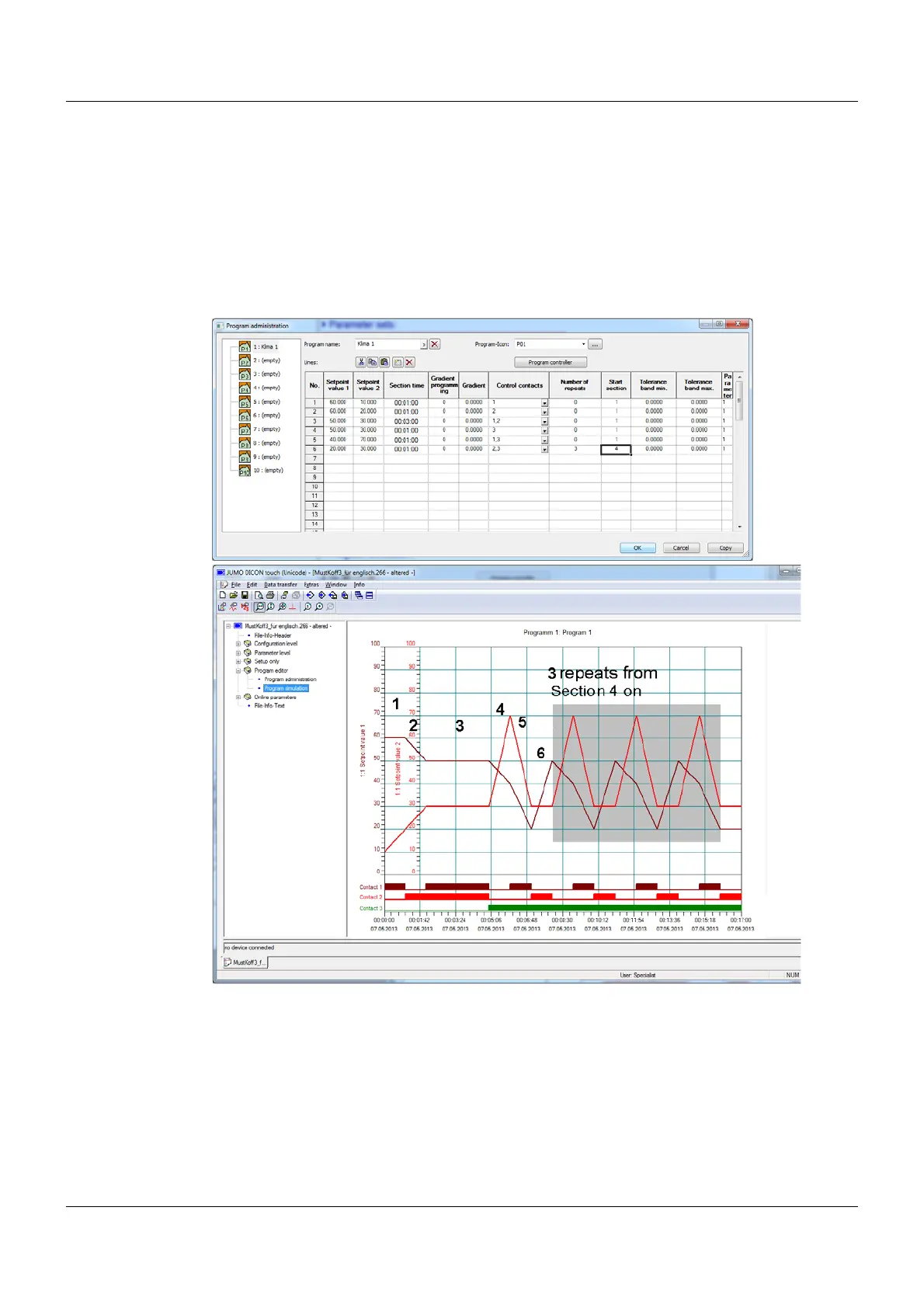

Example
8.1.9 Parameter block
For each control channel, parameter blocks 1 to 4 are available and can be switched over in
sections.
The configured parameter block relates to all controllers. Selecting a parameter block via a dig-
ital signal takes priority over selecting a parameter block in the program administration.
Ö Chapter 11.3 "Controller/parameter blocks", Page 60 and
Chapter 12.6.2 "Controller inputs", Page 82
