13 Configuration – in setup program only
154
13.3 Connection diagram

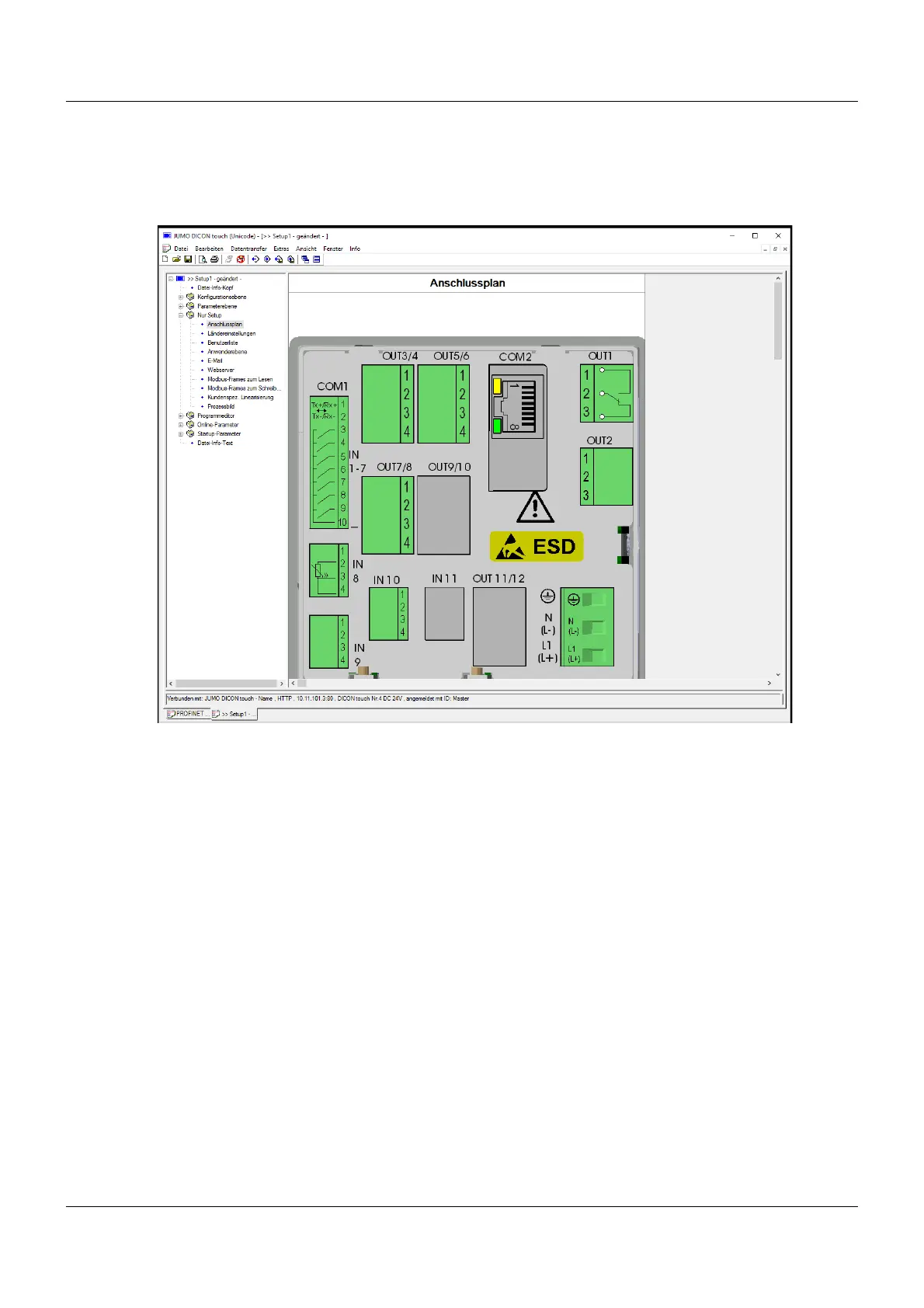

The rear side of the device is shown here with all the fitted hardware components that the setup
program has detected.
