JUMO DICON touch - Setpoint Value Configuration

11 Parameterization
64
11.4 Setpoint values
4 switchable setpoint values are assigned to a fixed-setpoint controller and can be entered on
the device or in the setup program.
The following table shows the setpoint changeover for fixed-setpoint controllers using two dig-
ital signals that can be set in Chapter 12.6.7 "Controller setpoint values", Page 97.
For program controllers
Ö Chapter 8.1 "Entering program profiles", Page 49

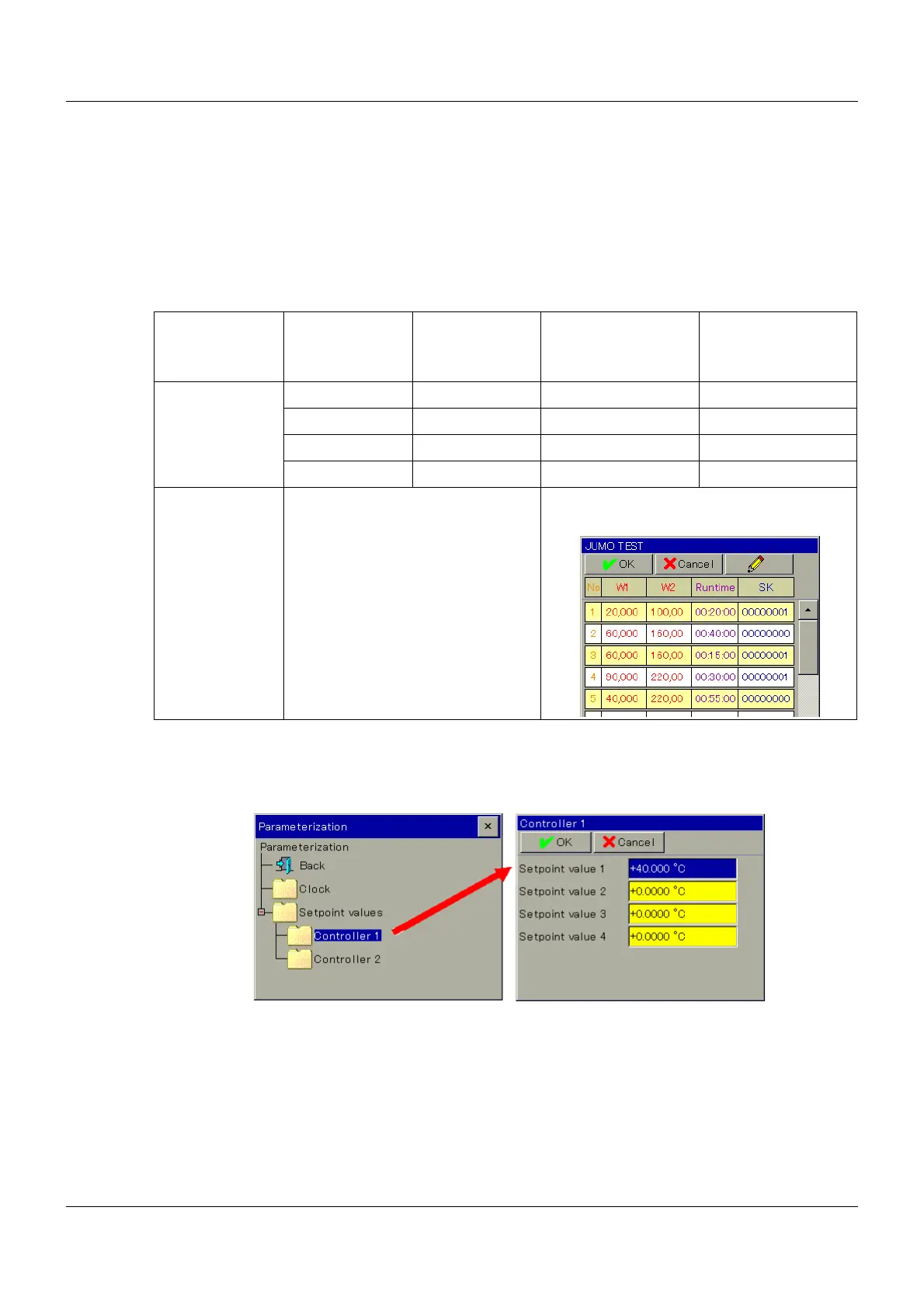

11.4.1 Entering the values on the device
The setpoint values are entered in the parameter level.
Type Signal 2 (Bit 1)
setpoint
changeover
Signal 1 (Bit 0)
setpoint
changeover
Setpoint value,
Controller 1
Setpoint value,
Controller 2
Fixed-setpoint
controller
00Setpoint 1 Setpoint 1
0 1 Setpoint value 2 Setpoint value 2
1 0 Setpoint value 3 Setpoint value 3
1 1 Setpoint value 4 Setpoint value 4
Program control-
ler
W1 and W2 are predefined by the program
generator
