12 Configuration
12.7 Digital outputs
Depending on how the expansion slots have been equipped, 2 fixed digital outputs called OUT1
and OUT2 and 10 additional digital outputs (OUT3/4 to OUT11/12) are available.

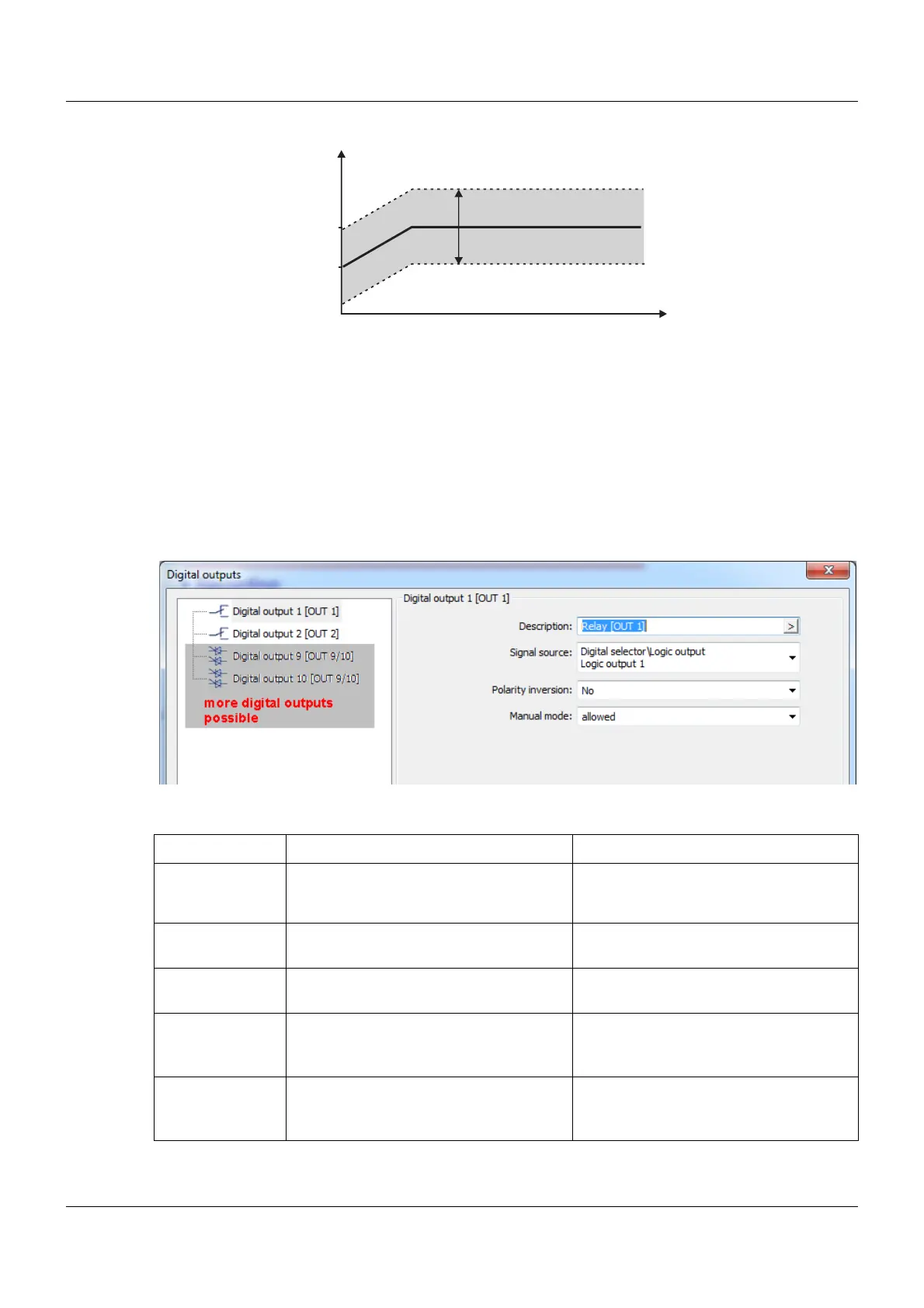

Setup dialog box
Parameters
w
t
(1)
w1
w2
(2)
(1) Tolerance band
(2) Ramp
Parameter Selection/settings Description
Description Relay [OUT 1] (15 characters) editable text
For example, for the signal that is issued
via the digital output.
Signal source Digital selector/controller This signal is issued at the digital output.
1st output, Controller 1
Polarity inversion No Switching behavior remains unchanged
Yes Inverts the switching behavior
Manual mode Not allowed
Allowed Digital output can be edited in manual
mode.
Description Relay [OUT 2] Signal designation issued via the digital
output.
Inactive = output inactive
