10 Functional level
10.1 General information
10.1.1 Activating the functional level

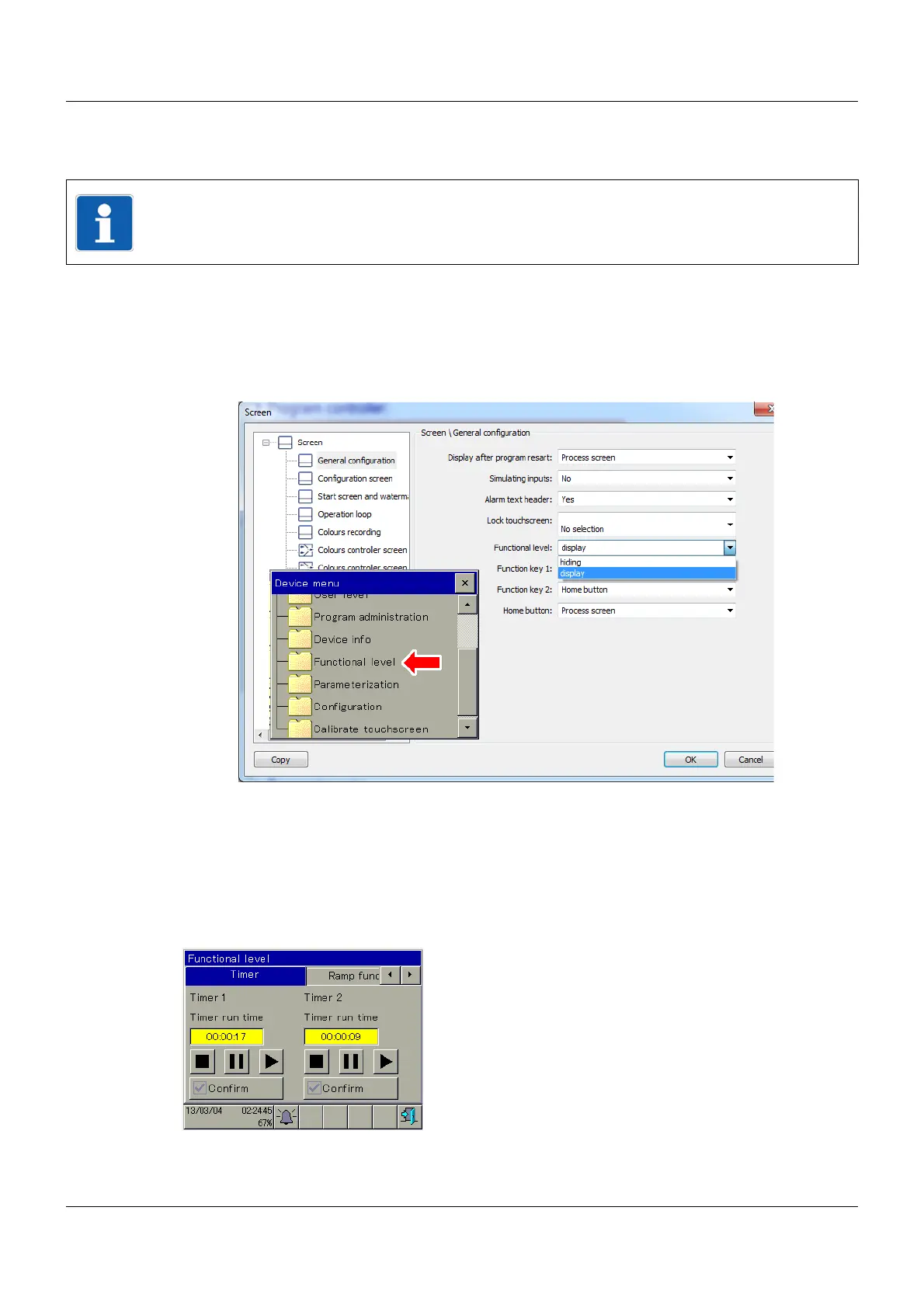

The functional level is activated in the screen menu and subsequently appears in the device
menu.
Ö Chapter 12.10 "Screen", Page 112
The functional level is used primarily for testing and diagnostic purposes. Analog and binary
values of the outputs can be controlled manually here. This may be useful, for instance, for
checking an individual piece of equipment in a plant. For maintenance and repair works, for ex-
ample, the timer, ramp function, and limit value monitoring function can be operated and switch-
ing operations can be acknowledged.
Example for the timer
NOTE!
The functional level is hidden per default and must be activated using the setup program.
