JUMO DICON touch User Manual

4 Electrical connection
30

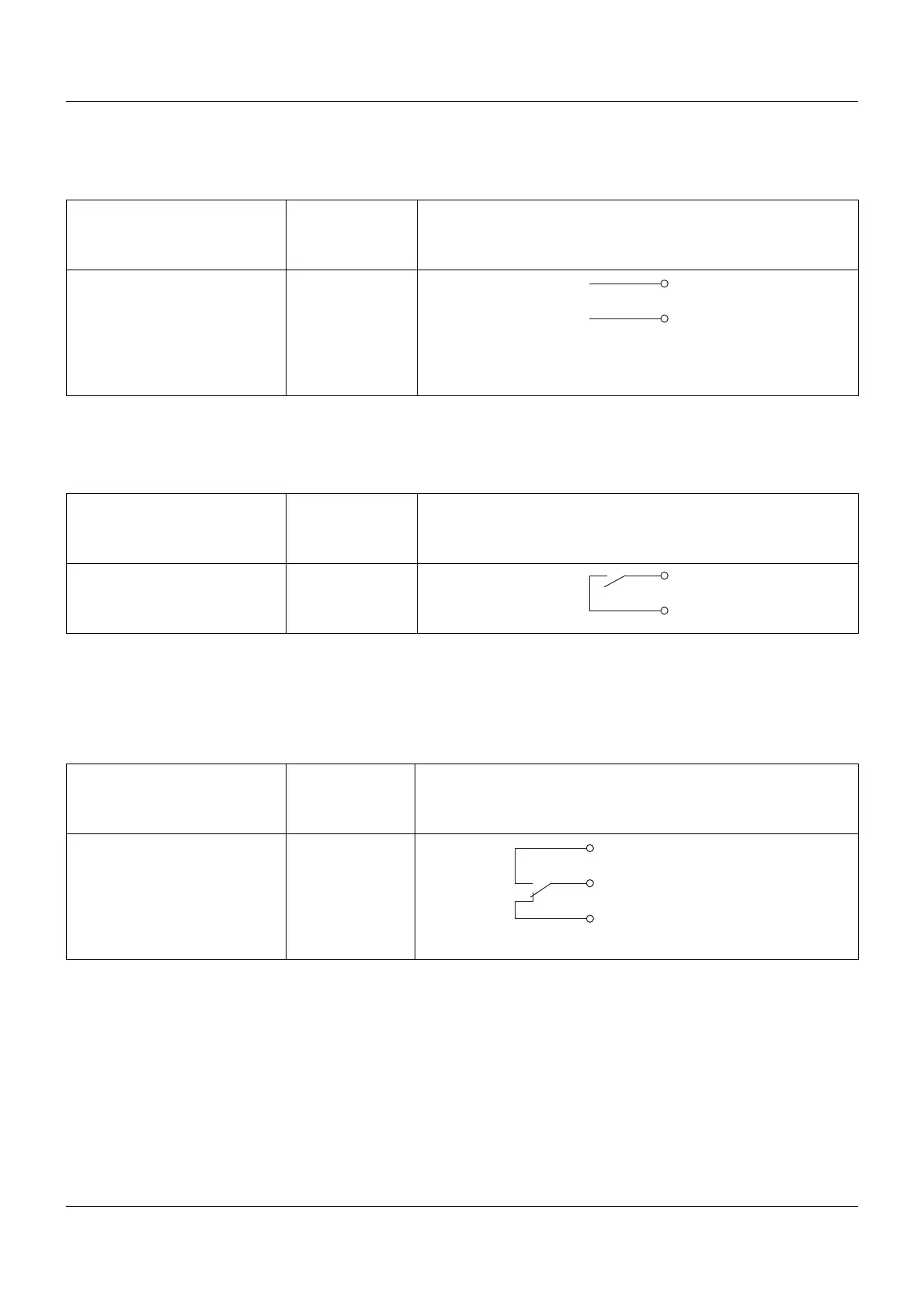

4.3.6 Analog outputs
Output OUT 3/4 to 11/12 can be extended by 1 analog output using optional boards
4.3.7 Digital inputs
Input IN1 to 7 as a standard feature (cannot be extended)
4.3.8 Digital outputs
OUT1 and OUT2 as a standard feature
The controller is equipped with 2 relay outputs (changeover contacts) as a standard feature.
Connection (Connection ele-
ment)
Input
Symbol and terminal designation
1 analog output
DC0/2to10V or DC0/
4to20mA
(configurable)
(8) OUT3/4
(9) OUT5/6
(10) OUT7/8
(11) OUT9/10
(12) OUT11/12
1
2
+
-
x
I
x
U
,
Connection (Connection ele-
ment)
Input
Symbol and terminal designation
Digital input, potential-free
contact
as a standard feature
(15) IN1 to 7 3, 4, 5, 6, 7, 8, 9
10
Connection (Connection
element)
Output
Symbol and terminal designation
Relay output (changeover
contact)
(6) OUT2
(7) OUT1
1
2
3
