3 Mounting
20

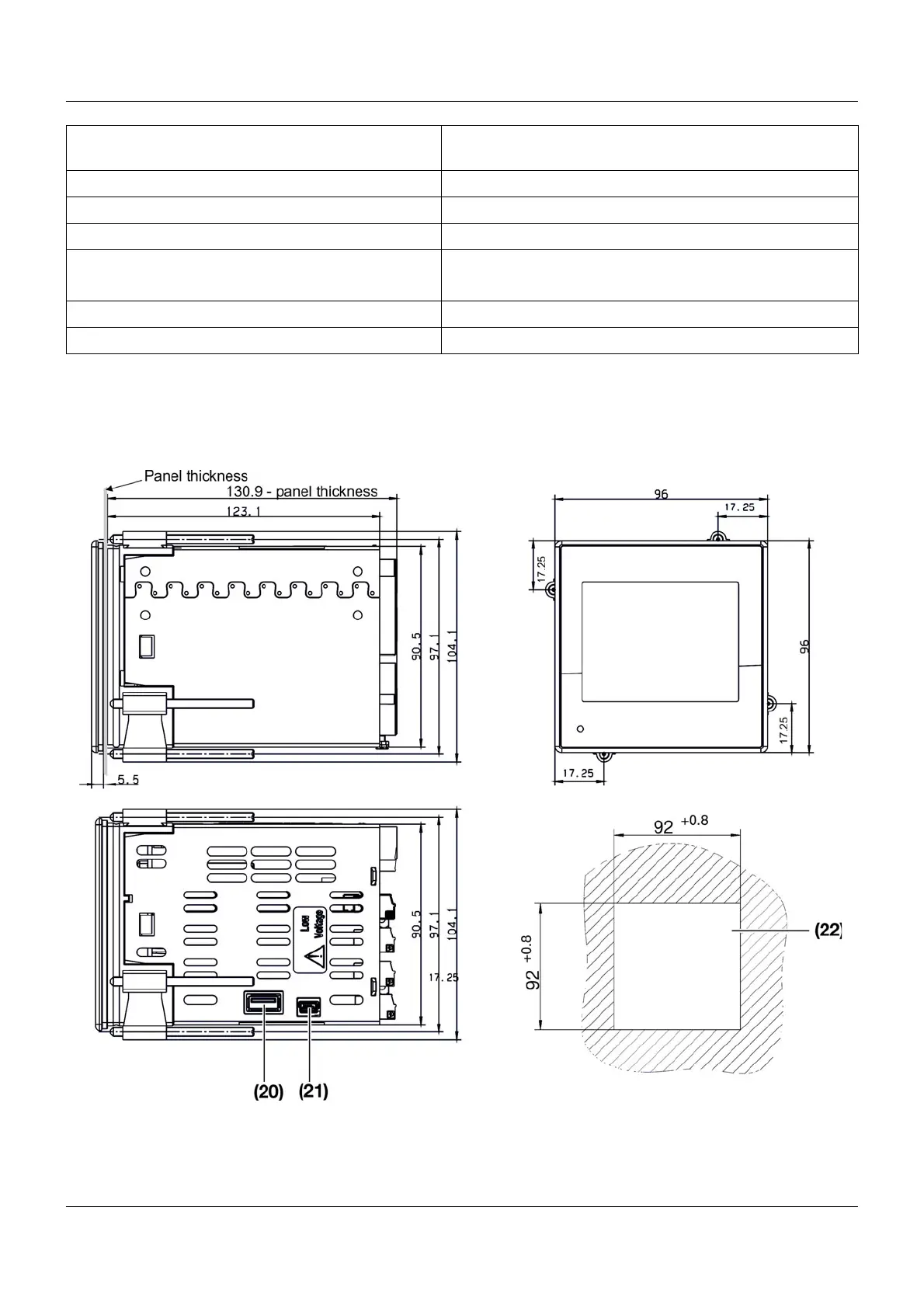

3.2 Dimensions
Close mounting Spacing between the panel cut-outs, min. 35 mm horizon-
tally and min. 80 mm vertically
Panel thickness Max. 5 mm
Mounting depth Max. 130 mm
Fastening 4 mounting elements
Operating position
(including the viewing angle of the TFT color screen)
Any
Horizontal ±65°, vertical +40 to -65°
Protection type Front IP66, rear IP20, according to DIN EN 60529
Weight (fully fitted) Approx. 1000 g
(20) USB host interface (21) USB device interface for setup
(22) Panel cut-out
